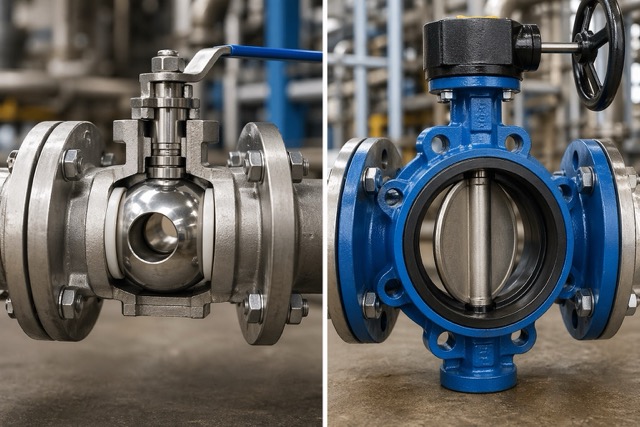

Ball Valve vs Butterfly Valve: Detailed Comparison & Selection Guide

Ball valves and butterfly valves are the two most popular quarter-turn valves in industrial piping. Both close in 90 degrees. Both operate faster than gate valves. Both are compact, reliable, and widely available.

But they are not interchangeable. The short answer: ball valves give you bubble-tight sealing and unobstructed flow — but cost and weight explode above 6 inches. Butterfly valves save 30–50% in cost and 70%+ in weight — but always introduce some flow restriction and have pressure limitations in standard designs.

For small pipes, high pressure, and zero-leakage applications, ball valves win. For large pipes, moderate pressure, and cost-sensitive projects, butterfly valves win. This guide shows exactly where the crossover point is for your specific application.

How They Work: The Fundamental Difference

A ball valve contains a solid ball with a bore (hole) drilled through its center. When the ball is rotated so the bore aligns with the pipeline, fluid flows straight through the unobstructed bore. When the ball is rotated 90 degrees, the solid side of the ball faces the flow, completely blocking it. The ball rests against two soft seats (usually PTFE or reinforced PTFE) that wrap around the ball's curved surface, creating a continuous circumferential seal.

A butterfly valve contains a circular disc mounted on a shaft running through the center of the pipe. When the disc is rotated so its edge faces the flow direction (parallel to flow), fluid passes around the disc with some obstruction. When rotated 90 degrees, the disc face blocks the flow path. The disc edge seals against a resilient rubber seat (concentric design) or a metal seat (high-performance and triple offset designs).

The critical structural difference:

• Ball valve: spherical sealing surface, disc retracts fully out of the flow path when open

• Butterfly valve: disc-edge sealing surface, disc remains in the flow path even when open

This drives every practical difference between the two valve types.

Head-to-Head Comparison

When to Choose a Ball Valve

Ball valves are the right choice when:

Zero leakage is required. Ball valves provide bubble-tight shutoff because the soft seat (PTFE, RPTFE, or reinforced elastomer) wraps continuously around the ball, creating a uniform sealing force all the way around the circumference. Butterfly valves, even the highest-performance triple offset designs, may allow minor leakage under extreme conditions. For toxic fluids (H₂S, chlorine, ammonia), expensive products (pharmaceutical intermediates, specialty chemicals), or any service where even a drop of leakage is unacceptable, ball valves are the correct choice.

High pressure service. Standard floating ball valves handle Class 150 and Class 300. Trunnion-mounted ball valves handle Class 600, 900, 1500, and 2500 — including the ultra-high pressures of well-head service and gas transmission. Concentric butterfly valves top out at Class 150, and even triple offset butterfly valves typically max out at Class 900.

Frequent cycling required. Ball valves have minimal wear per cycle — the ball rotates inside the seats without significant sliding contact. Butterfly valves have the disc edge rubbing against the seat every cycle, causing gradual seat wear. For applications cycling many times per day (batch processes, automated systems), ball valves last significantly longer.

Small-diameter piping (NPS 4" and below). In small sizes, the cost, weight, and space differences between ball and butterfly valves are minimal. At NPS 2" or 3", a ball valve costs roughly the same as a butterfly valve but offers superior sealing and pressure capability. There is no reason to specify a butterfly valve in small sizes unless there is a specific project requirement.

Pipeline pigging required. Full-bore ball valves allow cleaning pigs to pass through during pipeline operations. Butterfly valves obstruct pigs and cannot be used in piggable lines. Transmission pipelines and some process pipelines require full-bore valves for pigging.

Viscous or slurry service. The unobstructed bore of a ball valve handles viscous fluids, slurries, and fluids with particulate content with minimal plugging risk. Butterfly valve discs create turbulence and potential plugging zones with viscous or particulate-laden fluids.

Typical ball valve applications: Oil and gas processing, natural gas transmission pipelines, LPG distribution, hydraulic systems, chemical plant isolation, instrument isolation (small), pigging stations, hydrogen service, and any application requiring bubble-tight shutoff at high pressure.

When to Choose a Butterfly Valve

Butterfly valves are the right choice when:

Large diameter piping (NPS 6" and above). This is where butterfly valves dominate. At NPS 8", a butterfly valve costs approximately 50% of an equivalent ball valve. At NPS 24", the butterfly valve costs 30–40% of the ball valve and weighs less than half. Above NPS 36", ball valves become impractical — the ball gets enormous, the body walls thicken proportionally, and the total cost exceeds most project budgets. For large-diameter water supply, cooling water, and utility service, butterfly valves are effectively the only viable option.

Space-constrained installations. A wafer-style butterfly valve has a face-to-face length of only 50–100mm regardless of size. A ball valve of the same size may be 200–500mm long. In congested pipe racks, valve pits, shipboard engine rooms, and mechanical rooms, this space saving is critical.

Flow regulation (throttling) applications. Butterfly valves can modulate flow smoothly by rotating the disc through intermediate positions. Ball valves throttle poorly — the edges of the bore create severe cavitation at partial openings, damaging the seats and causing noise. For any control valve application (flow modulation, pressure regulation), butterfly is the better quarter-turn choice.

Cost-sensitive projects. Large water distribution projects, HVAC retrofits, and cooling water systems often involve hundreds of valves. The 30–50% cost saving of butterfly valves over ball valves on a 500-valve project can fund other project scope.

Moderate pressure service (below Class 300). Municipal water supply, HVAC, fire protection, cooling water, and general industrial service below 50 bar — butterfly valves handle these easily and cost-effectively.

Frequent isolation but no strict leakage requirement. For utility isolation where some minor leakage past the valve is acceptable (drain headers, fire main sections, HVAC circuit isolation), the cost and space advantages of butterfly valves are compelling.

Typical butterfly valve applications: Municipal water supply and distribution, wastewater treatment, HVAC systems, cooling water circuits, fire protection, large-diameter process water, power plant cooling water, marine cooling water systems, and most large-diameter moderate-pressure applications.

Cost and Size Crossover

Here is where the decision gets clear:

The general rule of thumb: Below NPS 4", specify ball valves unless there is a specific reason to use butterfly. Above NPS 6", specify butterfly valves unless there is a specific reason to use ball (pigging, bubble-tight shutoff at high pressure, cyclic service). Between NPS 4"–6", the choice depends on sealing requirements and budget.

Three Types of Ball Valves

It's worth distinguishing ball valve sub-types, as they have different capabilities:

Floating ball valve — the ball is not fixed to the stem; pressure pushes the ball against the downstream seat, creating the seal. Simple, cost-effective, used for NPS 1/2" to NPS 8" at Class 150–600.

Trunnion-mounted ball valve — the ball is supported by trunnions (pivot pins) at top and bottom, with spring-loaded seats that press against the ball. Used for larger sizes (NPS 4" to NPS 48") and higher pressures (Class 150 to Class 2500). Standard for transmission pipeline and high-pressure oil and gas service.

Top-entry ball valve — the body is cast as a single piece, and the ball is inserted from the top. Allows in-line maintenance without removing the valve from the pipeline. Used for critical service where minimizing shutdown time matters.

Three Types of Butterfly Valves (Recap)

(Covered in detail in our butterfly vs gate valve post — summarized here for comparison)

Concentric butterfly — resilient seat, Class 150 max, temperature up to 120°C. For water, HVAC, low-pressure industrial.

Double offset butterfly — cam-action disc, Class 300 max, higher pressure and temperature capability. For moderate industrial service.

Triple offset butterfly — metal-to-metal cone seat, Class 600–900 capability, temperature up to 400°C+. Competes with ball valves in high-pressure process service.

For applications previously considered ball-valve-only (Class 600+ refinery service), triple offset butterfly valves now offer comparable sealing performance at 30–50% lower weight and cost — especially valuable in large sizes.

Quick Decision Guide

How to Decide: 5 Questions

1. What is the pipe size? Below NPS 4" → ball. Above NPS 8" → butterfly. NPS 4"–8" → depends on other factors.

2. What is the pressure class? Class 150 → either works, butterfly cheaper. Class 300+ → ball or triple offset butterfly. Class 600+ → ball or triple offset butterfly; concentric butterfly not suitable.

3. Is bubble-tight shutoff required? Yes → ball. No → either works.

4. Will the valve be throttled (partial open)? Yes → butterfly. No → either works.

5. Is pigging required? Yes → ball (full-bore). No → either works.

Supply from Kasko Makine

Kasko Makine supplies both ball and butterfly valves in every size, pressure class, material, and actuation:

Ball valves: Floating, trunnion-mounted, and top-entry. NPS 1/2" to NPS 48". Class 150 to Class 2500. Carbon steel (A105, A216 WCB), stainless steel (F304L, F316L, A351 CF8M), duplex, super duplex, exotic alloys. Full bore and reduced bore. Soft-seated (PTFE, RPTFE) and metal-seated. API 6D, API 608, API 607 fire-safe.

Butterfly valves: Concentric, double offset, and triple offset. NPS 2" to NPS 80"+. Wafer, lug, and double-flanged body. Cast iron, ductile iron, carbon steel, stainless steel. Resilient and metal seats. API 609. Manual, gear, pneumatic, and electric actuated.

We also supply the pipe, flanges, fittings, fasteners, and gaskets that complete your piping system — single-source procurement from Turkey.

Need help choosing? Send us your pipe size, pressure class, temperature, fluid, and application details to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. Our technical team will recommend the most cost-effective valve for your specific requirements. We respond within 24 hours and deliver to projects across Africa, the Middle East, Central Asia, and beyond.

FAQ SCHEMA

Q: What is the main difference between a ball valve and a butterfly valve?
A: Both are quarter-turn valves, but they work differently. A ball valve uses a spherical ball with a bore through its center — when open, the bore aligns with the pipeline for unobstructed flow. A butterfly valve uses a rotating disc mounted on a central shaft — the disc stays in the flow path even when open, causing some flow restriction. Ball valves provide bubble-tight sealing and handle higher pressure; butterfly valves are more compact, lighter, and cheaper especially in large sizes.

Q: Which is better for high-pressure applications — ball or butterfly valve?
A: Ball valves are significantly better for high-pressure service. Trunnion-mounted ball valves handle pressures up to Class 2500 (420+ bar), compared to Class 150 for standard concentric butterfly valves and Class 300–900 for high-performance butterfly valves. For oil and gas pipeline service, high-pressure chemical processing, and any application above Class 300, ball valves (or triple offset butterfly as an alternative) are the correct choice.

Q: When should I use a butterfly valve instead of a ball valve?
A: Choose a butterfly valve when pipe diameter is NPS 6" or larger, pressure is below Class 300, cost and weight are priorities, space is limited, or flow throttling is required. Butterfly valves cost 30–50% less than ball valves in sizes NPS 8" and above, weigh a fraction as much, and are dramatically more compact. For municipal water, HVAC, cooling water, and large-diameter utility service, butterfly valves are the standard.

Q: Are ball valves more expensive than butterfly valves?
A: In small sizes (NPS 2" and below), ball and butterfly valves cost roughly the same. As size increases, ball valves become progressively more expensive than butterfly valves — at NPS 12", a ball valve typically costs 60–80% more; at NPS 24", two to three times more. Above NPS 36", ball valves are often impractical or unavailable, making butterfly valves the only viable choice.

Q: Can butterfly valves provide bubble-tight sealing like ball valves?
A: Standard concentric butterfly valves provide good sealing but may allow minor leakage under high pressure or after extended service. Triple offset butterfly valves with metal-to-metal seats can achieve bubble-tight sealing comparable to ball valves, and are widely used in high-pressure process service. However, for applications where absolute zero-leakage is critical (toxic fluids, expensive chemicals, hydrogen service), ball valves remain the safer specification.

Q: Which valve is better for flow throttling — ball or butterfly?
A: Butterfly valves are significantly better for throttling (partial-open flow control). The disc angle modulates flow smoothly through the valve. Ball valves are designed for on/off service — at partial openings, the edges of the ball's bore create severe cavitation, damaging the seats and causing noise. If flow regulation is required and you must choose between these two, specify a butterfly valve.
