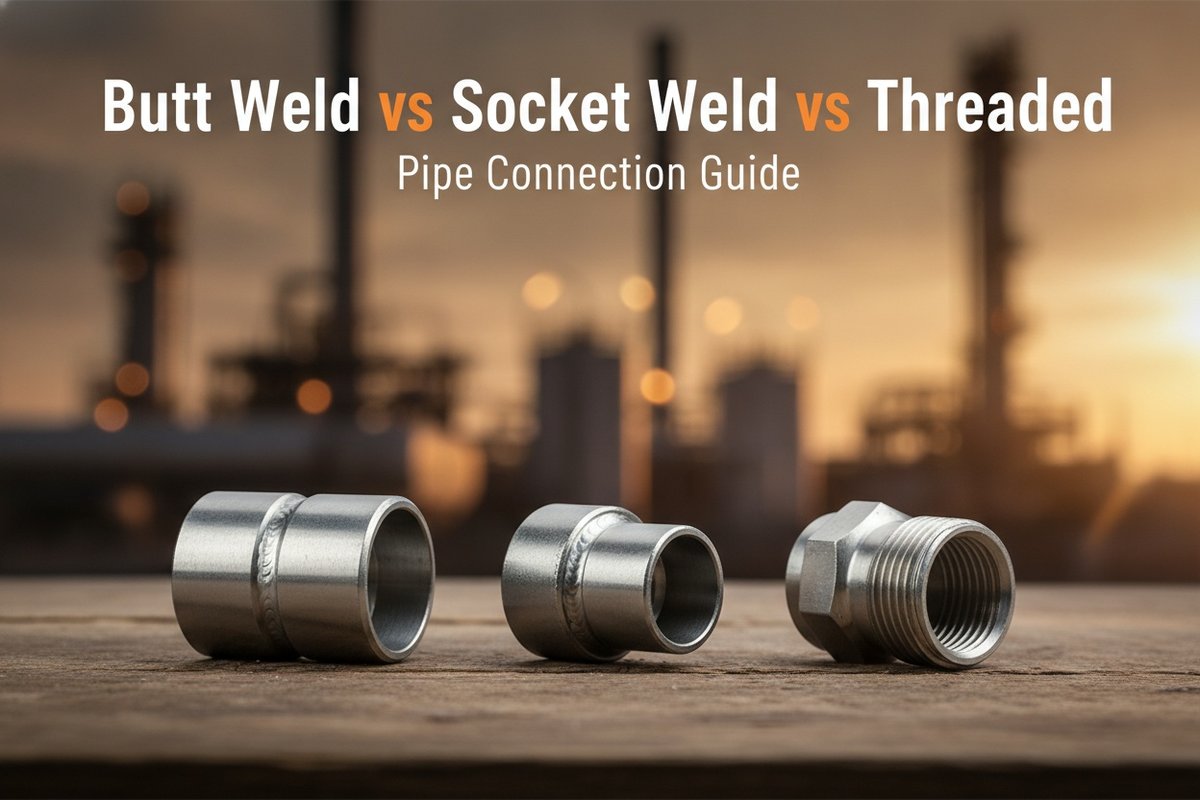

Butt Weld vs Socket Weld vs Threaded: Pipe Connection Guide

Quick Answer

The three main ways to join pipe are butt weld, socket weld, and threaded — and the right choice is governed by pressure, pipe size, fluid hazard, and vibration, not preference. Butt weld joins beveled pipe ends with a full-penetration weld, creating a joint as strong as the pipe itself with a smooth internal bore; it is standard for pipes NPS 2" and larger and mandatory for critical, high-pressure, high-temperature, or corrosive service (governed by ASME B16.9). Socket weld inserts the pipe into a recessed socket and applies an external fillet weld; it is used for small-bore high-pressure piping (typically NPS 2" and below) where welding is allowed — strong and leak-tight, but the internal gap can cause crevice corrosion in corrosive or sanitary service (governed by ASME B16.11, Classes 3000/6000/9000). Threaded joins pipe with tapered threads (ASME B1.20.1 / NPT) and no welding; it is cheapest and easiest, ideal for low-pressure, non-critical utility lines (water, air), but prone to leaking under vibration or thermal cycling and generally restricted from toxic or flammable service. As a rule: threaded for low-risk utilities, socket weld for small-bore high-pressure, butt weld for large-diameter and critical lines.

Every pipe in an industrial plant has to be joined to the next — to a fitting, a valve, a flange, or another length of pipe. How that joint is made determines whether the system leaks, how it performs under pressure and vibration, how it resists corrosion, how much it costs to build, and whether it can be inspected. There are three primary methods: butt weld, socket weld, and threaded. Choosing among them is one of the most consequential decisions in piping design — and one of the most commonly gotten wrong.

The choice is not arbitrary and it is not about cost alone. A threaded fitting that leaks water in a utility line is a minor annoyance; a threaded fitting that loosens under vibration and sprays flammable hydrocarbon across a plant floor is a catastrophe. As one real case shows: a manufacturer using threaded forged fittings on heavily vibrating hydraulic lines had threads constantly loosening and spraying oil — solved only by switching to socket weld, whose fillet weld is immune to vibration. The connection type must match the pressure, the pipe size, the fluid hazard, and the service conditions.

For piping engineers, EPC contractors, plant maintenance teams, and procurement managers doing material take-offs — this guide compares the three connection types across the factors that actually decide the choice: pressure and size limits, strength and fatigue, corrosion, inspection, cost, and vibration. It also gives clear "use this when" guidance and the ASME standards that govern each.

For the fittings themselves, see Pipe Fittings: Types, Materials & Standards. For flanged connections (the fourth major method), see Pipe Flanges: Types, Faces & Pressure Classes and Weld Neck vs Slip-On Flange.

The Three Connection Types

Butt Weld (BW)

A butt weld joins pipe and fitting end-to-end. Both ends are beveled, then joined with a full-penetration weld that fills the groove, making the fitting and pipe essentially a single continuous piece of metal.

Governing standards: ASME B16.9 (buttweld fitting dimensions and tolerances), ASTM A234 WPB (common material). NPT thread geometry does not apply.

Size range: The standard for all pipe sizes, but generally used for NPS 2" and larger, and mandatory for large diameters.

Key traits:

• Full-penetration weld — the joint is as strong as the pipe itself
• Smooth internal bore — no flow restriction, minimal turbulence and pressure drop
• No crevices — nothing to trap fluid or contaminants
• Best fatigue resistance and best corrosion resistance
• Best for high temperature and pressure

Trade-offs:

• Difficult to install — requires skilled welders, precise beveling, and accurate alignment
• Time-consuming — multiple weld passes often required
• Higher labor cost
• Requires more rigorous inspection (typically 100% radiographic testing)

Socket Weld (SW)

A socket weld inserts the pipe into a recessed socket in the fitting, then applies a fillet weld around the outside where the pipe meets the fitting.

Governing standard: ASME B16.11 (forged socket-weld fittings). Pressure classes: 3000, 6000, and 9000.

Size range: Small-bore piping, typically NPS 2" and below (up to ~4" in some applications).

Key traits:

• Much stronger than threaded; immune to vibration loosening
• The socket acts as a guide — easier alignment than butt weld, no tack welding or complex beveling needed
• Square-cut ends, no beveling — simpler preparation, faster in tight spaces
• Fillet weld is accessible for surface inspection
• Leak-tight for flammable, toxic, or expensive media where no leakage is permitted
• Good for steam service (roughly 300–600 psi)

Trade-offs:

• The expansion gap inside the socket can trap fluid → crevice corrosion in corrosive service
• Not suitable for sanitary (food, pharma) or slurry service due to the crevice
• Internal volumetric NDT (like radiography) is limited by geometry — usually only surface inspection (VT/PT/MT)
• The 1/16" (1.6mm) expansion gap must be maintained — a common installation error causes weld cracking

The critical 1/16" gap: When installing socket weld, the pipe is inserted to the bottom of the socket, then withdrawn approximately 1/16" (1.6mm) before welding. This gap allows for thermal expansion during welding and service. Without it, differential thermal expansion creates peak stresses that crack the fillet weld. Measuring this gap prevents the most common socket weld installation failure.

Threaded (THD / SCRD)

A threaded connection joins pipe with tapered threads — a male thread on the pipe engaging a female thread in the fitting — sealed with PTFE tape or pipe dope. No welding.

Governing standards: ASME B16.11 (forged threaded fittings), ASME B1.20.1 (NPT thread geometry). Pressure classes: 2000, 3000, 6000.

Size range: Small pipe, typically up to NPS 2".

Key traits:

• No welding, special equipment, or high-skilled labor needed
• Cheapest material and cheapest labor — lowest initial cost
• Fast installation and easy disassembly for maintenance
• Ideal where welding is impractical or unsafe (hot work restrictions, confined spaces)
• Good for systems requiring frequent disassembly

Trade-offs:

• Prone to leaking, especially under high vibration or thermal cycling
• Threads create stress concentration points and potential weak spots
• Loosens progressively under vibration regardless of initial torque
• Generally restricted from toxic gas, flammable fluids, and high-pressure critical service
• Thread engagement must be adequate (minimum depth = wall thickness plus three threads)

Head-to-Head Comparison

How to Choose: Decision Guide

Choose Butt Weld When:

• Pipe is NPS 2" or larger
• The system is high-pressure, high-temperature, or critical
• The fluid is hazardous or highly corrosive (smooth bore, no crevice)
• Flow efficiency matters (long-distance transport, minimal pressure drop)
• Full volumetric inspection (radiography) is required
• Long-term integrity dominates over ease of disassembly

Common in oil & gas, petrochemical, power generation, and chemical processing main lines.

Choose Socket Weld When:

• Pipe is small-bore (NPS 2" and below)
• The system is high-pressure but small-diameter (steam, oil, gas, hydraulics)
• Leakage cannot be permitted (flammable, toxic, expensive media)
• Vibration is present (near pumps and compressors) and threaded would loosen
• Space is tight (skid-mounted equipment, offshore modules) where butt weld clamps won't fit
• Welding is allowed but full butt weld prep is impractical

The "engineer's compromise" — strength approaching butt weld with easier installation, for small bore.

But avoid socket weld when: the service is corrosive (crevice corrosion at the gap), sanitary (food/pharma), or slurry — the crevice traps material. Prefer butt weld for those.

Choose Threaded When:

• Pipe is small (NPS 2" and below)
• The system is low-pressure and non-critical (utility water, compressed air, lubrication)
• Frequent disassembly for inspection, cleaning, or replacement is needed
• Welding is impractical or unsafe (hot work restrictions, confined spaces, no skilled welders)
• Fast, low-cost installation is the priority
• Vibration is controlled and the fluid is non-hazardous

Never use threaded for toxic gas, flammable fluids, or high-vibration critical service.

The Cost Trap

When comparing cost, look at total cost, not just fitting price:

• Threaded: cheapest material + cheapest labor = lowest initial cost
• Socket weld: moderate material + moderate labor
• Butt weld: moderate material + expensive labor (skilled welder + radiographic testing) = highest initial cost

But initial cost is not lifecycle cost. If a threaded fitting leaks toxic chemicals, the cleanup and downtime cost can be 100× the welding cost that would have prevented it. The cheap connection is often the expensive one over the life of the system. Match the connection to the risk, not the budget.

Practical Scenarios

Utility water line in a commercial building: Threaded is practical — low-risk, fast service, easy maintenance. Verify thread type and control vibration.

Small-bore high-pressure steam or hydraulic line with vibration: Socket weld — the fillet weld is immune to the vibration that loosens threaded joints.

Large-diameter crude oil or hazardous chemical transfer line: Butt weld — strength, smooth bore, no crevice, full inspection.

Chemical transfer in a corrosion-driven environment: Butt weld — minimizes crevices and supports full inspection. Avoid socket weld's crevice.

Offshore platform, tight skid module, small bore: Socket weld — strength without the space needed for butt weld clamps.

Instrument air or utility line needing frequent disassembly: Threaded — the disassembly advantage outweighs the higher leak risk for low-risk service.

Common Specification Mistakes

After 15+ years supplying pipe fittings to industrial projects:

Mistake 1: Threaded in High-Vibration Service

Threaded fittings on vibrating lines (near pumps, compressors, hydraulics) loosen progressively and leak.

Prevention: Use socket weld or butt weld where vibration is present. Threaded loosens regardless of initial torque.

Mistake 2: Socket Weld in Corrosive Service

Socket weld used for corrosive or chloride-bearing fluid. Crevice corrosion attacks the gap at the socket interface.

Prevention: For corrosive, sanitary, or slurry service, use butt weld (no crevice). Reserve socket weld for clean small-bore high-pressure service.

Mistake 3: Missing the 1/16" Expansion Gap

Pipe pushed to the bottom of the socket before welding. Thermal expansion cracks the fillet weld.

Prevention: Withdraw the pipe ~1/16" (1.6mm) before welding. Verify with a feeler gauge. This is the most common socket weld installation error.

Mistake 4: Threaded for Hazardous Fluid

Threaded fittings used for toxic gas or flammable fluid to save cost. A leak becomes a safety incident.

Prevention: Never use threaded for toxic or flammable service. The line class typically prohibits it. Use welded connections.

Mistake 5: Wrong Standard Reference

Buyer orders "Class 3000 fittings" without specifying socket weld vs threaded (both exist under ASME B16.11). Wrong fittings delivered.

Prevention: Specify the connection type explicitly (BW/SW/THD), the standard (B16.9 for BW, B16.11 for SW/THD), the class, size, and material grade.

Mistake 6: Ignoring the Line Class

Buyer selects connection type by preference, ignoring the project piping class that dictates allowable joint types.

Prevention: Start from the line list — design pressure/temperature, fluid hazard, corrosion allowance, vibration, and the allowable joint types the piping class permits. The class governs.
