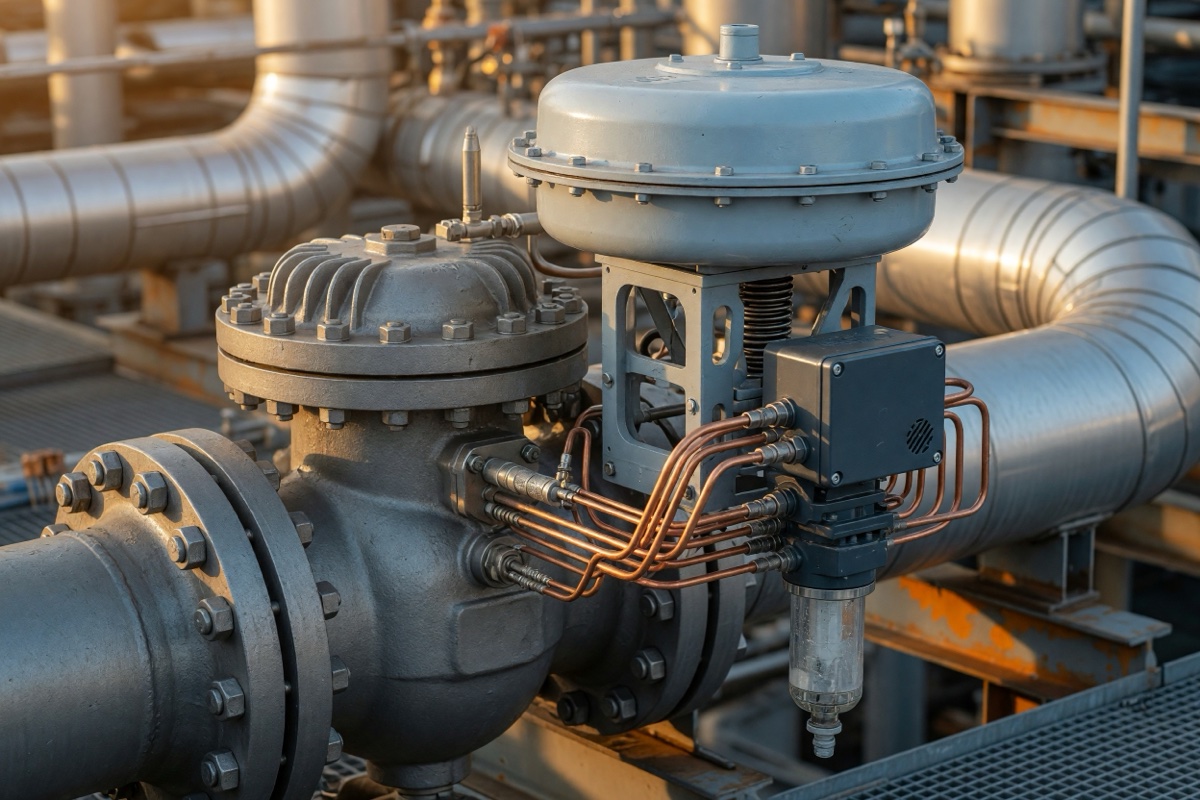

Control Valves & Actuators: Types, Cv Sizing & Selection Guide

Quick Answer

A control valve is the final control element in a process loop — it receives a signal from a controller and modulates flow to hold a process variable at setpoint. Every control valve has three assemblies: the body (contains pressure, provides the flow passage), the trim (plug, seat, cage, ball or disc — changes the effective flow area), and the actuator (supplies thrust or torque to position the trim). Bodies split into linear types (globe, angle — precise throttling, high pressure drop, best for cavitating service and wide rangeability) and rotary types (V-port ball, butterfly, eccentric plug — higher capacity and lower cost, less pressure drop). Sizing is done by calculating the required Cv (or Kv) per IEC 60534-2-1 / ISA-75.01 for minimum, normal, and maximum flow cases — never by matching line size. Two checks then govern trim selection: cavitation/flashing (compare ΔP against allowable; specify multi-stage anti-cavitation trim where the cavitation index exceeds limits) and noise (low-noise trim above ~85 dBA). The flow characteristic should match the loop: linear for level control, equal percentage for pressure and flow control. Published rangeability guides selection: cage-guided globe ~100:1, equal-% globe ~50:1, ball ~30:1, butterfly ~20:1. Finally, an electropneumatic positioner is mandatory on every throttling valve — without one, a valve is not really a control valve — and fail-safe action (fail-closed, fail-open, or fail-last) is a documented safety decision, not a default.

Every process control loop ends at a valve. The transmitter can be accurate, the controller perfectly tuned, and the DCS flawless — but if the final control element cannot move the flow smoothly and repeatably, the loop will never be stable. Control valves are where instrumentation meets mechanical reality, and where a surprising proportion of "control problems" actually originate.

The failures are predictable. A valve sized on line size instead of Cv spends its life either barely cracked open or wide open, controlling nothing across most of its travel. A valve with the wrong flow characteristic makes the loop sluggish at one end of the range and unstable at the other. A valve without a positioner suffers stick-slip and hysteresis that no amount of controller tuning will fix. And a valve taking a high pressure drop on a liquid near its vapour pressure will cavitate, chewing the trim and body to scrap within months while sounding like gravel in the pipe.

None of these are exotic problems. They are the standard failure modes, and each is avoidable at the specification stage.

For instrumentation and process engineers, control system designers, and procurement teams — this guide covers control valves and actuators: body and trim types, Cv sizing, flow characteristics and rangeability, cavitation and noise, actuators and positioners, fail-safe action, and leakage classes.

For related valves, see Industrial Valves Guide, Globe Valve vs Gate Valve, and Pressure Relief & Safety Valves.

Anatomy of a Control Valve

Keeping the terminology straight avoids most specification confusion:

• Body — globe, angle, ball, butterfly, plug, diaphragm. Describes the pressure boundary and flow passage.
• Trim — plug, seat, cage, ball, disc, stem. The parts that change effective flow area.
• Actuator — pneumatic, electric, or hydraulic. Supplies thrust (linear) or torque (rotary).
• Positioner — compares the control signal to actual valve position and adjusts the actuator.
• Accessories — I/P converter, solenoid valve, limit switches, air filter regulator, volume booster, lock-up valve, handwheel.

Note that linear and equal percentage describe the flow characteristic — the relationship between travel and flow — not a valve body type. Fail-open and fail-closed describe required fault position. These are independent choices.

Body Types

Linear (Sliding-Stem) Valves

Globe — the most common control valve. The plug moves linearly against the seat to modulate flow. Variants:

• Single-seat — tight shutoff, higher actuator thrust needed
• Double-seat — balanced forces, lower thrust, poorer shutoff
• Cage-guided — plug guided by a cage with shaped windows; excellent stability, easy trim change, best rangeability (~100:1)
• Balanced plug — pressure-balanced so high differential pressure can be controlled with small actuator force

Best for: precise throttling, high pressure drop, cavitating or flashing service, wide rangeability.
Trade-off: high pressure drop (low pressure recovery), larger and more expensive than rotary for the same capacity.

Angle — inlet and outlet perpendicular. Used for boiler feedwater, heater blowdown, erosive and flashing service, and where the valve doubles as an elbow in tight piping. Accepts extended outlets, restricted internals, and outlet liners to manage flashing and erosion.

Rotary Valves

V-port ball — a segmented ball with a V-shaped notch. High capacity, good rangeability (~30:1), handles fibrous and slurry service well. Popular in pulp/paper and general process.

Butterfly — a rotating disc. Highest capacity per cost, compact, but limited rangeability (~20:1) and control quality at low openings. High-performance (double/triple offset) versions improve shutoff and control.

Eccentric plug — a rotating plug with an offset seat. Good for erosive, dirty, and sticky services; robust shutoff.

Diaphragm (weir) — a flexible diaphragm isolates the fluid from the body internals. Used for corrosive, sterile, and slurry duties.

Body Selection Summary

Cv Sizing

Cv (imperial) or Kv (metric) is the flow coefficient — the flow that passes the valve at a given pressure drop. Sizing means calculating the required Cv for each operating case and selecting a valve whose Cv range covers them all with the valve at a sensible opening.

The Procedure

1. Gather all flow cases — minimum, normal, and maximum flow, each with its own inlet and outlet pressure. These place the valve at very different openings.
2. Calculate Cv for each case using the standard sizing equations of IEC 60534-2-1 or ISA-75.01 (liquid, gas, or steam equations as appropriate).
3. Check for choked flow — beyond a limiting ΔP, further pressure drop produces no additional flow.
4. Check cavitation and flashing — compare actual ΔP against the allowable pressure drop.
5. Select the valve so that normal flow sits in a controllable band (commonly around 30–70% travel), maximum flow is achievable without the valve wide open, and minimum flow is above the valve's controllable minimum.

Critical rule: control valve sizing is based on IEC 60534-2-1 methods, not on line size. A valve is almost always smaller than the line it sits in. Sizing to line size produces a valve that does all its control in the first 10% of travel.

Rangeability vs Turndown

Rangeability = ratio of maximum to minimum controllable flow at constant pressure drop.

Published values for common trims:

Compare this to the process turndown (Q_max / Q_min). If required turndown exceeds valve rangeability, you need a different trim, a different body, or split-range valves.

Flow Characteristics

The inherent flow characteristic is the relationship between valve travel and flow at constant pressure drop (defined in IEC 60534-2-4):

Linear — flow is proportional to travel. Best where valve ΔP stays roughly constant. Use for level control and for liquid flow where pressure drop is largely across the valve.

Equal percentage — each equal increment of travel changes flow by an equal percentage. Compensates for systems where valve ΔP falls as flow rises. Use for pressure and flow control and for most systems with significant line loss.

Quick opening — most of the flow area opens early in travel. Used for on/off and relief-type duties, rarely for modulating control.

Valve authority matters here: if the valve takes only a small fraction of total system pressure drop, its installed characteristic distorts away from its inherent one, and control quality degrades. Aim for the valve to take a meaningful share of the system drop (commonly 25–50%).

Cavitation, Flashing and Noise

Cavitation

In liquids, if pressure at the vena contracta falls below the vapour pressure, vapour bubbles form; if downstream pressure recovers above vapour pressure, they collapse violently. The implosions erode trim and body — cavitation damage can destroy a valve in months.

• Globe valves have low pressure recovery, which reduces cavitation tendency compared to high-recovery rotary valves — but high ΔP can still cavitate them
• Anti-cavitation trim should be multi-stage, multi-turn or multi-slot design, taking the pressure drop in stages so it never falls below vapour pressure
• A common criterion: specify anti-cavitation trim if the cavitation index exceeds the manufacturer's limit at any operating case

Flashing

If downstream pressure stays below vapour pressure, the fluid flashes to vapour and stays vapour. Bubbles do not collapse, so there is no implosion damage — but the high-velocity two-phase flow erodes the body and downstream piping.

Flashing cannot be eliminated by trim design (it is a system condition). Manage it with hardened materials (Stellite 6, tungsten carbide, ceramic), angle bodies, expanded outlets, and outlet liners.

Noise

Aerodynamic noise in gas and steam service can exceed safe and permitted levels.

• Specify low-noise trim where predicted noise exceeds roughly 85 dBA
• Options include multi-path/multi-stage trim, diffusers downstream, and heavier pipe schedule/insulation as secondary treatment

Actuators

The actuator converts the control signal (4–20 mA, or 3–15 psi pneumatic) into stem movement.

Types

Pneumatic — spring-and-diaphragm or piston. The industrial default: fast, reliable, inherently fail-safe with spring return, safe in hazardous areas. Requires clean instrument air.

Electric — motor-driven. Used where no instrument air exists. Slower, needs battery or spring-return provision for fail-safe.

Hydraulic — very high thrust for large valves and high ΔP.

Sizing the Actuator

The actuator must supply enough force/torque for:

• Process pressure forces on the plug (unbalanced area × differential pressure)
• Packing friction
• Seating force for the required shutoff class
• Spring compression (spring-return designs)
• A safety factor

Seating force approximation: F_seat = P₁ × A_seat + spring return force. For high pressure service (above roughly 100 bar), a pre-loaded spring or volume booster is often needed.

Fail-Safe Action

What position must the valve reach on loss of signal, instrument air, or power? This is a process safety decision, and the reason should be documented on the datasheet.

• Fail-closed (FC) — common default for many services (e.g. fuel, feed)
• Fail-open (FO) — e.g. cooling water to a reactor jacket, where losing cooling is the hazard
• Fail-last / fail-in-place — where either extreme is hazardous

Pneumatic convention: air-to-open (reverse actuator) gives fail-closed; air-to-close (direct actuator) gives fail-open.

Positioners

Always specify an electropneumatic positioner on every throttling valve. Positioners close the position feedback loop, eliminating hysteresis and stick-slip, and dramatically improving control performance.

Typical accuracy: ±5% of full scale without a positioner, ±1% with one.

Modern positioners support HART, FOUNDATION Fieldbus, or PROFIBUS, and provide valve diagnostics (travel deviation, cycle counts, friction trending) for predictive maintenance.

Seat Leakage Classes (ANSI/FCI 70-2, formerly B16.104)

Metal seats typically achieve Class II–IV; soft seats achieve Class VI. Specify the class the process actually needs — demanding Class VI where Class IV suffices adds cost and limits temperature range.

Standards Framework

The IEC 60534 series governs industrial-process control valves:

• 60534-1 — general terminology and requirements
• 60534-2-1 — sizing equations for fluid flow
• 60534-2-3 — test procedures for flow capacity (ensures published Cv values are consistent)
• 60534-2-4 — inherent flow characteristics and rangeability
• 60534-3-1/-3-2/-3-3 — face-to-face and end-to-end dimensions (globe, rotary, buttweld)
• 60534-4 — inspection and routine testing
• 60534-5 — marking

ISA-75.01 is the parallel ISA sizing standard. ANSI/FCI 70-2 covers seat leakage.

Common Specification Mistakes

After 15+ years supplying valves to process and industrial projects:

Mistake 1: Sizing to Line Size

Valve specified the same size as the line. It controls entirely within the first sliver of travel, with poor resolution and unstable loops.

Prevention: Size on calculated Cv per IEC 60534-2-1 across all flow cases. Expect the valve to be smaller than the line.

Mistake 2: Only Considering the Normal Case

Cv calculated at normal flow only. At minimum flow the valve is nearly shut and unstable; at maximum it is wide open and cannot control.

Prevention: Calculate Cv at minimum, normal, and maximum cases with their respective pressures.

Mistake 3: No Positioner

Throttling valve supplied without a positioner to save cost. Stick-slip and hysteresis make the loop untunable.

Prevention: Fit an electropneumatic positioner on every modulating valve. Accuracy improves from about ±5% to ±1% of full scale.

Mistake 4: Ignoring Cavitation Until Commissioning

High-ΔP liquid service specified with standard trim. Trim erodes within months and noise is severe.

Prevention: Check the cavitation index at every operating case during sizing. Specify multi-stage anti-cavitation trim where required.

Mistake 5: Wrong Flow Characteristic

Equal-percentage trim used on a level loop with constant ΔP, or linear trim in a system with heavy line loss. Control is sluggish at one end and twitchy at the other.

Prevention: Linear for level control and near-constant ΔP; equal percentage for pressure/flow control and systems with significant line loss. Check valve authority.

Mistake 6: Undocumented Fail Action

Fail position chosen by habit rather than hazard analysis. On air failure the valve moves to the dangerous position.

Prevention: Decide fail action from the process hazard, document the reason on the datasheet, and verify the actuator/solenoid arrangement delivers it.

Mistake 7: Over-Specifying Leakage Class

Class VI soft seat demanded on a high-temperature service where Class IV metal seat is appropriate. Cost rises and seat life falls.

Prevention: Specify the leakage class the process needs, considering temperature limits of soft seat materials.

Supply from Kasko Makine

Kasko Makine supplies control valves, actuators, and instrumentation for process, oil & gas, power, and industrial applications:

Control valve types:

• Globe control valves — single-seat, double-seat, cage-guided, balanced plug
• Angle control valves
• V-port segmented ball control valves
• High-performance butterfly control valves
• Eccentric plug valves
• Diaphragm control valves
• Self-actuated pressure regulators

Trim options: standard, anti-cavitation (multi-stage/multi-slot), low-noise, hardened (Stellite 6, tungsten carbide, ceramic), soft seat and metal seat

Actuation: pneumatic spring-diaphragm and piston, electric, hydraulic; fail-open, fail-closed, fail-last configurations

Accessories: electropneumatic positioners (HART / Fieldbus / PROFIBUS), I/P converters, solenoid valves, limit switches, air filter regulators, volume boosters, lock-up valves, handwheels

Materials: WCB carbon steel, CF8M and CF3M stainless, LCC low temperature, duplex, alloy bodies; 316 and hardened trim

Sizes and ratings: NPS 1" to 36", Class 150 through 2500

Engineering support:

• Cv sizing per IEC 60534-2-1 across all flow cases
• Cavitation, flashing and noise prediction
• Trim and characteristic selection
• Actuator thrust/torque sizing including seating force
• Fail-safe action review
• Leakage class specification

Certification: EN 10204 Type 3.1, IEC 60534-4 inspection and routine testing, seat leakage test per ANSI/FCI 70-2, ATEX and SIL documentation where required, NACE MR0175 for sour service

Logistics: Control valves shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard valves 8-14 weeks; severe-service and special trim 14-24 weeks.

Need control valves? Send us your flow cases (minimum, normal, maximum with inlet and outlet pressures), fluid data (phase, temperature, density, vapour pressure, viscosity, solids), required shutoff class, fail action, and available instrument air or power to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll calculate Cv, check cavitation and noise, recommend body, trim and characteristic, size the actuator, and provide a quotation within 48 hours.

Continue Reading: Valve Guides

• Industrial Valves Guide — All valve types and how to choose
• Globe Valve vs Gate Valve — Throttling vs isolation
• Pressure Relief & Safety Valves — Overpressure protection
• Check Valves — Backflow prevention

Frequently Asked Questions

Q: What is a control valve?
A: A control valve is the final control element in a process control loop. It receives a signal from a controller — typically 4–20 mA or 3–15 psi pneumatic — and modulates flow to hold a process variable such as pressure, level, temperature, or flow at setpoint. Every control valve has three assemblies: the body (contains pressure and provides the flow passage), the trim (plug, seat, cage, ball or disc, which changes the effective flow area), and the actuator (supplies thrust or torque to position the trim). Most also include a positioner that compares the control signal to actual valve position. Body types divide into linear (globe, angle) and rotary (ball, butterfly, eccentric plug) designs.

Q: How do you size a control valve?
A: Control valve sizing means calculating the required flow coefficient Cv (or Kv) for each operating case using the standard equations of IEC 60534-2-1 or ISA-75.01, then selecting a valve whose Cv range covers all cases at sensible travel positions. The procedure: gather minimum, normal, and maximum flow cases each with their own inlet and outlet pressures; calculate Cv for each; check for choked flow; check cavitation and flashing by comparing actual pressure drop against allowable; then select so normal flow sits in a controllable band (commonly 30–70% travel). Critically, sizing must be based on calculated Cv, never on line size — a control valve is almost always smaller than the line it sits in.

Q: What is the difference between linear and equal percentage flow characteristics?
A: The flow characteristic describes how flow changes with valve travel at constant pressure drop. With a linear characteristic, flow is proportional to travel — this suits systems where the valve's pressure drop stays roughly constant, making it the usual choice for level control. With an equal percentage characteristic, each equal increment of travel changes flow by an equal percentage, which compensates for systems where valve pressure drop falls as flow rises — making it the usual choice for pressure and flow control and for systems with significant piping loss. A third option, quick opening, provides most of the flow area early in travel and is used for on/off duties. Note that flow characteristic is independent of valve body type.

Q: What is cavitation in a control valve and how is it prevented?
A: Cavitation occurs in liquid service when pressure at the vena contracta (the point of maximum velocity inside the valve) falls below the fluid's vapour pressure, forming vapour bubbles that then collapse violently as downstream pressure recovers above vapour pressure. The implosions erode the trim and body, and can destroy a valve within months while producing severe noise and vibration. Prevention is through trim design: anti-cavitation trim uses multi-stage, multi-turn, or multi-slot paths that take the pressure drop in stages so pressure never falls below vapour pressure. Check the cavitation index at every operating case during sizing. Note that globe valves have lower pressure recovery than rotary valves, which reduces but does not eliminate cavitation tendency at high pressure drop.

Q: Does a control valve need a positioner?
A: Yes — an electropneumatic positioner should be specified on every throttling control valve. The positioner compares the control signal to actual valve stem position and adjusts the actuator accordingly, closing the position feedback loop. This eliminates hysteresis and stick-slip caused by packing friction and actuator non-linearity, dramatically improving control performance: typical accuracy improves from about ±5% of full scale without a positioner to ±1% with one. Without a positioner, a valve is effectively a manually-operated pneumatic device rather than a true control valve, and no amount of controller tuning will compensate. Modern positioners also support HART, FOUNDATION Fieldbus, or PROFIBUS communication and provide diagnostics for predictive maintenance.

Q: What is fail-safe action on a control valve?
A: Fail-safe action defines the position a control valve must move to when it loses its control signal, instrument air, or electrical power. Fail-closed (FC) is a common default for services such as fuel or feed lines. Fail-open (FO) is required where losing flow is the hazard — for example, cooling water to a reactor jacket. Fail-last or fail-in-place is used where both extremes are hazardous. With pneumatic spring-return actuators, an air-to-open (reverse-acting) arrangement gives fail-closed and air-to-close (direct-acting) gives fail-open. Fail action is a process safety decision that should come from hazard analysis, and the reasoning should be documented on the valve datasheet rather than chosen by habit.
