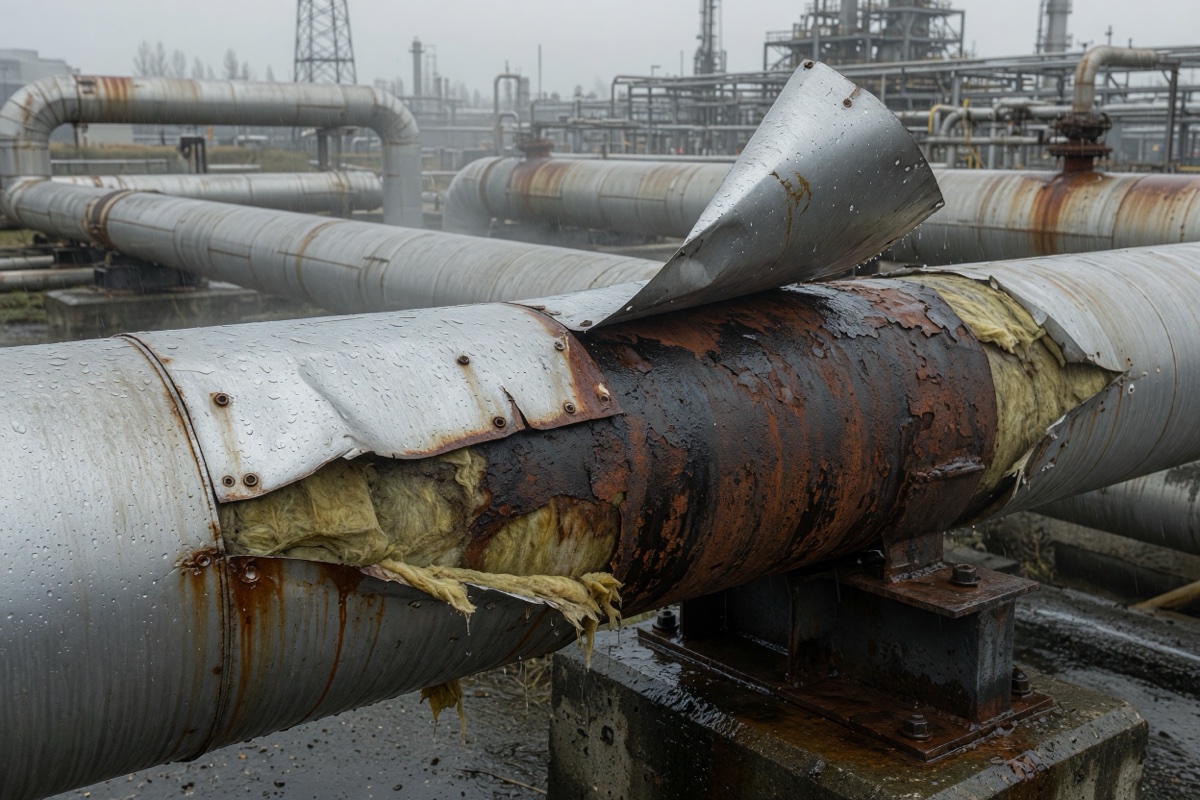

Corrosion Under Insulation (CUI): Prevention & Inspection

Quick Answer

Corrosion under insulation (CUI) is localised external corrosion that occurs beneath thermal insulation when water penetrates the system and contacts the pipe or vessel wall. It is one of the most expensive and dangerous integrity problems in process plants precisely because it is hidden — the pipe looks fine until it leaks or fails. For carbon steel, the highest-risk temperature band is roughly −12°C to 175°C (10°F to 350°F), with the worst attack around 60–120°C, because that range keeps water liquid at the metal surface rather than boiling it off; wet-dry cycling and intermittent or cyclic service are worse than continuously hot lines. For austenitic stainless steel, the risk is different and often more severe: external chloride stress corrosion cracking (ESCC) in roughly 50–150°C, driven by chlorides leached from insulation or the environment, which can crack a pipe through-wall with very little metal loss. Prevention rests on four layers: a high-quality protective coating on the metal (the primary barrier — insulation is not a corrosion barrier), insulation selected for low chloride and low water retention, weatherproof jacketing with correctly lapped, sealed joints, and design details that shed water rather than trap it. API RP 583 is the governing recommended practice. Inspection is the hard part — the most common approach remains stripping insulation at high-risk locations, supplemented by profile radiography, pulsed eddy current, and guided wave UT for screening without full removal.

Insulation is installed to save energy, protect personnel, and control process temperature. It also does something nobody intends: it creates a sealed, damp annular space around the pipe that holds water against bare steel and hides the result from inspection. That combination is why corrosion under insulation is consistently ranked among the top causes of unplanned shutdowns and loss-of-containment incidents in refining and petrochemical plants.

The economics are brutal. A CUI failure is rarely detected early because the corrosion is invisible — the cladding looks intact, the line looks fine, and then a leak appears. The cost is not just the repair but the shutdown, the lost production, and in hydrocarbon service the potential for fire. Meanwhile the inspection itself is expensive: stripping and reinstating insulation on a large plant runs into serious money, and most of what you strip turns out to be fine.

The other thing that surprises engineers new to the problem is that stainless steel is not immune — in fact, in the wrong temperature band with chlorides present, austenitic stainless can crack through-wall from the outside with almost no measurable wall loss. Upgrading material without addressing insulation and coating can make the problem worse, not better.

For integrity engineers, maintenance planners, project designers, and procurement teams — this guide covers CUI: the mechanism and its temperature ranges, which materials and locations are at risk, insulation and jacketing selection, coatings, inspection strategies, and design details that prevent it.

For related material topics, see Carbon Steel Pipe, Stainless Steel Pipe, and Duplex & Super Duplex Pipe.

The Mechanism

CUI requires three things, all of which insulated systems tend to supply:

1. Water — from rain, wash-down, steam leaks, cooling tower drift, condensation, deluge testing, or humid ambient air
2. A path to the metal — damaged or badly lapped jacketing, unsealed penetrations, missing caulk, degraded sealant, or absorbent insulation
3. A temperature that keeps the water liquid at the surface — hot enough to accelerate the reaction, not hot enough to evaporate it

Insulation makes each worse. It holds water against the surface rather than letting it drain and dry, it concentrates contaminants as water evaporates and is replenished, and it conceals everything from visual inspection.

Contaminants accelerate the process. Chlorides and sulphates leached from insulation material, carried in from marine air, or deposited from process leaks, break down passive films and drive localised attack.

Temperature Ranges — Where the Risk Lives

Carbon Steel and Low Alloy

The commonly cited susceptible band is approximately −12°C to 175°C (10°F to 350°F), with the most aggressive attack around 60–120°C.

The logic is straightforward:

• Below freezing — water is ice, corrosion is slow (but the line becomes high-risk during warm-up and shutdown)
• In the band — water is liquid at the metal surface, oxygen is available, and corrosion proceeds
• Above roughly 175°C continuous — water flashes off at the surface, so the metal stays dry in steady operation

The critical qualifier: continuously hot lines are lower risk only while they stay hot. Any line that cycles, sits idle, is intermittently in service, or shuts down periodically passes through the susceptible band every time — and those wet-dry cycles are more damaging than steady exposure. High-temperature lines that shut down regularly are frequently the worst CUI offenders, precisely because everyone assumes they are safe.

Austenitic Stainless Steel — A Different Problem

For 304/316-type stainless, the dominant CUI mechanism is external chloride stress corrosion cracking (ESCC), generally cited in the range of roughly 50–150°C, requiring:

• Tensile stress (residual welding stress alone is usually sufficient)
• Chlorides — leached from insulation, from marine or coastal atmosphere, or from process spills
• Moisture

ESCC produces branching transgranular cracks that can penetrate the wall with negligible general wall loss — meaning conventional thickness measurement will not find it. This is why stainless CUI is often more dangerous than carbon steel CUI despite stainless being the "better" material.

Duplex and super duplex grades are substantially more resistant to chloride SCC, which is one reason they are specified in chloride-heavy and coastal service. See Duplex & Super Duplex Pipe.

High-Risk Locations

CUI is not uniform. It concentrates where water enters and collects. Target inspection here first:

Water entry points

• Damaged, dented, or poorly lapped jacketing
• Jacket seams on the upper half of horizontal pipe (water runs in)
• Penetrations: nozzles, instrument connections, vents, drains, sample points
• Terminations at flanges, valves, and equipment
• Unsealed or degraded caulking and sealant

Water collection points

• Pipe supports and hangers — the classic CUI location; supports interrupt the vapour barrier and hold water
• Low points, dead legs, and the bottom of vertical runs
• Under insulation on horizontal lines at the 6 o'clock position
• Bottoms of vessels and skirts
• Beneath deluge and firewater systems

Environmental exposure

• Below cooling tower drift or steam vents
• Areas subject to frequent wash-down
• Coastal and marine environments (chlorides)
• Under process leaks and drips from equipment above

Design details

• Insulation terminations without proper end-sealing
• Protrusions, brackets, and attachments through the insulation
• Small-bore branches and vents from insulated headers
• Anywhere insulation was reinstated poorly after maintenance

For support-related detail, see Pipe Supports & Hangers.

Prevention: Four Layers

The key principle: insulation is not a corrosion barrier. The coating is.

Layer 1 — Protective Coating (Primary Defence)

The coating on the steel is what actually prevents CUI. It must survive the operating temperature, thermal cycling, and moisture exposure for the design life.

Common systems:

• Epoxy phenolic / novolac — widely used for moderate temperatures
• Thermal spray aluminium (TSA) — highly effective for high-temperature and cyclic service; provides galvanic protection and performs well where organic coatings degrade
• Inorganic zinc / silicone systems for elevated temperature
• Multi-coat systems selected by temperature range

Requirements:

• Match the coating to the maximum operating temperature including upsets and steam-out
• Prepare the surface properly — blast standard and profile per the coating specification
• Coat the whole surface, including under supports, at attachments, and at terminations
• Address weld areas and edges, where coating tends to be thin

For stainless steel, coating is also used to isolate the metal from chloride-bearing water, breaking the ESCC mechanism.

Layer 2 — Insulation Selection

Choose insulation that minimises water retention and chloride content:

For stainless steel, specify low-chloride insulation. Insulation materials can leach chlorides directly onto the pipe when wet — the exact mechanism that drives ESCC. Standards exist for low-leachable-chloride insulation; specify and verify it.

Water-repellent (hydrophobic) treatments and inhibitor-loaded products are available and reduce risk, but do not replace coating.

Layer 3 — Jacketing and Weatherproofing

The jacket keeps water out of the system:

• Aluminium — economical and common; note galvanic considerations
• Stainless steel — better durability, coastal and severe environments
• Aluminised or coated steel — cost/performance compromise

Detailing is what actually works or fails:

• Lap joints shedding downward so water runs off, not in
• Circumferential joints correctly overlapped
• Seams positioned on the lower half or side, never facing up
• Bands at correct spacing, not over-tightened (which dents and creates entry paths)
• Sealed penetrations at every nozzle, support, and instrument connection
• End seals at insulation terminations
• Correct caulk/sealant specified for the temperature, and a plan to renew it

Most CUI traced to jacketing is a detailing failure, not a material failure.

Layer 4 — Design to Shed Water

Design decisions made once eliminate decades of maintenance:

• Question whether insulation is required at all. Insulation applied only for personnel protection can often be replaced with guarding or mesh cages, removing the CUI mechanism entirely.
• Avoid insulation on lines that do not need it thermally
• Use insulation supports and standoffs that maintain the vapour barrier
• Design terminations, protrusions, and attachments to shed water
• Slope surfaces; avoid creating ledges and pockets
• Locate insulated lines away from drip sources where possible
• On vessels, address skirts, saddles, and stiffener rings specifically

Inspection

CUI inspection is difficult because the damage is hidden and full insulation removal is expensive. API RP 583 covers CUI and is the primary recommended practice; risk-based inspection methodology (API RP 580/581) is commonly used to prioritise.

Strategy: Risk-Based Targeting

Rather than inspecting everything, rank circuits by:

• Operating temperature — is it in the susceptible band, or does it cycle through it?
• Material — carbon steel (wall loss) vs austenitic stainless (ESCC)
• Age of coating and insulation system
• Environment — coastal, wash-down, drift, steam
• Known water ingress locations
• Consequence of failure — fluid, pressure, proximity to personnel

Then inspect the high-risk positions rather than random samples.

Methods

Visual inspection of jacketing — the cheapest first pass. Look for damage, poor laps, missing caulk, staining, and rust bleeding at seams. Staining running from a seam is a strong indicator.

Insulation removal (stripping) — the definitive method and still the most common. Expensive, but conclusive. Target it using the risk ranking.

Inspection windows/plugs — pre-planned removable sections at known high-risk points, allowing repeated inspection without full stripping.

Profile (tangential) radiography — images the pipe wall profile through insulation without removal. Effective for detecting wall loss and water ingress; needs access and radiation controls.

Pulsed eddy current (PEC) — measures average wall thickness through insulation and jacketing without removal. Good for screening large areas quickly; gives average rather than pinpoint values.

Guided wave ultrasonics (GWUT) — screens long runs from a single access point, identifying anomalies for follow-up. Useful for buried and inaccessible piping.

Real-time / digital radiography — faster imaging for targeted areas.

Infrared thermography — locates wet insulation (which conducts heat differently), indicating water ingress rather than corrosion directly.

Important limitation for stainless: ESCC produces cracking with minimal wall loss, so thickness-based methods (PEC, standard UT) may show nothing. Detection typically requires insulation removal plus surface NDE — dye penetrant or eddy current on the cleaned surface.

Common Mistakes

After 15+ years supplying piping materials and supporting integrity work on industrial projects:

Mistake 1: Treating Insulation as Corrosion Protection

Line insulated with no coating, or a coating chosen without reference to temperature. The insulation holds water against bare steel and accelerates the very problem it appeared to prevent.

Prevention: Coating is the primary barrier. Specify a coating system rated for the maximum temperature including upsets and steam-out, and apply it to the full surface.

Mistake 2: Assuming Hot Lines Are Safe

Line running at 250°C dismissed as above the CUI range — but it shuts down monthly, passing through the susceptible band each time with wet-dry cycling.

Prevention: Assess the full operating history, not just normal operating temperature. Cyclic and intermittent service is higher risk than steady-state.

Mistake 3: Assuming Stainless Is Immune

304/316 line insulated with standard mineral wool in a coastal plant. Chlorides leach onto the hot surface and produce external chloride stress corrosion cracking — through-wall, with almost no wall loss.

Prevention: Specify low-chloride insulation for stainless, coat the steel, and consider duplex where chloride exposure is severe.

Mistake 4: Jacket Seams Facing Upward

Jacketing installed with longitudinal seams on the top of horizontal pipe. Rain runs straight into the system.

Prevention: Position seams on the lower half or side, lap joints to shed water downward, and seal every penetration.

Mistake 5: Insulation Reinstated Badly After Maintenance

Insulation stripped for a valve change and reinstated by whoever was available, without proper lapping, sealing, or end treatment. That location becomes the plant's next CUI failure.

Prevention: Treat insulation reinstatement as a controlled activity with a specification and inspection sign-off, not a clean-up task.

Mistake 6: Insulating Lines That Do Not Need It

Insulation applied purely for personnel protection on lines with no thermal requirement, creating a CUI mechanism for no process benefit.

Prevention: Review the reason for every insulated line. Consider guarding or mesh cages for personnel protection instead.

Mistake 7: Inspecting Randomly Instead of by Risk

Inspection budget spread evenly across the plant. High-risk supports, penetrations, and cycling lines get the same attention as low-risk continuous hot lines.

Prevention: Use risk-based targeting per API RP 583 / 580. Concentrate on supports, penetrations, terminations, low points, and cyclic circuits.

Mistake 8: Using Thickness Methods to Look for ESCC

Pulsed eddy current survey run on stainless lines and reported clean, giving false confidence — ESCC does not produce measurable wall loss.

Prevention: For stainless, use insulation removal plus surface NDE (PT or eddy current) where ESCC is credible.

Supply from Kasko Makine

Kasko Makine supplies piping materials, replacement components, and support hardware for CUI management and insulated piping systems:

Piping materials:

• Carbon steel pipe (A106, A53) for replacement of CUI-affected sections
• Stainless steel pipe (304/304L, 316/316L)
• Duplex and super duplex for chloride-severe and coastal service
• Alloy steel pipe (A335) for high-temperature lines
• Fittings, flanges, and branch connections in matching grades

Support and insulation hardware:

• Pipe shoes sized for insulation thickness (hot and cold service)
• Insulated / cold shoes with load-bearing insulation inserts
• Insulation supports, standoffs, and rings
• Guides, anchors, and clamps compatible with insulated systems
• Wear pads and isolation pads (PTFE, elastomer) to prevent dissimilar-metal contact
• Stainless and galvanised banding and hardware

See Pipe Supports & Hangers for support selection.

Engineering support:

• Material selection for CUI-prone service
• Duplex upgrade evaluation for chloride environments
• Shoe and support height matching to insulation thickness
• Dissimilar-metal isolation specification
• Replacement material specification for CUI-affected circuits

Certification: EN 10204 Type 3.1/3.2 material test certificates, PMI, heat traceability, NACE MR0175 where required

Logistics: Piping materials and support hardware shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard materials 4-8 weeks; alloy, duplex, and fabricated supports 8-16 weeks.

Need piping or support components for insulated or CUI-affected lines? Send us the line specification, operating temperature range and cycling profile, environment (coastal, wash-down, marine), insulation thickness, and the material grade required to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll confirm material suitability, size support components to your insulation, and provide a quotation within 48 hours.

Continue Reading: Piping & Integrity Guides

• Carbon Steel Pipe — Pipe grades and specifications
• Stainless Steel Pipe — Austenitic grades and their limits
• Duplex & Super Duplex Pipe — Chloride SCC resistance
• Pipe Supports & Hangers — Insulated shoes and support detailing
• Heat Exchanger Cleaning & Maintenance — Related integrity management
• Industrial Boilers & Steam Systems — Insulation on steam service
• Material Test Certificates: EN 10204 3.1 vs 3.2 — Certification for replacement materials

Frequently Asked Questions

Q: What is corrosion under insulation (CUI)?
A: Corrosion under insulation is localised external corrosion of piping and equipment occurring beneath thermal insulation, caused by water penetrating the insulation system and contacting the metal surface. It is among the most costly and dangerous integrity problems in process plants because it is hidden — the jacketing looks intact and the line appears sound until a leak or failure occurs. Insulation makes the problem worse in three ways: it holds water against the surface instead of allowing it to drain and dry, it concentrates contaminants such as chlorides as water evaporates and is replenished, and it conceals the damage from visual inspection. API RP 583 is the governing recommended practice for CUI management.

Q: What temperature range is at risk for CUI?
A: For carbon steel and low alloy steels, the commonly cited susceptible range is approximately −12°C to 175°C (10°F to 350°F), with the most aggressive attack around 60–120°C, because that band keeps water liquid at the metal surface rather than boiling it off. For austenitic stainless steels the concern is external chloride stress corrosion cracking, generally in the range of roughly 50–150°C. Critically, continuously hot lines above the range are only low risk while they stay hot — any line that cycles, shuts down periodically, or operates intermittently passes through the susceptible band each time, and those wet-dry cycles are more damaging than steady exposure. High-temperature lines with regular shutdowns are frequently the worst offenders.

Q: Is stainless steel immune to corrosion under insulation?
A: No, and in some conditions stainless is at greater risk than carbon steel. Austenitic stainless grades such as 304 and 316 are susceptible to external chloride stress corrosion cracking (ESCC) under insulation, typically between about 50°C and 150°C, requiring tensile stress (residual welding stress is usually sufficient), chlorides, and moisture. Chlorides can leach directly from insulation material or come from marine atmosphere or process spills. ESCC produces branching cracks that can penetrate the wall with negligible general wall loss, meaning thickness-based inspection methods will not detect it. Prevention requires low-chloride insulation, protective coating on the steel, and in severe chloride environments consideration of duplex or super duplex grades.

Q: How do you prevent corrosion under insulation?
A: Prevention works in four layers. First and most important, a protective coating on the metal — insulation is not a corrosion barrier, the coating is. The system must be rated for maximum operating temperature including upsets and steam-out, with options including epoxy phenolic, thermal spray aluminium for high-temperature and cyclic service, and inorganic zinc or silicone systems. Second, insulation selected for low water retention and low chloride content, with cellular glass and aerogel performing well. Third, weatherproof jacketing with laps shedding downward, seams positioned on the lower half or side, and every penetration and termination sealed. Fourth, design that sheds water rather than trapping it — including questioning whether the line needs insulation at all, since personnel protection can often be achieved with guarding instead.

Q: How is CUI inspected?
A: CUI inspection is difficult because damage is hidden and full insulation removal is expensive, so risk-based targeting is used to prioritise circuits by temperature and cycling, material, coating and insulation age, environment, and consequence of failure. Methods include visual inspection of jacketing for damage, poor laps, missing caulk, and rust staining at seams; insulation stripping, which remains the definitive approach; pre-planned inspection windows at high-risk points; profile (tangential) radiography imaging the wall through insulation; pulsed eddy current for screening average wall thickness without removal; guided wave ultrasonics for long runs; and infrared thermography to locate wet insulation. For stainless steel, thickness methods will not detect ESCC — insulation removal plus surface NDE such as dye penetrant is required.

Q: Where does CUI occur most often?
A: CUI concentrates where water enters and collects rather than uniformly along a line. Water entry points include damaged or poorly lapped jacketing, seams positioned on the upper half of horizontal pipe, penetrations at nozzles, instruments, vents and drains, terminations at flanges and valves, and degraded caulking. Water collection points include pipe supports and hangers — the classic CUI location, because supports interrupt the vapour barrier and hold water — plus low points, dead legs, the 6 o'clock position on horizontal lines, and vessel bottoms and skirts. Environmental factors add risk beneath cooling tower drift and steam vents, in wash-down areas, and in coastal locations. Poorly reinstated insulation after maintenance is another frequent origin.
