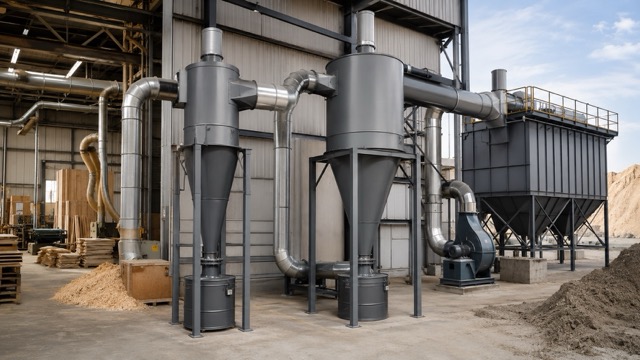

Cyclone Separators: Design, Sizing & Industrial Applications Guide

Quick Answer

A cyclone separator removes particulate from an airstream using centrifugal force — no filter media, no moving parts, no compressed air required. High-efficiency cyclones (long body, small inlet) capture particles down to approximately 5 microns at 80–95% efficiency, while high-throughput cyclones (shorter body, larger inlet) handle massive airflows at lower efficiency. Cyclones are most commonly used as pre-separators upstream of cartridge or baghouse collectors to remove coarse and abrasive material before primary filtration — extending filter life dramatically while reducing operating cost. They are also used standalone for woodworking chip collection, sandblast media recovery, pneumatic conveying material recovery, and any application where particles are predominantly larger than 5 microns.

A cyclone separator is the simplest and most reliable dust collection equipment ever designed. No filter media to replace. No bags to clean. No compressed air required. No moving parts. Just a steel cone, a tangential inlet, and centrifugal force doing the work of separation.

For applications dominated by coarse and abrasive particulate — woodworking shops processing chip and shavings, sandblast operations recovering blast media, grain mills handling whole grain, foundries handling shake-out sand, cement plants preheating raw meal — cyclones outperform any other collector type in cost, simplicity, and durability. They handle particle abrasion that destroys filter bags within months. They handle high temperatures that melt synthetic media. They handle dust loads that bury cartridge collectors. They cost a fraction of the equivalent baghouse or cartridge installation.

But cyclones cannot meet modern emissions standards alone. A 90% efficient cyclone still allows 10% of dust mass to escape — which for fine particulate is a major air quality and regulatory problem. This is why the most common cyclone application today is not standalone collection but pre-separation — installed upstream of a cartridge or baghouse to remove the coarse fraction before primary filtration. The cyclone-plus-primary-filter combination delivers the best of both: cyclone economy for the bulk material, cartridge or baghouse precision for the fine particulate.

This guide covers cyclone design (reverse-flow tangential — the dominant industrial type), high-efficiency vs high-throughput configurations, the cut point and efficiency curves that define performance, sizing methodology, applications across industries, the cyclone vs cartridge vs baghouse decision framework, and specification details for procurement.

For complete coverage of all five collector types and how cyclones fit among them, see our Dust, Mist & Fume Collectors Pillar Guide. For the cartridge and baghouse deep-dives that often pair with cyclone pre-separation, see Cartridge Dust Collectors: Complete Guide and Baghouse Dust Collectors: Filter Bags Guide.

How a Cyclone Separator Works

A cyclone separator removes particulate from an airstream using centrifugal force. The physical mechanism is simple:

1. Tangential inlet. Dust-laden air enters the cyclone through an inlet positioned tangentially to the cylindrical body — at the wall, not pointed at the center. This forces the air into a circular flow path.

2. Outer vortex. The air spins in a downward spiral along the inner wall of the cyclone — the "outer vortex." Velocity in this vortex is high, generating strong centrifugal force on suspended particles.

3. Centrifugal separation. Heavier particles cannot follow the tight spiral path; centrifugal force throws them outward against the cyclone wall. The particles strike the wall, lose velocity, and slide down due to gravity.

4. Particle collection. Particles falling down the cyclone wall enter the conical section at the bottom, then drop into a hopper through a sealed discharge opening.

5. Inner vortex reversal. At the bottom of the cone, the air reverses direction and forms a smaller "inner vortex" spinning upward through the center of the cyclone.

6. Clean air discharge. The inner vortex exits through a central pipe at the top of the cyclone — called the "vortex finder" or "exit tube." This pipe extends down into the cyclone body to prevent freshly-entered air from short-circuiting directly to the outlet.

7. Continuous operation. The cycle is continuous. Dust-laden air enters, particles separate to the wall and drop, clean air exits the top. No batch cleaning required.

The mechanism is purely physical — no filter, no charge, no chemical. This is why cyclones have no consumables to replace and no moving parts to wear out.

Reverse-Flow vs Uniflow Cyclones

Two basic cyclone configurations exist:

Reverse-Flow Cyclones (Standard Industrial Type)

• Dirty air enters tangentially at the top

• Outer vortex spirals downward

• Inner vortex reverses and spirals upward

• Clean air exits at the top

• This is the dominant industrial design used in 95%+ of installations

Uniflow / Straight-Through Cyclones

• Air enters at one end and exits at the other (no reversal)

• Dust separates radially during travel through the cyclone

• Less common in industry

• Used primarily where compact axial design matters (some gas turbine applications, certain pre-cleaners)

For all standard industrial dust collection applications discussed in this guide, "cyclone" means reverse-flow cyclone.

High-Efficiency vs High-Throughput Designs

Within the reverse-flow family, two design extremes exist with different performance characteristics:

High-Efficiency Design (Stairmand-Type)

Configuration:

• Long cylindrical body relative to diameter (typical L/D ratio 4–6)

• Smaller inlet relative to body (smaller inlet area = higher inlet velocity = stronger centrifugal force)

• Longer conical section

• Smaller vortex finder diameter

Performance:

• Cut point (d50): approximately 5 microns

• Efficiency at 10 microns: 90-95%

• Efficiency at 5 microns: 50%

• Efficiency at 1 micron: <20%

• Higher pressure drop (typically 8-15 inches WG)

• Lower throughput per unit body size

Best for:

• Standalone collection of medium-fine particulate

• Maximum capture efficiency from a single cyclone

• Applications where cyclone is the only collector

High-Throughput Design

Configuration:

• Shorter body relative to diameter (typical L/D ratio 2-3)

• Larger inlet relative to body

• Shorter conical section

• Larger vortex finder

Performance:

• Cut point (d50): approximately 15-20 microns

• Efficiency at 30 microns: 85-90%

• Efficiency at 10 microns: 50-60%

• Efficiency at 5 microns: <30%

• Lower pressure drop (typically 3-8 inches WG)

• Higher throughput per unit body size

Best for:

• Pre-separation before cartridge or baghouse

• Massive airflow applications where multiple high-efficiency cyclones would be impractical

• Coarse particulate where high-efficiency design is overkill

Multi-Cyclone Arrangements

For very high CFM applications, multiple smaller cyclones are arranged in parallel. Examples:

Cyclone bundles — multiple identical small-diameter cyclones in a manifold housing. Common in industries like grain handling, where a single large cyclone would be impractical and multiple small high-efficiency cyclones provide better performance.

Series cyclones — primary cyclone (high-throughput) followed by secondary cyclone (high-efficiency). The primary captures bulk coarse material; the secondary captures the finer fraction that escaped the primary. Common in cement plant preheaters and mineral processing.

Cyclone arrays in cement plants — multiple-stage cyclone arrangements (typically 4-6 stages) used as preheaters in cement clinker production. Each stage performs partial separation while transferring heat from kiln exhaust gas to incoming raw meal. These are not just dust collectors — they are critical process equipment for the cement plant.

Cut Point (d50): The Key Performance Metric

The cut point or d50 is the particle diameter at which the cyclone captures exactly 50% of incoming particles. It is the industry-standard performance metric.

• Particles larger than the cut point are captured at progressively higher efficiency (approaching 100% for large particles)

• Particles smaller than the cut point pass through at progressively higher rates (approaching 100% bypass for very fine particles)

Typical Cut Points by Cyclone Type

Efficiency Curve

For any specific cyclone, the efficiency curve plots collection efficiency against particle size. The curve characteristics:

• Steep rise between cut point and 10× cut point (most particles captured in this size range)

• Plateau above 10× cut point (essentially 100% capture for very large particles)

• Sharp drop below cut point (particles smaller than d50 are progressively poorly captured)

For procurement: ask the cyclone supplier for the efficiency curve, not just the cut point. The shape of the curve matters as much as the cut point itself.

Cyclone Components

A standard industrial cyclone has six main components:

1. Inlet (Tangential)

The opening where dust-laden air enters the cyclone body. Inlet design choices:

• Rectangular tangential inlet — most common; simple to fabricate; good performance

• Vane inlet — uses fixed vanes to impart swirl; better velocity profile but more expensive

• Helical inlet — wraps around the body; complex geometry but high performance

• Wedge inlet — gradual entry transition; reduces inlet pressure loss

Inlet area is critical to performance. A smaller inlet (relative to body diameter) creates higher inlet velocity and stronger centrifugal force — but also higher pressure drop.

2. Cyclone Body (Cylindrical Section)

The straight cylindrical portion of the cyclone. Provides the residence time for outer vortex formation and particle separation. Standard body dimensions:

• Diameter: typically 200mm to 4000mm for industrial cyclones

• Length: 1.5-3× the body diameter (longer for high-efficiency, shorter for high-throughput)

• Wall thickness: 3-8mm carbon steel typical, thicker for abrasive applications

3. Conical Section (Cone)

The gradually narrowing section at the bottom of the cyclone. Functions:

• Accelerates downward gas velocity (increases tangential velocity for better separation)

• Directs collected dust to the discharge

• Reverses gas flow from outer to inner vortex

Cone angle is typically 15-30° from vertical. Steeper cones (smaller angles) are used for high-efficiency designs.

4. Vortex Finder (Exit Tube)

The central pipe extending downward from the top into the cyclone body. Critical for performance:

• Diameter: typically 30-50% of body diameter

• Length below the inlet bottom: 0.5-1.0× the body diameter

• Material: thick wall steel for abrasive applications

The vortex finder prevents fresh inlet air from short-circuiting directly to the outlet, forcing all air to complete the outer-vortex-then-inner-vortex path.

5. Discharge (Dust Hopper Connection)

The opening at the bottom of the cone where collected dust exits. Must include:

• Air-tight seal — even small leaks create reverse flow that re-entrains collected dust

• Rotary valve (most common) for continuous discharge

• Dual-flap valve as alternative

• Slide gate for batch applications

The seal at the discharge is the most critical maintenance point on a cyclone. Even a small leak (rotary valve seal degradation, gasket failure) destroys collection efficiency.

6. Hopper

Storage volume below the discharge for collected dust. Standard configurations:

• Pyramid hopper with 60° slope (standard)

• Trough hopper for screw conveyor discharge

• Drum collector for batch operation

Sizing a Cyclone Separator

Cyclone sizing follows a different methodology than filter-based collectors. The key parameters:

Step 1: Determine Total Airflow (CFM)

Sum the airflow requirements of all sources. Cyclones can handle very large CFM in single units, so a single cyclone often handles the entire system.

Step 2: Select Cyclone Type (Efficiency vs Throughput)

Based on the application:

• Standalone collection of medium-coarse dust: High-efficiency design

• Pre-separation before cartridge/baghouse: High-throughput design (or moderate-efficiency)

• Sandblast media recovery: High-efficiency (need to capture media particles)

• Woodworking chip collection: Moderate-efficiency (chips are large; full collection unnecessary)

• Cement plant preheater: Multi-stage arrangement (specific to process)

Step 3: Calculate Required Body Diameter

The body diameter is determined by the inlet velocity and CFM:

Body diameter ≈ √(CFM × 144 / (3.14 × V × R))

Where:

• CFM = volumetric flow rate

• V = inlet velocity (typically 3,000-4,500 FPM for industrial cyclones)

• R = ratio of inlet area to body cross-section (typically 0.15-0.25 for high-efficiency, 0.30-0.45 for high-throughput)

For practical purposes, use scaling rules from a standard reference cyclone:

For a larger cyclone, scale the flow rate proportionally to the body diameter squared:

Q_new / Q_standard = (D_new / D_standard)²

Example: For a high-efficiency cyclone with body diameter of 1000mm: Q_new = 223 m³/h × (1000/203)² ≈ 223 × 24.3 = 5,400 m³/h (3,180 CFM)

Step 4: Verify Cut Point for Application

Calculate the cut point for the sized cyclone and verify it matches the application requirement. The cut point scales with cyclone diameter:

d50_new / d50_standard = (D_new / D_standard)^0.5

A larger cyclone has a larger cut point — meaning it captures less fine particulate per unit body size. This is why multiple smaller cyclones in parallel often outperform a single large cyclone for the same total CFM.

Step 5: Calculate Pressure Drop

Pressure drop is typically 4-15 inches WG (1-3.7 kPa) for industrial cyclones:

• Low end: high-throughput designs at lower inlet velocity

• High end: high-efficiency designs at higher inlet velocity

The pressure drop must be added to the fan static pressure requirement. A 10-inch WG pressure drop on a 10,000 CFM system requires approximately 25 HP of fan power dedicated just to the cyclone (excluding other ductwork and filter losses).

Step 6: Verify Practical Constraints

• Available headroom for vertical cyclone height

• Floor space for hopper and discharge equipment

• Maintenance access for dust removal

• Material temperature compatibility (carbon steel: 250°C; stainless: 400°C; specialty alloys: higher)

Complete Sizing Example

Application: Woodworking facility with 4 large machines (planers, jointers, table saws) producing chips and dust, total 8,000 CFM, ambient temperature, mild to non-abrasive wood dust.

Design choice: Cyclone pre-separator before cartridge collector (final filtration). Cyclone removes ~85% of total mass as coarse chips and large particles; cartridge handles the fine fraction.

Applications by Industry

Woodworking and Furniture Manufacturing

Typical configuration: Cyclone pre-separator + cartridge or baghouse final filter

Cyclone selection: High-throughput design, 800-1500mm diameter, 5,000-20,000 CFM per cyclone

Why cyclones win here: Wood chips and shavings are much larger than fine sanding dust. A cyclone removes the coarse material (which would damage filter media quickly) and lets the cartridge or baghouse handle only the fine dust. Filter life increases dramatically — sometimes 5-10× compared to using filters alone.

Real-world example: A 4-station woodworking shop generating 10 tonnes of chip waste per week. Without a cyclone, cartridge filters in the downstream collector would last 3-4 months. With a cyclone, the same cartridges last 18-24 months while the cyclone discharges chips continuously into a recyclable bin.

Sandblast Media Recovery

Typical configuration: Cyclone as primary recovery device

Cyclone selection: High-efficiency design, 600-1200mm diameter, sized to capture blast media

Why cyclones win here: The point is to recover and reuse blast media (silica, alumina, glass beads, garnet, steel grit). A cyclone separates blast media from fine spent media and contaminant fines. The media drops to the hopper for reuse; the fine waste continues to a baghouse or cartridge for final disposal.

The cost savings are substantial — recovered media can be reused 10-15 times before needing replacement.

Pneumatic Conveying End-Point Recovery

Typical configuration: Cyclone at the discharge end of pneumatic conveying pipes

Cyclone selection: High-efficiency, sized for the conveyed material

Why cyclones win here: Pneumatic conveying transports bulk solids (cement, grain, mineral powders, food powders, plastic pellets) through pipelines using a high-velocity air stream. At the destination, the cyclone separates the material from the conveying air. The material falls into a silo or hopper; the (mostly clean) air discharges or returns through a final filter.

This is one of the most common industrial cyclone applications globally — every pneumatic conveying system needs an end-point separator.

Cement Plant Preheaters

Typical configuration: Multi-stage cyclone tower (4-6 cyclone stages)

Cyclone selection: Custom designed for cement process

Why cyclones win here: A cement plant preheater is not just a dust collector — it's process equipment that heats incoming raw meal to ~800-900°C using the hot exhaust gas from the kiln (1100-1450°C). Each cyclone stage performs partial separation while transferring heat. The combined arrangement achieves 99%+ overall separation while maximizing thermal efficiency.

Cement preheater cyclones are massive — typical body diameters of 5-7 meters, operating at 200,000-500,000 CFM per stage.

Grain Processing and Handling

Typical configuration: Cyclone at the receiving point or as standalone collector for low-fines applications

Cyclone selection: High-efficiency or multi-cyclone arrangement

Why cyclones win here: Grain dust is typically dominated by 50-500 micron particles (whole and broken kernels, hulls, chaff). High-efficiency cyclones capture this efficiently. For finer grain dust (e.g., flour milling), cyclones serve as pre-separation before baghouse final filtration.

Important note: Grain dust is combustible (NFPA 61 grain dust handling standard). Combustible dust assessment and explosion protection are mandatory.

Mineral Processing and Crushing

Typical configuration: Cyclone or multi-cyclone for fines recovery

Cyclone selection: High-efficiency, often in series or multi-cyclone arrangement

Why cyclones win here: Crushing and milling generate very high dust loads with broad particle size distribution. Cyclones handle the coarse fraction efficiently and recover valuable mineral fines. Material temperature can be elevated (just after crushing); cyclones handle hot dust that would damage filter media.

Material considerations: Abrasive minerals (silica, granite, ores) require abrasion-resistant cyclone construction — typically AR400 plate or wear-resistant ceramic-lined cyclones.

Foundry Shake-Out and Sand Handling

Typical configuration: Cyclone pre-separator + baghouse final filter

Cyclone selection: High-throughput, abrasion-resistant construction

Why cyclones win here: Foundry sand particles are 50-500 microns and very abrasive. Without cyclone pre-separation, foundry baghouse filters fail within months. Cyclones remove the bulk of sand particles, and the baghouse handles only the finer dust.

Food Processing

Typical configuration: Cyclone in pneumatic conveying systems for ingredients

Cyclone selection: High-efficiency, stainless steel construction

Why cyclones win here: Food powders (flour, sugar, cocoa, dry mixes) are typically pneumatically conveyed between process steps. Cyclones at the destination recover the product without contamination from filter media. Sanitary stainless construction is mandatory.

Important note: Most food powders are combustible (sugar dust explosions are well-documented). Explosion protection per NFPA 652 and food-specific standards (NFPA 61) mandatory.

The Cyclone vs Cartridge vs Baghouse Decision

When designing a dust collection system, the first decision is whether a cyclone is appropriate. The decision framework:

Cyclone Alone (No Downstream Filter)

Appropriate when:

• All particles are larger than 10-15 microns

• Emissions regulations allow some particulate discharge (10-30 mg/m³ typical)

• Operating cost minimization is critical

• Particles must be recovered (sandblast media, pneumatic conveying)

• Hostile environment unsuitable for filter media (extreme temperature, abrasion)

Common standalone applications: Sandblast media recovery, woodworking chip collection (with downstream simple bag filter for fines), pneumatic conveying end-point separation, coarse foundry dust.

Cyclone + Cartridge Collector

Appropriate when:

• Mix of coarse and fine particulate

• Need high-efficiency final filtration (welding, fine industrial dust)

• Want to extend cartridge life dramatically

• CFM range 1,000-50,000

Common configurations: Woodworking shops (cyclone for chips + cartridge for sanding dust); foundries (cyclone for sand + cartridge for fine fume); fabrication shops with welding and grinding.

Cyclone + Baghouse

Appropriate when:

• Very high CFM (50,000+) with mix of coarse and fine

• High temperatures (cyclone tolerates higher than cartridge)

• Heavy dust loading where cartridge would clog

• Cement, large foundry, power plant applications

Common configurations: Cement raw mill (cyclone + baghouse); large foundry exhaust; coal handling.

When Cyclones Are NOT Appropriate

• Very fine particulate dominated (welding fume, plasma cutting fume, pharmaceutical powders)

• Strict emissions regulations requiring 99%+ capture on all particle sizes

• Sticky or hygroscopic materials that adhere to cyclone walls and bridge the discharge

For these applications, go directly to cartridge or baghouse without cyclone pre-separation.

Material and Construction Options

Wear Protection for Abrasive Applications

Standard carbon steel cyclones erode in abrasive service. The wear concentrates at:

• Inlet (high velocity entry)

• Body just below inlet (highest tangential velocity)

• Cone bottom (particle impact during separation)

• Discharge (particles collecting at the outlet)

For abrasive applications, wear protection options:

• AR400 or AR500 abrasion-resistant steel — full body construction

• Refractory ceramic linings — bonded to interior surfaces in wear zones

• Hardenable alloys (e.g., Hardox) — for severe abrasion

• Polyurethane linings — for moderate abrasion in low-temperature applications

• Replaceable wear plates — bolted in place for periodic replacement

Common Specification Mistakes

After 15+ years supplying industrial dust collection equipment to manufacturing facilities, these are the most common cyclone procurement errors:

Mistake 1: Using Cyclone Alone for Fine Dust

Buyer specifies cyclone for fine dust application (welding fume, fine chemical dust, pharmaceutical powder) without downstream filtration. Cyclone passes 30-50% of the dust mass at fine particle sizes; emissions exceed regulations; air quality in shop is poor.

Prevention: Cyclones are not appropriate for fine particulate alone. Use cyclone only as pre-separator with cartridge or baghouse downstream, or specify cartridge/baghouse alone for fine particulate applications.

Mistake 2: Undersized Cyclone

Buyer specifies cyclone for nominal CFM but operates at peak conditions 30% higher. Inlet velocity exceeds design; pressure drop spikes; collection efficiency degrades; downstream filter fails to handle bypassed material.

Prevention: Size for peak operating conditions plus 10% safety factor. Most failures result from sizing for "average" CFM in applications with variable load.

Mistake 3: Discharge Air Leakage

Buyer specifies cyclone but neglects the discharge sealing. The slide gate or rotary valve has marginal sealing; air leaks reverse-flow back into the cyclone; collection efficiency drops by 30-50%.

Prevention: Specify rotary valve with positive sealing (not just slide gates) for continuous duty. Verify discharge sealing on commissioning. Air leakage at the discharge is the most common cyclone performance failure.

Mistake 4: Wrong Material for Abrasive Application

Buyer specifies standard carbon steel cyclone for foundry sand or mineral processing application. Body wears through within 6-12 months; cyclone fails mechanically; downtime to replace.

Prevention: For known abrasive applications, specify AR400 plate, ceramic lining, or hardenable alloys from initial procurement. Wear-resistant construction adds 30-50% to capital cost but extends service life 3-5×.

Mistake 5: Wrong Cyclone Type

Buyer specifies high-throughput cyclone where high-efficiency design is needed (e.g., for sandblast media recovery), or vice versa. Either too much pressure drop or insufficient capture efficiency.

Prevention: Define the application clearly: standalone medium-coarse collection (high-efficiency), pre-separation only (high-throughput), or specialty (e.g., pneumatic conveying recovery, which has specific design requirements).

Mistake 6: Ignoring Combustible Dust

Buyer specifies cyclone for grain, sugar, flour, fine metal dust, or other combustible material without combustible dust assessment. Dust accumulation in the cyclone creates explosion hazard; static electricity during operation provides ignition source.

Prevention: Assess combustible dust risk per NFPA 652. For combustible dust applications: ground the cyclone, install explosion vents (NFPA 68), include isolation devices, and verify all electrical equipment ratings.

Specification Template

PROJECT: [Project Name]
APPLICATION: [Pre-separation / Standalone / Specialty]
LOCATION: [Country, Facility]

PROCESS DETAILS:
- Source: [Description of dust source]
- Dust type: [Composition]
- Particle size: [Distribution range, μm]
- Bulk density: [kg/m³]
- Operating temperature: [°C continuous / peak]
- Combustibility: [NFPA classification]

CAPACITY:
- Total CFM: [Calculated]
- Inlet velocity target: [3,000-4,500 FPM]

CYCLONE TYPE:
- Configuration: [High-efficiency / High-throughput / Multi-cyclone]
- Body diameter: [mm]
- Body length: [Body × diameter ratio]
- Cone angle: [degrees]

PERFORMANCE TARGETS:
- Cut point (d50): [Target μm]
- Pressure drop: [Maximum, inches WG]
- Efficiency at specific particle size: [Required]

MATERIALS:
- Body material: [Carbon steel / Stainless / AR400 / Ceramic-lined]
- Wall thickness: [3-8mm typical, thicker for abrasive]
- Cone material: [Same or different]
- Inlet construction: [Replaceable wear plate / Welded fixed]

DOWNSTREAM CONNECTION:
- Discharge to: [Hopper / Rotary valve / Conveyor]
- Filtered exhaust to: [Cartridge / Baghouse / Atmosphere]
- Ductwork connections: [Sized for required velocity]

DISCHARGE EQUIPMENT:
- Type: [Rotary valve / Dual-flap / Slide gate]
- Manufacturer/model: [Mucon, Donaldson, ACS, etc.]
- Pressure rating: [Compatible with system]
- Air leakage rating: [Standard, low-leakage required]

SAFETY (if applicable):
- Explosion venting per NFPA 68 [Required / Not required]
- Isolation valves per NFPA 69 [Required / Not required]
- Grounding for electrostatic [Required for combustible dust]

DOCUMENTATION REQUIRED:
- General arrangement drawing
- Process flow diagram
- Manufacturing certifications
- Performance test report
- Electrical drawings (for instrumentation)
- O&M manual
- Spare parts list

DELIVERY:
- Required date: [Date]
- Shipping terms: [FOB / CIF / DDP]
- Delivery location: [Full address]

Supply from Kasko Makine

Kasko Makine supplies cyclone separators for industrial applications across woodworking, mineral processing, foundries, food processing, pneumatic conveying, sandblast operations, cement production, and pre-separation in cartridge and baghouse systems:

Standard configurations:

• Body diameters: 300mm to 4,000mm (specialty up to 7,000mm for cement preheaters)

• CFM range: 200 to 500,000+

• High-efficiency and high-throughput designs available

• Multi-cyclone configurations for very large CFM

Materials:

• Carbon steel A36 (standard)

• Stainless steel 304/316L (corrosive or hot service)

• AR400/AR500 abrasion-resistant plate (foundry, mineral)

• Ceramic-lined (severe abrasion)

• Insulated and refractory-lined (high temperature)

Construction:

• Welded steel construction

• Replaceable wear plates at high-wear zones

• Tangential inlet (rectangular or vane design as specified)

• Optional internal access doors for maintenance

• Standard ASME safety considerations

Auxiliary equipment:

• Rotary valves and slide gates (sourced from Mucon, Donaldson, ACS or equivalent)

• Industrial fans (direct-drive and belt-drive)

• Ductwork and capture systems

• Explosion vents and isolation systems (NFPA 68/69 compliant)

• Hoppers and discharge equipment

Engineering services:

• Application analysis and cyclone selection

• Cut point and efficiency calculations

• Body diameter sizing

• Combustible dust risk assessment per NFPA 652

• 3D system layout and ductwork design

• Performance prediction modeling

Documentation per shipment:

• General arrangement drawings

• Process flow diagrams

• Material test certificates

• Welding procedure qualifications

• Hydrostatic test reports (for pressure applications)

• Performance test reports

• O&M manuals

Request cyclone separator pricing — send us your application details (industry, total CFM, dust characteristics including size distribution, operating temperature, combustibility, abrasiveness, and delivery location) to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. Our engineering team will recommend the optimal cyclone configuration with complete sizing analysis and pricing within 48 hours.

Continue Reading: Dust, Mist & Fume Collector Series

This cyclone separator guide is part of our comprehensive series:

• Dust, Mist & Fume Collectors: Complete Guide — The pillar covering all five collector types

• Cartridge Dust Collectors: Complete Guide — Cartridge collector deep-dive (standard for cyclone+cartridge combinations)

• Baghouse Dust Collectors: Complete Guide — Baghouse for heavy industrial applications

• Welding Fume Extraction: Complete Guide — Welding fume specific systems

• Oil Mist Collectors for CNC Machining — Coming next

• Combustible Dust & NFPA 652 Compliance — Coming soon

• Fume Extractors: Portable & Fixed-Arm — Coming soon

FAQ SCHEMA

Q: How does a cyclone separator work?
A: A cyclone separator removes particles from an airstream using centrifugal force. Dust-laden air enters tangentially at the top of the cyclone body, spinning in a downward spiral along the inner wall. Centrifugal force throws heavier particles outward against the wall; particles slide down due to gravity and collect in the hopper at the bottom. The air reverses direction at the bottom and flows upward through a central pipe (vortex finder) at the top. No filter media, no moving parts, no compressed air required — just centrifugal separation.

Q: What is the cut point of a cyclone separator?
A: The cut point or d50 is the particle diameter at which the cyclone captures exactly 50% of incoming particles. It is the industry-standard performance metric for cyclones. Particles larger than the cut point are captured at progressively higher efficiency (approaching 100% for large particles). Particles smaller than the cut point pass through at progressively higher rates. Standard industrial cyclones have cut points of 5-25 microns, depending on design. High-efficiency cyclones have lower cut points (better fine particle capture); high-throughput cyclones have higher cut points (less efficient on fine dust but handle more volume).

Q: When should I use a cyclone separator instead of a cartridge or baghouse?
A: Use a cyclone alone when all particles are larger than 10-15 microns, emissions regulations allow some particulate discharge, operating cost minimization is critical, or particles must be recovered (sandblast media, pneumatic conveying). Use a cyclone as pre-separator with cartridge or baghouse downstream when you have a mix of coarse and fine particulate — the cyclone removes the coarse fraction, extending filter life dramatically while the cartridge or baghouse handles the fine dust. Do NOT use cyclones alone for fine particulate dominated by particles smaller than 5 microns (welding fume, fine chemical dust, pharmaceutical powders).

Q: What is the difference between high-efficiency and high-throughput cyclones?
A: High-efficiency cyclones have longer bodies relative to diameter (L/D ratio 4-6), smaller inlets, and longer cones. They achieve lower cut points (5-10 microns) but at higher pressure drop (8-15 inches WG). High-throughput cyclones have shorter bodies (L/D 2-3), larger inlets, and shorter cones. They handle more airflow per unit body size but with higher cut points (15-25 microns) and lower pressure drop (3-8 inches WG). Use high-efficiency for maximum particle capture; use high-throughput for pre-separation or where pressure drop must be minimized.

Q: How long does a cyclone separator last?
A: A properly sized cyclone separator for non-abrasive applications typically lasts 20-30 years with minimal maintenance. There are no consumables to replace and no moving parts to wear. The discharge valve (rotary valve) requires periodic seal replacement every 1-3 years. For abrasive applications (foundry sand, mineral processing), the body wears at the inlet and inner wall — wear-resistant construction (AR400 plate or ceramic lining) extends service life. Properly designed and constructed, a cyclone is the most durable type of industrial dust collection equipment.

Q: Are cyclone separators suitable for combustible dust?
A: Cyclones can be used for combustible dust applications (grain, flour, sugar, fine metal dust) but require explosion protection per NFPA 652. The cyclone itself must be grounded to dissipate electrostatic charges (which can be ignition source). Explosion vents per NFPA 68 must be installed to relieve pressure if an explosion occurs. Isolation valves per NFPA 69 prevent flame propagation through ductwork. Conductive (grounded) construction is mandatory. For combustible dust applications, full NFPA compliance review is required during system design.

Q: How much pressure drop does a cyclone separator add?
A: Industrial cyclone separators typically have pressure drops of 4-15 inches WG (1-3.7 kPa). High-efficiency cyclones have higher pressure drops (8-15 inches WG); high-throughput cyclones have lower (3-8 inches WG). The pressure drop must be added to the total system static pressure when sizing the fan. A 10-inch WG cyclone pressure drop on a 10,000 CFM system requires approximately 25 HP of fan power just for the cyclone — significant operating cost. For continuous-duty installations, evaluate the trade-off between cyclone efficiency and pressure drop carefully.
