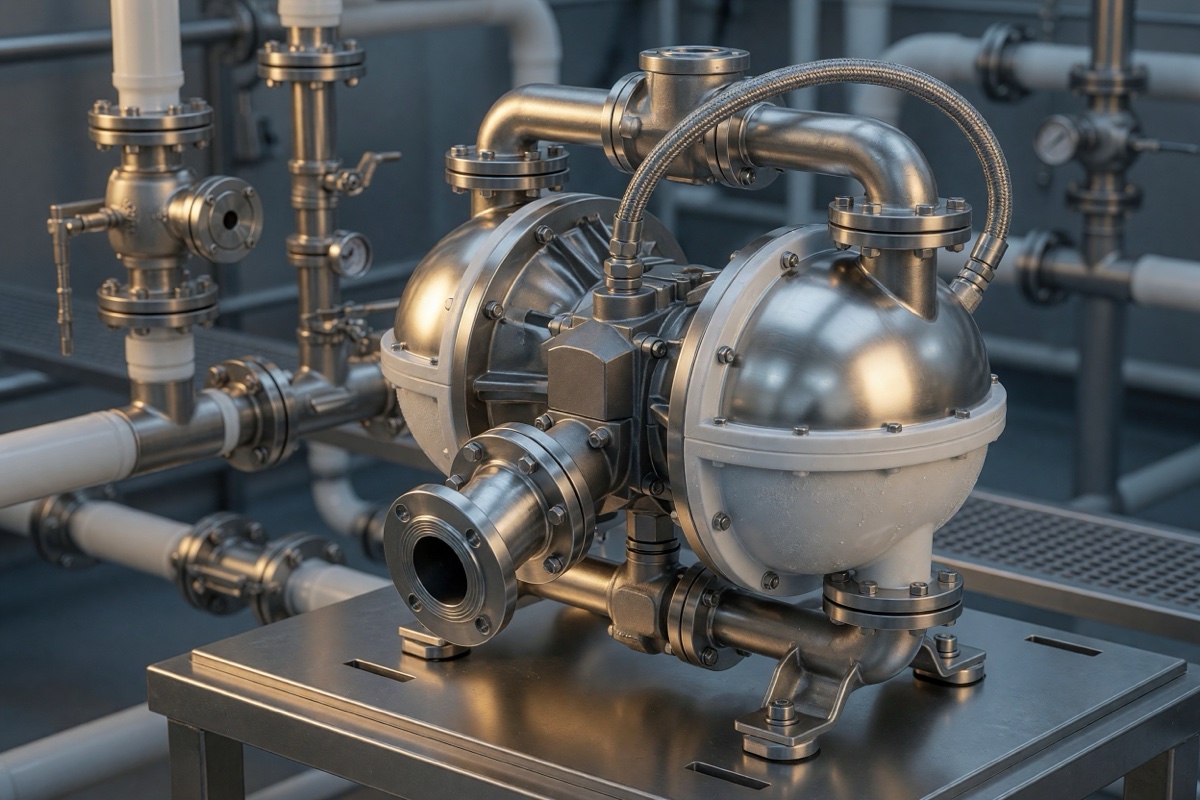

Diaphragm Pumps (AODD): How They Work, Types & Selection Guide

Quick Answer

An air operated double diaphragm (AODD) pump is a reciprocating positive displacement pump driven by compressed air rather than an electric motor. Two flexible diaphragms mounted on a common shaft move back and forth inside two liquid chambers: compressed air alternately pressurises the back of each diaphragm, so as one diaphragm pushes fluid out on the discharge stroke, the opposite diaphragm draws fluid in — an air valve automatically shifts to reverse the cycle, giving continuous flow. Four internal check valves (ball-and-seat or flap type) direct the flow. Because the diaphragm is the only moving part touching the liquid and there is no shaft seal, AODD pumps handle fluids that destroy other pumps: abrasive slurries and sludges, corrosive acids, shear-sensitive products, and high-viscosity liquids. They are self-priming from a dry start, can run dry without damage, and are inherently safe for flammable service (no electric motor; air- or nitrogen-driven, ATEX-compatible). Their main limitations are noise, pulsating flow, air consumption cost, icing at the air exhaust, and a pressure ceiling set by the air supply (typically ~7 bar / 100 psi). Material selection — body (polypropylene, PVDF, aluminium, cast iron, stainless) and diaphragm (PTFE, Santoprene, Buna, EPDM, Viton) — is the critical specification decision.

Some fluids defeat ordinary pumps. A centrifugal pump handling abrasive slurry wears its impeller away. A pump with a mechanical seal handling aggressive acid leaks at the seal. A high-shear pump handling latex, paint, or a food emulsion destroys the product it is moving. A pump that must sit idle then start against a dry line burns out its seals.

The air operated double diaphragm pump exists for exactly these situations. It has no shaft seal to leak, no impeller to erode, no electric motor to create an ignition risk, and a gentle pumping action that doesn't shear the product. It will self-prime from dry, run dry indefinitely without damage, be deadheaded against a closed valve without harm, and be picked up and moved anywhere a compressed air line reaches. That versatility is why AODD pumps appear in chemical plants, mines, wastewater works, paint shops, food factories, and construction sites alike.

The trade-offs are real too: they are noisy, deliver pulsating rather than smooth flow, consume compressed air (an expensive utility), and are limited in pressure by the air supply. Specifying one well means understanding both sides.

For plant engineers, maintenance teams, and procurement managers — this guide covers AODD diaphragm pumps: how they work, materials of construction, where they excel and where they don't, and how to select one.

For the wider pump families, see Industrial Pumps Guide and Centrifugal Pumps, and Positive Displacement Pumps — the family the AODD pump belongs to.

How an AODD Pump Works

The pump has two liquid chambers and two air chambers, separated by two flexible diaphragms connected by a common shaft through the centre section.

1. Compressed air enters the centre section, where an air distribution valve directs it behind diaphragm No. 1.
2. Discharge stroke: Air pressure pushes diaphragm No. 1 outward, forcing liquid out of chamber 1 through the outlet check valve into the discharge manifold.
3. Suction stroke (simultaneous): Because the diaphragms share a shaft, diaphragm No. 2 is pulled inward at the same time, creating a vacuum in chamber 2. Atmospheric pressure forces liquid into the inlet manifold, lifting the inlet check ball off its seat and filling chamber 2.
4. The air valve shifts automatically at the end of the stroke, venting chamber 1 and pressurising chamber 2 — reversing the cycle.
5. Continuous flow results from the alternating strokes, with four check valves (two inlet, two outlet) ensuring one-way movement.

A fixed volume of liquid — equal to the diaphragm displacement — is moved per stroke, which is what makes it a positive displacement pump: flow stays broadly constant regardless of discharge pressure.

The four internal check valves are the heart of that one-way action; for the same principle in pipeline-scale hardware, see Check Valves: Types & Selection.

Why the Diaphragm Lasts

Because air pressure acts across the entire surface of the diaphragm, the diaphragm is pressure-balanced during pumping. This removes the mechanical stress present in mechanically-driven diaphragm pumps and significantly extends diaphragm life.

Main Components

• Suction and discharge manifolds
• Two diaphragms on a common shaft
• Centre section with the air distribution valve
• Four check valves (ball-and-seat or flap)
• Air inlet and muffled exhaust

Key Advantages

Sealless design. The diaphragm is the only moving part contacting the liquid. No shaft seal means no seal leakage, no seal flush system, and no seal maintenance — a decisive advantage for toxic, corrosive, or expensive fluids.

Self-priming from dry. AODD pumps prime themselves from a dry start and work in both flooded-suction and suction-lift installations.

Run dry safely. They run dry without significant damage or heat build-up — unlike centrifugal pumps, which destroy themselves within minutes.

Deadhead safely. Because compressed air limits the maximum pressure the pump can develop, an AODD pump can be run against a closed discharge valve without over-pressuring the system. It simply stalls and restarts when flow resumes — ideal for on-demand and intermittent duty.

Handles difficult fluids. Abrasives, slurries, sludges, high viscosity, and solids in suspension (including line-size solids in larger models).

Gentle on shear-sensitive products. The low-shear pumping action suits latex, paints, emulsions, flocculants, and food products.

Intrinsically safe. Driven by compressed air (or nitrogen, or natural gas), with no electric motor — suitable for ATEX classified zones and flammable service.

Portable and simple. Anywhere there is compressed air, the pump can be installed and later moved to a different duty. Few parts, easy maintenance.

Submersible option. With suitable non-wetted materials, AODD pumps can be submerged.

Limitations

• Noisy — the air exhaust and reciprocating action produce significant noise (mufflers help)
• Pulsating flow — inherent to reciprocating action; a pulsation dampener smooths it where steady flow matters
• Air consumption — compressed air is an expensive utility; running cost is higher than an equivalent electric pump
• Pressure limited — typically to around 7 bar (100 psi), set by the air supply (2:1 and higher ratio models exist)
• Icing — rapid air expansion at the exhaust can freeze moisture, especially in humid conditions or continuous duty
• Diaphragm is a wear part — requires periodic scheduled replacement

Materials of Construction

Material selection is the critical specification decision, and it splits into two parts.

Body / Wetted Housing

Diaphragm and Elastomers

The rule: verify both the body and the elastomer against the actual fluid, concentration, and temperature — a body material that resists the chemical is useless if the diaphragm swells or degrades. Use a chemical compatibility chart and confirm with the manufacturer for unusual media.

For chemical service context, see Chemical Factory Setup.

Applications

Filter press feed is a classic AODD duty: the pump automatically slows and stalls as the press fills and back-pressure rises, then resumes — behaviour no centrifugal pump can match.

Selection Process

1. Define the fluid — chemical name and concentration, temperature, viscosity, solids content and particle size, abrasiveness, shear sensitivity
2. Define the duty — required flow rate and discharge pressure, suction lift, duty cycle (continuous or intermittent)
3. Check pressure limits — standard AODD tops out around 7 bar; use a higher-ratio model if more is needed
4. Select body material against the chemistry
5. Select diaphragm, ball, and seat elastomers against the chemistry and temperature
6. Size the port — larger ports pass larger solids; match to the largest particle
7. Verify air supply — required air pressure and flow (scfm/Nm³/h); undersized air supply is the most common performance complaint
8. Add accessories — pulsation dampener for smooth flow, muffler for noise, leak detection for hazardous fluids, stroke counter, air filter/regulator/lubricator

Common Specification Mistakes

After 15+ years supplying pumps to industrial projects:

Mistake 1: Wrong Diaphragm Elastomer

Body material verified against the chemical but the diaphragm is not. The diaphragm swells, hardens, or dissolves — the pump fails in weeks.

Prevention: Check body and every elastomer (diaphragm, balls, seats, O-rings) against the fluid, concentration, and temperature.

Mistake 2: Undersized Air Supply

Pump specified correctly but the compressed air line is too small or the compressor lacks capacity. The pump runs slow and never reaches rated flow.

Prevention: Calculate the air demand (scfm) at the required flow and pressure, and size the air line, filter, and regulator accordingly.

Mistake 3: Ignoring Pulsation

AODD installed on a line feeding an instrument, filter, or dosing point where smooth flow matters. Pulsation causes measurement error and equipment fatigue.

Prevention: Install a pulsation dampener where steady flow is required.

Mistake 4: Expecting High Pressure

Buyer expects the AODD to deliver pressure beyond the air supply limit. It stalls.

Prevention: Standard AODD pumps are limited to roughly the air supply pressure (~7 bar). For higher pressure, specify a ratio pump or a different pump type.

Mistake 5: Overlooking Running Cost

AODD selected on purchase price for a continuous high-flow duty. Compressed air cost over the year exceeds the pump price several times.

Prevention: For continuous high-volume duty on a clean fluid, compare lifecycle cost against an electric centrifugal or PD pump. Reserve AODD for difficult fluids, intermittent duty, and hazardous areas where its advantages justify the air cost.

Mistake 6: Icing in Continuous Service

Pump runs continuously in humid conditions; the exhaust ices up and the pump stalls.

Prevention: Use dry, filtered air; fit an appropriate muffler; consider anti-icing air valve designs for continuous duty.

Supply from Kasko Makine

Kasko Makine supplies air operated double diaphragm pumps and accessories for chemical, water, mining, food, and industrial applications:

Pump range:

• AODD pumps ¼" through 3" port sizes
• Metallic (aluminium, cast iron, 316 stainless) and non-metallic (PP, PVDF, conductive) bodies
• Ball-and-seat and flap valve designs
• High-pressure (2:1 ratio) models
• Hygienic / sanitary models
• ATEX-compliant configurations
• Drum and container unloading pumps

Elastomers: PTFE, Santoprene, Buna-N, EPDM, Viton, Neoprene

Accessories: pulsation dampeners, air filter/regulator units, mufflers, leak detection, stroke counters, trolleys and stands, spare diaphragm kits

Engineering support:

• Chemical compatibility review (body and all elastomers)
• Flow, pressure, and air consumption sizing
• Solids handling and port sizing
• Lifecycle cost comparison vs electric pumps
• Spare parts and maintenance planning

Logistics: Diaphragm pumps shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard models 4-8 weeks; specialty materials and hygienic models 8-14 weeks.

Need diaphragm pumps? Send us your fluid (chemical, concentration, temperature, solids, viscosity), required flow and discharge pressure, suction conditions, available air supply, and any area classification to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll verify material compatibility, size the pump and air demand, and provide a quotation within 48 hours.

Continue Reading: Pump Guides

• Industrial Pumps Guide — All pump types and how to choose
• Centrifugal Pumps — The dominant pump family
• Positive Displacement Pumps — Gear, screw, lobe, and piston pumps
• Submersible Pumps — Immersed pump applications
• Check Valves: Types & Selection — The one-way valves inside every AODD pump
• Chemical Factory Setup — Chemical plant equipment context

Frequently Asked Questions

Q: How does an air operated double diaphragm (AODD) pump work?
A: An AODD pump uses two flexible diaphragms mounted on a common shaft, separating two liquid chambers from two air chambers. Compressed air enters the centre section where an air distribution valve directs it behind one diaphragm, pushing it outward and forcing liquid out of that chamber through an outlet check valve. Because both diaphragms share a shaft, the opposite diaphragm is simultaneously pulled inward, creating a vacuum that draws liquid into the second chamber. The air valve then shifts automatically, reversing the cycle. Four check valves (two inlet, two outlet, using ball-and-seat or flap designs) ensure one-way flow. A fixed volume equal to the diaphragm displacement moves per stroke, making it a positive displacement pump.

Q: What are the advantages of diaphragm pumps?
A: AODD pumps offer several distinctive advantages. They are sealless — the diaphragm is the only moving part contacting the liquid, so there is no shaft seal to leak or maintain. They self-prime from a dry start and run dry without damage or heat build-up. They can be deadheaded against a closed valve safely because compressed air limits the maximum pressure. They handle difficult fluids including abrasives, slurries, sludges, high-viscosity liquids, and suspended solids. Their gentle low-shear action suits shear-sensitive products like paints, latex, and food emulsions. Driven by compressed air with no electric motor, they are intrinsically safe for flammable service and ATEX zones. They are portable, simple, and easy to maintain.

Q: What are the disadvantages of AODD pumps?
A: AODD pumps have real limitations. They are noisy due to the air exhaust and reciprocating action. They deliver pulsating rather than smooth flow, which can affect instruments and downstream equipment unless a pulsation dampener is fitted. They consume compressed air, an expensive utility, so running cost is higher than an equivalent electric pump — for continuous high-volume duty on clean fluids, an electric pump is usually more economical. Maximum pressure is limited by the air supply, typically around 7 bar (100 psi). Rapid air expansion at the exhaust can cause icing in humid conditions or continuous service. The diaphragm is a wear part requiring scheduled replacement.

Q: What materials are diaphragm pumps made from?
A: AODD pumps are specified in two parts. Body/wetted housing materials include polypropylene (general chemicals, economical), PVDF or Kynar (aggressive acids and solvents), aluminium (fuels, oils, solvents), cast iron (heavy-duty and abrasives), 316 stainless steel (food, pharma, chemicals), and conductive plastics for static-dissipating flammable service. Diaphragm and elastomer materials include PTFE (broadest chemical resistance), Santoprene (excellent flex life, general purpose), Buna-N or nitrile (oils and hydrocarbons), EPDM (acids, caustics, ketones — not oils), Viton or FKM (high temperature and aggressive chemicals), and Neoprene (general purpose). Both the body and every elastomer must be verified against the actual fluid, concentration, and temperature.

Q: Can a diaphragm pump run dry?
A: Yes. AODD pumps run dry without significant damage or heat build-up, which is one of their key advantages over centrifugal pumps — a centrifugal pump run dry destroys its seals and wear parts within minutes because there is no liquid to cool and lubricate them. AODD pumps are also self-priming from a dry start, so they can evacuate air from the suction line and begin pumping without external priming. They can additionally be deadheaded (run against a closed discharge valve) safely: because compressed air limits the pressure the pump can develop, the pump simply stalls and then resumes when flow is restored. This makes AODD pumps well suited to intermittent and on-demand duties such as filter press feed.

Q: What is a diaphragm pump used for?
A: Diaphragm pumps are used wherever fluids are difficult for conventional pumps. Common applications include chemical transfer (acids, caustics, solvents, drum and IBC unloading), water and wastewater duties (sludge transfer, polymer and flocculant dosing, sump emptying), mining (slurry transfer, dewatering, tailings, filter press feed), paint and coatings (shear-sensitive resins and pigments), food and beverage (sauces, syrups, fillings with 3-A/FDA compliant models), pharmaceutical hygienic transfer, oil and gas (drilling fluids, produced water, fuel transfer), and construction dewatering and grout handling. They are particularly valued in ATEX classified zones because they require no electric motor.
