Dowel Bar vs Tie Bar: 8 Differences & Which to Use for Each Joint

A concrete pavement has two types of joints, and each needs a different bar. Transverse contraction joints — the joints that run across the road, perpendicular to traffic — get dowel bars. Longitudinal joints — the joints that run between adjacent lanes, parallel to traffic — get tie bars.

Use the wrong bar in the wrong joint and the pavement fails. A dowel bar (smooth) in a longitudinal joint lets the lanes drift apart. A tie bar (deformed) in a transverse joint locks the joint, generates restraint stress, and produces random cracks across the slab — often within months of opening to traffic. Both errors require slab demolition and replacement.

This is the most consequential specification distinction in concrete pavement construction, and it's still one of the most commonly confused. The bars look similar enough to be ordered interchangeably by a procurement team that doesn't catch the difference. They are not interchangeable. This guide makes the distinction unambiguous.

The Fundamental Difference

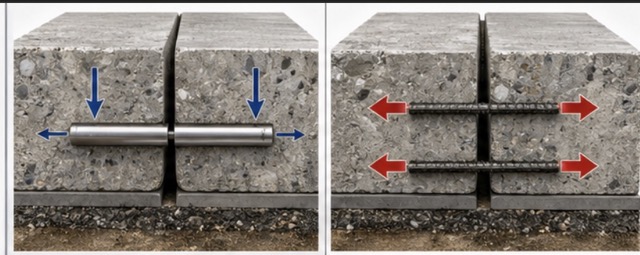

A dowel bar is a smooth, plain round steel bar that transfers wheel loads from one slab to the adjacent slab while allowing the joint to open and close with thermal movement. The smooth surface and bond breaker on one half of the bar are deliberate — they let the joint move horizontally as the slabs expand and contract.

A tie bar is a deformed (ribbed) steel bar that holds two slabs together and prevents them from separating. The deformations grip the surrounding concrete on both sides of the joint, creating a strong mechanical bond. Tie bars are not designed to transfer load — they are designed to resist tension.

The single sentence to remember:

Dowel bars allow joint movement while transferring load. Tie bars prevent joint movement and resist tension.

Every other difference between the two bars flows from this fundamental functional distinction.

Head-to-Head Comparison

1. Position in the Pavement: Different Joints

The joint type tells you everything about which bar belongs where.

Transverse joints run across the road, perpendicular to traffic. They are spaced every 4.5–5.5 meters along the pavement. Their purpose is to control where the slab cracks as it shrinks during curing — the joint becomes the planned crack location, keeping it neat and sealed instead of letting it wander randomly. Dowel bars go in transverse joints.

Longitudinal joints run along the length of the road, parallel to traffic. They separate adjacent traffic lanes — typically one joint between each lane. They form between concurrent pours or are sawn shortly after concrete placement. Their purpose is to control where the slab cracks longitudinally as it cools and shrinks across its width. Tie bars go in longitudinal joints.

In a typical 4-lane highway, you have two longitudinal joints (between lanes 1-2 and 2-3, plus shoulder joints) and many more transverse joints (one every 4.5m along the entire length). Both bars are needed throughout — together they form the structural reinforcement system of the pavement joint network.

2. Surface and Shape: Smooth vs Deformed

A dowel bar is a plain round bar — completely smooth surface, no ribs, no deformations. The smoothness is essential. As the concrete contracts and the joint opens, the dowel must slide axially through the concrete on at least one side. A bond breaker (grease, plastic sleeve, or specific bond-breaker coating) is applied to one half of the bar to prevent the concrete from gripping that side. The combination of smooth surface and bond breaker allows the joint to move 1–3mm during seasonal thermal cycles without the dowel restraining it.

A tie bar is deformed — it has the same ribs and deformations as standard reinforcing bar (rebar). The deformations create mechanical interlock with the surrounding concrete on both sides of the joint. The tie bar grips the concrete and resists any tension that would pull the slabs apart.

This is why you cannot substitute one for the other. A deformed tie bar in a transverse joint would lock the joint completely. As the slab tries to shrink during curing, the locked joint cannot open — the shrinkage stress instead creates random cracks elsewhere in the slab. A smooth dowel bar in a longitudinal joint would let the lanes drift apart over time, opening the longitudinal joint and allowing water to penetrate the pavement structure.

3. Material and Coating

Both bars are typically made from ASTM A615 Grade 60 carbon steel (yield strength 415 MPa / 60 ksi). The base material is the same. What differs is the manufactured shape — plain round versus deformed.

Both bars need corrosion protection. In modern pavement construction, both are typically supplied with fusion-bonded epoxy (FBE) coating per ASTM A1078. The epoxy protects against chloride attack from deicing salts, marine spray, and contaminated groundwater — extending service life from 10–15 years (uncoated) to 30–40+ years (epoxy coated).

For aggressive marine environments, both can also be supplied as stainless steel — though this is rare for tie bars due to cost. Galvanized and FRP options are also available for both, with FRP/GFRP becoming popular for tie bars in some specialty applications (tolling areas, electromagnetic-sensitive zones).

For complete coverage of dowel bar coatings, see the pillar guide and the coating comparison post.

4. Sizes: Dowels Are Larger

Dowel bars are significantly larger in diameter than tie bars because they have a structural job. They must resist bending under heavy wheel loads while transferring shear from one slab to the next.

Dowel bar diameter is determined by slab thickness, using the rule D = T/8:

Tie bar diameter is determined by slab thickness and lane width, but is typically much smaller — usually 12mm or 16mm rebar (US #4 or #5). The tie bar only needs enough cross-section to resist the tension generated by friction between the slab and the subbase as the slab tries to contract laterally. This force is far smaller than the wheel load that the dowel bar resists.

5. Lengths: Tie Bars Are Longer

Despite being thinner, tie bars are typically longer than dowel bars.

Dowel bar length: 350–500mm (14"–20"), with 450mm being the highway standard. The bar provides 225mm of embedment on each side of the joint — enough for load transfer, with 1–2mm of axial movement tolerated.

Tie bar length: 600–900mm (24"–36") typically. The bar provides 300–450mm of embedment on each side — needed because the tie bar relies on bond development length to anchor itself in the concrete. A shorter tie bar would not have enough embedment for the deformations to develop full tensile capacity.

The longer length of tie bars also makes them more forgiving of placement variations. A tie bar that's a few centimeters off-center still has adequate embedment on both sides; a dowel bar that's significantly off-center may have one side too short for proper load transfer.

6. Spacing: Dowels Are Tighter

Dowel bar spacing: 300mm (12") center-to-center, standard across the entire transverse joint. A typical 3.5m traffic lane has 11–12 dowels per joint.

Tie bar spacing: 600–1,200mm (24"–48") center-to-center along the longitudinal joint. A 1km section of longitudinal joint might have 800–1,600 tie bars total, depending on spacing — far fewer per linear meter than dowel bars across each transverse joint.

Why the difference? The forces are different. Each transverse joint experiences a wheel load from every passing vehicle, distributed across the dowel bars in that joint — so tighter spacing distributes the load and increases LTE. The longitudinal joint experiences distributed friction force along its length, not concentrated wheel loads — so wider spacing is sufficient.

For a typical highway project, the procurement quantities reflect this difference: roughly 4–6× more dowel bars than tie bars by piece count (depending on slab geometry and joint pattern).

7. Installation Method

Dowel bars are installed in one of three ways:

1. Pre-placed in dowel basket assemblies — bars welded into a steel cage that holds them at correct spacing and alignment. The basket sits on the subbase and the slipform paver pours concrete over it.

2. Inserted by Dowel Bar Inserter (DBI) — a slipform paver attachment that automatically pushes dowels into the wet concrete behind the screed.

3. Drilled in — for construction joints (planned end-of-day stops) and dowel bar retrofit. Holes are drilled, bars are placed with epoxy, and the joint is restored.

For complete installation methodology, see the dowel bar installation guide.

Tie bars are typically installed by:

1. Drilling and epoxying into the existing slab during longitudinal joint formation, OR

2. Hooking into the formwork before concrete placement, OR

3. Bent and inserted by an automatic side-bar inserter on slipform pavers (similar concept to DBI but for tie bars).

8. Cost and Procurement

For a typical 1km highway project, the dowel bar procurement is significantly larger than the tie bar procurement:

Both should be ordered together from the same supplier — they share specifications (same coating standard, same packaging requirements, same documentation), and consolidating the procurement simplifies project logistics and reduces total cost.

Common Pavement Joint Errors

After 15+ years supplying dowel and tie bars to highway projects, these are the most common (and most expensive) errors we see:

Error 1: Deformed Bar in Transverse Joints

Procurement orders deformed rebar (intending it for both dowels and tie bars) and the contractor places deformed bar in the transverse joint. The joint cannot open as the slab shrinks. Random cracks appear across the slab within weeks of opening to traffic. The pavement is permanently compromised.

Prevention: Always specify "smooth, plain round bar" for dowel bars. Reject any shipment of deformed bar intended for transverse joints. Ensure the procurement team understands that dowel bars and tie bars are different products requiring different orders.

Error 2: Smooth Bar in Longitudinal Joints

Procurement ships only smooth dowel bars. The contractor places smooth bars in both transverse and longitudinal joints. Within 1–2 years, the longitudinal joint opens up and the lanes drift apart. Water penetrates the pavement structure, accelerating sub-base failure.

Prevention: Always order tie bars (deformed) separately from dowel bars (smooth). Verify shipments visually before installation — deformations are easy to see.

Error 3: Missing Bond Breaker on Dowel Bars

Dowel bars are installed without a bond breaker on one side. The concrete bonds to both halves of the bar. The joint cannot open, even though the bar itself is smooth. Random cracking results — exactly as if a deformed bar had been used.

Prevention: Either order dowel bars with pre-applied bond breaker, or ensure the contractor applies bond breaker (grease or specific bond-breaker compound) to one half of every bar before basket installation. Verify in pre-placement inspection.

Error 4: Wrong Diameter for Slab Thickness

Procurement orders 25mm dowel bars (the cheaper size) for a 250mm pavement specification. The bars are undersized — the bending stress under heavy wheel loads exceeds the bar's capacity. Within a few years of opening, dowels begin to bend and bearing failure of the surrounding concrete starts. Joint faulting develops.

Prevention: Use the D = T/8 rule rigorously. For 250mm slabs, specify 32–38mm dowels. Do not value-engineer the dowel bar diameter without understanding the structural consequences.

Error 5: Dowel Bar Misalignment

Bars are placed in baskets that are not properly anchored to the subbase. Concrete placement disturbs the basket, and dowels end up at angles to the joint. The misaligned bars lock the joint or reduce LTE significantly.

Prevention: Use proper basket anchoring (steel pins driven into the subbase). Inspect alignment before paving. Use MIT-DOWEL-SCAN testing per ASTM E3013 to verify post-placement positioning. For complete installation quality control, see the dowel bar installation guide.

Quick Decision Reference

When you encounter a joint in a concrete pavement design, ask one question: does this joint need to open and close?

• Yes, the joint needs to open and close (transverse contraction joints, expansion joints) → use dowel bars (smooth, plain round)

• No, the joint must stay closed (longitudinal joints between lanes, lane-shoulder joints) → use tie bars (deformed)

That simple rule resolves 99% of specification questions.

Combined Supply: Dowel Bars + Tie Bars + Baskets

For a complete highway pavement project, you typically need three coordinated material packages:

Package 1 — Dowel bars + dowel basket assemblies: Pre-assembled dowel baskets containing dowel bars at correct spacing for transverse joints.

Package 2 — Tie bars (loose): Individual deformed bars in standard lengths, installed by hooking into formwork or by automatic side-bar inserters on the paver.

Package 3 — Documentation: Mill test certificates, coating certifications, holiday test results, and dimensional reports for both dowel and tie bars.

Sourcing these three packages from a single supplier dramatically simplifies project procurement. The same MTC format, same packaging discipline, same shipping consolidation, and same project tracking — far simpler than coordinating multiple suppliers for what should be a unified pavement material order.

Supply from Kasko Makine

Kasko Makine supplies both dowel bars and tie bars for highway, airport, container terminal, and industrial concrete pavement projects:

Dowel bars: Plain round ASTM A615 Grade 60 base steel. Diameters 25mm, 28mm, 32mm, 36mm, 38mm. Lengths 350mm to 500mm standard, custom lengths available. Coatings: epoxy (ASTM A1078), galvanized (ASTM A1094), stainless steel (ASTM A955), and FRP (ASTM D7957). Pre-applied bond breaker available.

Tie bars: Deformed ASTM A615 Grade 60 rebar. Diameters 12mm and 16mm (US #4 and #5). Lengths 600mm to 900mm standard, custom lengths available. Epoxy coated per ASTM A1078 / A934 (the same coating system as dowel bars).

Dowel basket assemblies: Pre-fabricated baskets with dowel bars at correct 300mm spacing. Standard 12-foot and 14-foot basket lengths. Welded basket frames with anchor pin holes.

Documentation: EN 10204 Type 3.1 mill test certificates, coating certifications per ASTM A775/A1078, holiday test results per ASTM G62, and dimensional reports for every shipment. Third-party inspection (Bureau Veritas, SGS, TÜV) available on request.

Logistics: All materials consolidated at our Istanbul warehouse, properly packaged with non-metallic strapping to protect coatings, and shipped together to project sites across Africa, the Middle East, Central Asia, and Southeast Asia.

Request dowel and tie bar pricing — send us your project's slab thickness, joint pattern, total pavement area, and delivery location to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We respond within 24 hours with a complete material take-off and detailed delivery schedule.

Continue Reading: Complete Dowel Bar Series

This comparison is part of our comprehensive dowel bar guide series. For more depth:

• Dowel Bars: The Complete Guide — The master pillar covering specifications, sizes, materials, and selection

• Epoxy Coated Dowel Bars: ASTM A1078 — The global standard coating in detail

• Dowel Bar Sizes & Diameter Chart — Sizing reference for every slab thickness

• Dowel Baskets: Types & Installation — Basket assemblies and pre-pour quality control

• Epoxy vs Galvanized vs Stainless vs FRP — Coating comparison with cost analysis

• Dowel Bar Installation Guide — Methods, tolerances, and best practices

• Dowel Bar Retrofit (DBR) — Adding load transfer to existing pavements

• Dowel Bar Load Transfer Engineering — Friberg's analysis and LTE calculations

• Dowel Bar Supplier & Procurement Guide — How to source dowel bars correctly

FAQ SCHEMA

Q: What is the main difference between a dowel bar and a tie bar?
A: Dowel bars are smooth round bars placed in transverse joints to transfer load from one slab to the adjacent slab while allowing the joint to open and close with thermal movement. Tie bars are deformed (ribbed) bars placed in longitudinal joints to hold adjacent lanes together and prevent separation. Dowel bars enable joint movement; tie bars prevent it. Both are essential — using the wrong type in the wrong joint causes pavement failure.

Q: Where do you put dowel bars vs tie bars in a pavement?
A: Dowel bars go in transverse contraction joints (the joints running across the road, perpendicular to traffic, spaced every 4.5–5.5m). Tie bars go in longitudinal joints (the joints running along the road, parallel to traffic, between adjacent lanes). A standard highway has many transverse joints (with dowel bars) and a few longitudinal joints (with tie bars).

Q: Why are dowel bars smooth and tie bars deformed?
A: Dowel bars must allow the joint to open and close as the slab shrinks during curing and expands/contracts seasonally. The smooth surface and a bond breaker on one half of the bar let the dowel slide axially without restraining joint movement. Tie bars must resist tension that would pull the slabs apart — the deformations grip the concrete on both sides, anchoring the bar mechanically. Substituting one for the other causes pavement failure.

Q: What size are tie bars compared to dowel bars?
A: Tie bars are smaller in diameter and longer than dowel bars. Tie bars are typically 12–16mm (US #4 or #5 rebar) and 600–900mm long. Dowel bars are typically 25–38mm in diameter and 350–500mm long. Tie bars also have wider spacing — 600–1,200mm vs the 300mm standard for dowel bars.

Q: Can I use the same supplier for both dowel bars and tie bars?
A: Yes, and you should. Both bars use ASTM A615 Grade 60 base steel and typically the same epoxy coating system per ASTM A1078. Sourcing both from a single supplier simplifies documentation (one MTC format), packaging, shipping consolidation, and project tracking. A supplier that provides only one or the other is missing half the order.

Q: What happens if I use a tie bar in a transverse joint?
A: The deformations on the tie bar lock the joint, preventing it from opening as the slab shrinks during curing. The shrinkage stress instead creates random cracks across the slab — often within weeks of opening to traffic. The pavement is permanently compromised and may require slab demolition and replacement. Always specify smooth, plain round dowel bars for transverse joints.

Q: What happens if I use a dowel bar in a longitudinal joint?
A: The smooth surface lets the joint open over time as the slab shrinks across its width. The longitudinal joint widens, water penetrates the pavement structure, and the sub-base begins to fail. Adjacent traffic lanes drift apart, creating a step at the joint that becomes a maintenance problem. Always specify deformed tie bars for longitudinal joints.
