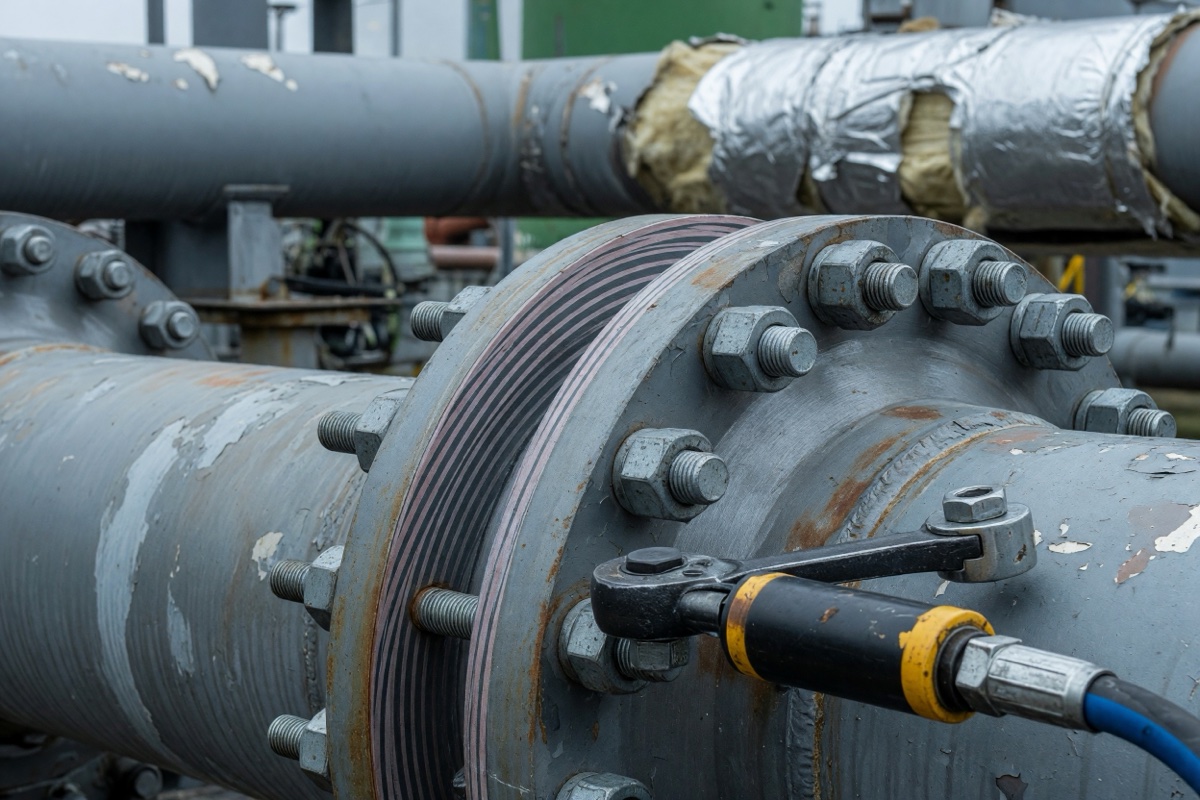

Flange Bolt Torque & Assembly: ASME PCC-1 Sequence & Values

Quick Answer

A bolted flange joint seals because the bolts compress the gasket to a specific gasket seating stress — not simply because they are "tight." ASME PCC-1 (Guidelines for Pressure Boundary Bolted Flange Joint Assembly) is the governing reference, and it makes three things clear. First, the assembly bolt stress must be high enough to seat the gasket and maintain seal in operation, but low enough to avoid crushing the gasket, yielding the bolts, or permanently deforming the flange. Second, the tightening sequence and number of passes matter as much as the final number: the standard specifies a cross (star) pattern in multiple passes — typically 30%, 60%, then 100% of target torque, followed by a final circular pass at 100% until no further nut rotation occurs. Third, torque is only an indirect proxy for bolt load — the relationship depends on the nut factor (K), which varies with lubrication, thread condition, and coating. Lubricated threads typically show K around 0.15–0.20, while dry threads run 0.30–0.45, meaning the same torque on dry threads produces far less clamp load. The failure mechanism most crews underestimate is elastic interaction (bolt cross-talk): tightening later bolts relaxes earlier ones, which is why check passes are mandatory, not optional. For large-diameter or high-class joints, hydraulic tensioning replaces torque because it eliminates friction variability entirely.

A maintenance crew replaced a gasket on a 24-inch Class 600 hydrocracker feed line. They used the correct torque value — 1,200 ft-lbs, straight from the specification. But to save time on a 32-bolt flange, they tightened in a circle rather than a star pattern. The joint leaked immediately on the low-pressure leak test. When they checked, the first five bolts they had tightened had lost close to 60% of their preload. The crew depressurised and ran three full check passes to restore uniformity.

Nothing about that job was wrong in the number. Everything about it was wrong in the method — and that gap is where most flange leaks originate. A bolted joint is not a fastening problem; it is a stress distribution problem. Sixteen or thirty-two bolts must arrive at roughly the same load, applying roughly uniform stress around a gasket, without over-compressing it or rotating the flange. Getting there requires sequence, passes, lubrication control, and verification.

The stakes are why ASME formed the Post Construction Committee in 1995 and eventually published PCC-1. A flanged joint is one of the most critical components in pressure equipment: a leak in hydrocarbon, toxic, or high-pressure service is a safety and environmental event, not a maintenance inconvenience. Fugitive emissions regulation has made the same point from a different direction.

For maintenance engineers, mechanical supervisors, construction contractors, and anyone specifying or supervising bolt-up — this guide covers flange bolt torque and joint assembly: how torque relates to bolt load, the PCC-1 tightening sequence, lubrication and nut factor, elastic interaction, torque versus tensioning, and the full assembly procedure.

For the components involved, see Gaskets, Pipe Flanges, and Industrial Fasteners.

What a Bolted Joint Actually Has to Achieve

ASME PCC-1 frames assembly bolt stress around four competing requirements. Every one of them constrains the answer:

(a) Sufficient gasket stress to seal. The bolt load must seat the gasket initially and maintain adequate stress during operation, after pressure, temperature, and relaxation effects.

(b) No damage to the gasket. Too much bolt stress over-compresses (physically destroys) the gasket, or causes excessive flange rotation that produces localised over-compression at the outer edge.

(c) No damage to the bolts. Bolt stress must stay below yield. Lower stress extends bolt life.

(d) No damage to the flange. Excessive stress permanently deforms the flange. Once a flange is distorted, it will likely leak in operation and in every subsequent assembly.

So the target is a band, not a maximum. Both under-tightening and over-tightening cause leaks — a point that surprises crews trained to believe tighter is safer.

PCC-1 also acknowledges (consistent with ASME BPVC Section VIII Div 1, Appendix S) that initial bolt tightening is a prestressing operation, and required target bolt prestress can sit considerably above the code-tabulated design stress value.

Torque vs Bolt Load: The Nut Factor Problem

Torque does not measure bolt load. It measures the effort required to turn a nut, and most of that effort is consumed by friction.

The practical relationship uses the nut factor (K):

T = K × D × F

where T is torque, D is nominal bolt diameter, and F is the target bolt load.

The problem is K. It is not a material constant — it depends on:

• Lubricant type and coverage
• Thread condition (new, used, damaged, galled)
• Coating (bare, zinc, PTFE, cadmium)
• Surface finish of the nut bearing face
• Temperature and cleanliness

Typical values:

The consequence is significant: the same applied torque on dry threads produces far less clamp load than on lubricated threads, because more of the input is lost to friction. Put the other way, dry threads at a torque figure calculated for lubricated conditions leave the joint badly under-loaded.

Practical rules:

• Always lubricate uncoated bolts unless the specification prohibits it — it reduces friction, lowers required torque, and dramatically improves scatter
• Lubricate both the threads and the nut bearing face
• Use the K value matching the actual lubricant specified, not a generic table
• Verify lubricant compatibility with the gasket and process fluid
• Record the lubricant used — changing lubricant changes the torque value

Even well-controlled torque methods produce meaningful scatter in achieved bolt load. That is inherent, and it is why tensioning exists.

The PCC-1 Tightening Sequence

Getting the right torque value means nothing if it is applied in the wrong order.

Cross (Star) Pattern in Multiple Passes

For a standard ASME B16.5 flange with 8 or more bolts, the recommended approach is:

PCC-1 provides the torque increment rounds and the numbered cross-pattern sequences in its tables, along with alternative procedures for simultaneous multi-tool tightening.

Why the star pattern: tightening 12 o'clock, then 6, then 3, then 9 brings the flange faces together parallel. Tightening sequentially around the circle pulls one side down first, cocking the flange and pinching the gasket unevenly.

Practical tip: number the bolts with a paint marker before starting. On a 32-bolt flange, following a numbered sequence sheet is faster and far more reliable than trying to identify the "opposite" bolt by eye.

Elastic Interaction (Bolt Cross-Talk)

This is the mechanism most crews underestimate, and the reason the final circular pass and check passes exist.

When you tighten bolt #1, the flange and gasket compress slightly. When you tighten bolt #2, the joint compresses further — which relaxes the tension already in bolt #1. Continue around the flange and every bolt tightened partially unloads those tightened before it.

The effect is cumulative and large. In the 24-inch Class 600 example above, the first five bolts had lost close to 60% of their preload by the time the crew finished.

The countermeasures:

• Multiple passes at increasing percentages (not one pass to full torque)
• The final circular pass at 100% until no nut moves
• Check passes after the joint has settled — repeat the circular pass until no further rotation occurs
• Star pattern throughout, which distributes the interaction rather than concentrating it

Skipping check passes is the single most common cause of a joint that was "torqued correctly" and still leaks.

Torque Tables and Their Limits

Published flange bolt torque tables — for example values for ASTM A193 B7 studs with A194 2H heavy hex nuts — are useful starting points. As an indication of magnitude, a ¾-inch stud on a Class 600 flange with lubricated threads sits in the region of 170–210 ft-lbs (roughly 231–285 N·m).

But treat every table as general reference for initial guidance only, because published values assume:

• A specific bolt grade and nut combination
• A specific lubricant and nut factor
• A specific gasket type and its seating stress requirement
• Flanges in good condition

Final torque must always be verified against the gasket manufacturer's recommendation and the project engineering specification. Ring type joint (RTJ) gaskets per ASME B16.20 have different seating stress requirements — and therefore different torque values — than spiral wound gaskets. See Gaskets.

PCC-1 Appendix K vs Appendix O

PCC-1 offers two approaches, and the distinction matters:

• Appendix K — simplified, generic torque tables based on a fixed friction factor and bolt stress. Convenient, but it does not account for specific gasket stiffness, gasket stress limits, or thermal effects.
• Appendix O — the rigorous method. It determines target bolt stress from gasket maximum stress limits, bolt yield strength, flange stress limits, and the actual nut factor of the lubricant used, supported by elastic–plastic FEA work. It includes tables of maximum bolt load limits for ASME B16.5 / B16.47 Series A flanges and outlines the calculation for other flanges.

For critical service, use Appendix O. For routine utility joints, Appendix K tables are usually adequate.

Torque vs Hydraulic Tensioning

Torque tightening turns the nut against friction. It is fast, cheap, and dominant for structural and general flange work — but bolt load accuracy is limited by friction variability, and it induces torsional stress in the bolt.

Hydraulic tensioning stretches the bolt axially, then runs the nut down to hold the stretch. Because no friction is involved in generating the load, preload accuracy is much better, no torsional stress is applied, and multiple bolts can be tensioned simultaneously — which largely eliminates elastic interaction.

Tensioning generally requires longer studs (extra thread engagement for the tensioner). Specify this at procurement — retrofitting longer studs during a shutdown is a common delay.

For the tools themselves, see Plant Construction & Erection Equipment.

The Full Assembly Procedure

PCC-1 emphasises that leak performance is often lost before tightening even starts. The preparation steps matter as much as the torque.

1. Flange face inspection and cleaning. Check for scoring, pitting, corrosion, and residual old gasket material. Radial scratches across the seating face are a leak path and must be addressed. Clean thoroughly.

2. Fastener inspection. Inspect studs and nuts for thread damage, elongation, corrosion, and galling. Replace damaged fasteners — do not reuse degraded studs on critical joints.

3. Alignment. Verify flange parallelism and concentricity before inserting the gasket. Correcting misalignment by tightening bolts is a classic error: it loads the flange permanently and guarantees uneven gasket stress. Check alignment again after the first (30%) pass.

4. Gasket installation. Centre the gasket between the faces and verify its dimensions. A compatible adhesive spray can hold it in position during assembly. Never reuse a gasket.

5. Lubrication. Apply the specified lubricant to threads and nut bearing faces. Consider thread sealant on the first 2–3 threads to prevent galling in high-temperature service — but confirm compatibility.

6. Tightening. Follow the star pattern passes as above with the chosen method — manual torque, powered torque, or tensioning.

7. Check passes. Repeat the circular pass at 100% until no further nut rotation occurs.

8. Verification and documentation. Record joint tag, size and class, gasket type, fastener details, lubricant, method, target value, and who performed the work.

9. Re-tightening consideration. Some services — high temperature, gaskets prone to relaxation, bolted joints subject to thermal cycling — warrant hot re-torquing per the specification.

Tool Calibration

Torque wrenches should be calibrated to ±4% accuracy per ISO 6789. An uncalibrated wrench makes the entire calculation meaningless.

Tiering Your Bolting Programme

A practical approach used in refinery and process plants is to tier joints and apply PCC-1 rigour proportionately:

• Tier 1 (Critical) — high pressure/temperature, toxic service, emissions-sensitive, known repeat leakers. Full procedure, Appendix O targets, documented verification, often tensioning.
• Tier 2 (Important) — process piping, common tie-ins, turnaround volume joints. Standard procedure with documented torque and check passes.
• Tier 3 (Routine) — low-risk utility and non-critical joints. Table values, standard sequence.

A PCC-1-aligned bolt-up procedure should include: joint identification (tag, size/class, gasket type), pre-job checks (face condition, alignment, fastener condition), lubrication specification (what, where, and any "no lube" cases), tightening method, and verification requirements.

Common Assembly Mistakes

After 15+ years supplying flanges, fasteners, gaskets, and bolting tools to industrial projects:

Mistake 1: Circular Tightening Instead of Star Pattern

Bolts tightened sequentially around the flange to save time. Elastic interaction strips preload from the first bolts and the flange cocks. The joint leaks on test.

Prevention: Star pattern in multiple passes, always. Number the bolts before starting.

Mistake 2: No Check Passes

Joint torqued to 100% in the final star pass and declared complete. Bolt cross-talk has left the load badly uneven.

Prevention: Always run a final circular pass at 100%, repeating until no nut rotates.

Mistake 3: Dry Threads at Lubricated Torque Values

Torque figure taken from a lubricated table but applied to dry, uncoated studs. Friction consumes far more of the input and the joint is significantly under-loaded.

Prevention: Lubricate as specified, and use the K value for the actual lubricant. Never mix a lubricated torque value with dry threads.

Mistake 4: Correcting Misalignment with the Bolts

Misaligned flanges pulled together by tightening. The flange is permanently stressed, the gasket is unevenly compressed, and the joint becomes a repeat leaker.

Prevention: Verify and correct alignment before gasket installation. Re-check after the 30% pass.

Mistake 5: Over-Tightening "To Be Safe"

Extra torque applied on the assumption that tighter is better. The gasket is crushed, the flange rotates, or the studs yield.

Prevention: Understand that the target is a band. Follow the specified value; over-tightening causes leaks as reliably as under-tightening.

Mistake 6: Generic Table Values on Critical Joints

Appendix K table values used on a high-pressure joint with a gasket having specific stress limits.

Prevention: Use Appendix O methodology for critical service, incorporating gasket stress limits, bolt yield, and actual nut factor.

Mistake 7: Studs Too Short for Tensioning

Tensioning selected during execution, but the studs were procured for torque assembly and lack the extra thread engagement.

Prevention: Decide the tightening method at design/procurement stage and specify stud length accordingly.

Mistake 8: Uncalibrated Tools

Torque wrenches used without calibration records. Applied torque may differ substantially from indicated.

Prevention: Calibrate to ±4% per ISO 6789 and maintain calibration records.

Supply from Kasko Makine

Kasko Makine supplies flange bolting, gaskets, and torque equipment for oil & gas, petrochemical, power, and industrial projects:

Fasteners:

• Stud bolts: ASTM A193 B7, B7M, B16, B8/B8M stainless, L7 low temperature
• Nuts: ASTM A194 2H, 2HM, 7, 8/8M
• Washers, coated and uncoated options (PTFE, zinc, xylan, hot-dip galvanised)
• Extended-length studs for tensioning applications
• NACE MR0175-compliant fasteners for sour service

Gaskets:

• Spiral wound (ASME B16.20)
• Ring type joint (RTJ) — oval and octagonal
• Kammprofile, corrugated metal, jacketed
• Compressed sheet, graphite, PTFE
• Matched gasket sets for blind flange and line blind installations

Flanges: all types and classes — see Pipe Flanges and Flange Standards: ASME vs DIN vs EN

Bolting tools:

• Hydraulic torque wrenches (square drive, low-profile, ultra-slim)
• Hydraulic bolt tensioners
• Electric torque multipliers and pneumatic tools
• Hydraulic pumps and power packs
• Impact sockets and accessories
• Flange spreaders and alignment tools
• Smart bolting systems with digital documentation

Engineering support:

• Torque value determination for flange, gasket, and fastener combination
• Torque vs tensioning method recommendation
• Stud length calculation including tensioner engagement
• Lubricant and nut factor guidance
• Bolt-up procedure development and joint tiering
• Tool selection and sizing

Certification: EN 10204 Type 3.1/3.2 material certificates, hardness testing, PMI, NACE compliance, tool calibration certificates

Logistics: Bolting, gaskets, and tools shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard fasteners and gaskets 2-6 weeks; specialty materials and tools 6-14 weeks.

Need flange bolting, gaskets, or torque tools? Send us the flange size and pressure class, gasket type, fastener grade, service conditions, and whether you require torque or tensioning to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll confirm the bolting specification, advise on method and stud length, and provide a complete package quotation within 48 hours.

Continue Reading: Flange & Bolting Guides

• Gaskets: Types, Materials & Selection — Gasket seating stress and selection
• Pipe Flanges — Flange types, faces, and classes
• Flange Standards: ASME vs DIN vs EN — International standards
• Industrial Fasteners — Stud bolts and nuts
• Blind Flanges & Spectacle Blinds — Extended bolting for line blinds
• Plant Construction & Erection Equipment — Torque and tensioning tools
• Material Test Certificates: EN 10204 3.1 vs 3.2 — Certification for bolting and gaskets

Frequently Asked Questions

Q: What is ASME PCC-1?
A: ASME PCC-1 is the Guidelines for Pressure Boundary Bolted Flange Joint Assembly, developed by ASME's Post Construction Committee (formed in 1995) to address the fact that flanged joints are among the most critical components in pressure equipment and a leak can have catastrophic consequences. It covers the complete assembly process: flange face cleaning and inspection, fastener condition, alignment, gasket installation, lubrication, tightening method selection, tightening sequences and passes, and verification. It provides torque increment rounds and numbered cross-pattern sequences, with Appendix K giving simplified generic torque tables and Appendix O providing a rigorous method for determining target bolt stress from gasket stress limits, bolt yield strength, and the actual nut factor.

Q: What is the correct flange bolt tightening sequence?
A: ASME PCC-1 specifies a cross (star) pattern in multiple passes. For a standard ASME B16.5 flange with 8 or more bolts, the recommended approach is: Pass 1, star pattern to approximately 30% of target torque, then check flange alignment; Pass 2, star pattern to approximately 60%; Pass 3, star pattern to 100%; Pass 4, circular clockwise pattern at 100% until no further nut rotation occurs. The star pattern brings the flange faces together parallel — tightening 12 o'clock, then 6, then 3, then 9 — whereas tightening sequentially around the circle cocks the flange and compresses the gasket unevenly. Numbering the bolts with a paint marker before starting makes the sequence faster and more reliable on large flanges.

Q: What is elastic interaction or bolt cross-talk?
A: Elastic interaction, also called bolt cross-talk, is the phenomenon where tightening one bolt relaxes the tension in bolts already tightened. When bolt #1 is tightened, the flange and gasket compress slightly; when bolt #2 is tightened, the joint compresses further, which reduces the load already in bolt #1. The effect accumulates around the flange and can be dramatic — in one documented case on a 24-inch Class 600 joint, the first five bolts tightened had lost nearly 60% of their preload. Countermeasures are multiple passes at increasing percentages rather than a single pass to full torque, a final circular pass at 100% until no nut rotates, and check passes after the joint settles.

Q: Why does lubrication affect flange bolt torque?
A: Torque does not directly measure bolt load — most of the applied torque is consumed overcoming friction, and the proportion converted into clamp load depends on the nut factor (K). Lubricated threads typically show a nut factor around 0.15–0.20, while dry or unlubricated threads run 0.30–0.45. This means that applying a torque value calculated for lubricated threads to dry threads leaves the joint significantly under-loaded, because far more of the input is lost to friction. Lubricant should be applied to both the threads and the nut bearing face, the nut factor used in calculation must match the actual lubricant specified, and lubricant compatibility with the gasket and process fluid must be verified.

Q: When should bolt tensioning be used instead of torque?
A: Hydraulic tensioning stretches the bolt axially and then runs the nut down to hold the stretch, generating preload without friction. This gives much better load accuracy than torque, applies no torsional stress to the bolt, and — because multiple bolts can be tensioned simultaneously — largely eliminates elastic interaction. Tensioning is preferred for large-diameter joints, high pressure classes, critical service, and applications where torsional stress is unacceptable, such as anchor bolts grouted into concrete. Torque remains standard for general flange work and structural bolting because it is faster per bolt and lower cost. Tensioning requires longer studs for tensioner engagement, which must be specified at procurement stage.

Q: Can you over-tighten a flange joint?
A: Yes, and over-tightening causes leaks as reliably as under-tightening. ASME PCC-1 frames assembly bolt stress as a band constrained by four requirements: sufficient gasket stress to seat and maintain the seal; not so much stress that the gasket is over-compressed and physically damaged, or that the flange rotates enough to cause localised gasket crushing; bolt stress below yield so bolts do not fail; and stress low enough that the flange is not permanently deformed. A distorted flange will likely leak in operation and in every subsequent assembly. The correct approach is to follow the specified target value derived from the gasket, flange, and bolt combination — not to add margin.
