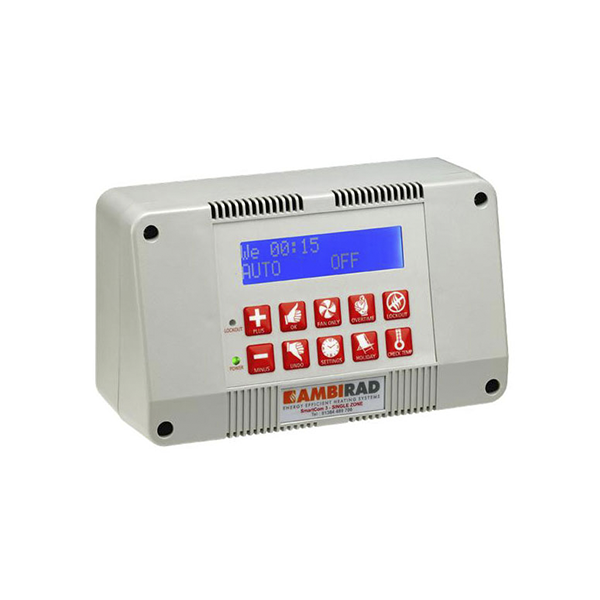

Control Panel
Control Panels designed for automation and control applications, providing reliable operation, safety protection, and precise temperature and system monitoring under defined operating conditions.
Overview
Control Panels are engineered for automation systems requiring stable electrical supply, operational safety, and accurate control functions. They are designed to operate reliably within defined environmental and electrical limits.
Operating Environment (As Provided)
- Operating temperature range: 0°C to 40°C
- Operating humidity range: 0 to 90% RH
- Control IP rating: IP30
- Control safety construction: Class
- Mains supply: 230 Vac nominal (200 Vac to 253 Vac), 50 Hz
- On-board supply fuse: 1AT
- Rated impulse voltage: 2500 V
Performance Specifications (As Provided)
- Operation by Class A software and Type 2 action (Version 3)
- Mains supply to the electronic circuit protected by a time-delay fuse
- Flame failure input: 230 Vac nominal (200 Vac to 253 Vac), 50 Hz
- Presence of voltage indicates flame failure condition
Control & Output Features (As Provided)
- Burner reset output selectable as volt-free or Live/Neutral via plug-in jumper
- Remote volt-free switch outputs rated at 24 Vdc / 5 mA
- Built-in room temperature sensor with measuring range of 0°C to 30°C
- Temperature resolution: 0.2°C
- Adjustable temperature sensor offset to compensate for tolerance and installation effects
Operational Benefits (As Provided)
- Stable and safe control of automation systems
- Accurate temperature monitoring and adjustment
- Reliable protection against electrical and operational faults
- Suitable for industrial and building automation applications
