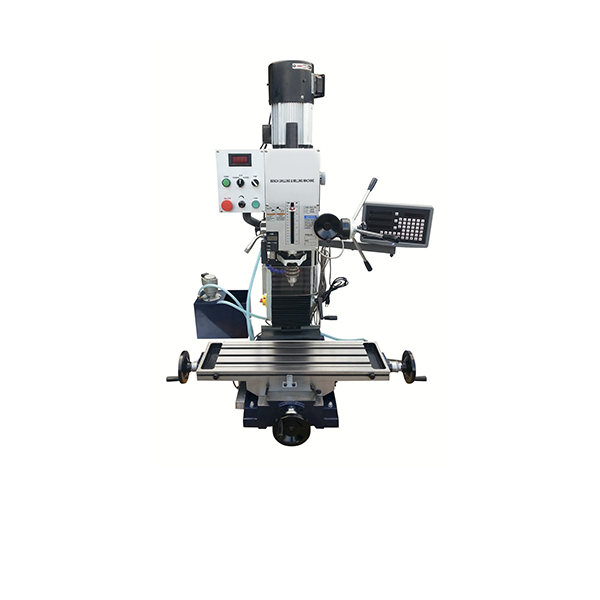

Milling Machines
High quality Milling Machines designed for precise material removal, surface machining, and complex part production in industrial manufacturing environments.
Overview
Milling machines are versatile machine tools used to remove material from a workpiece by means of rotating cutting tools known as milling cutters. The workpiece, typically made of metal but also suitable for plastics and other materials, is securely clamped to a table or carriage and moved relative to the rotating cutter to achieve the desired shape.
Basic Definition
A milling machine is a machine tool on which work, usually of metal, secured to a carriage or table, is shaped by rotating milling cutters. The cutting action is achieved by the combined motion of the cutter rotation and the controlled movement of the workpiece.
Working Principle
Milling is a machining process in which material is removed by feeding a workpiece against a rotating cutter. The cutter rotates on its axis, while the workpiece is moved linearly or rotationally along one or more axes. Material removal occurs through successive cutting edges on the milling cutter.
Machine Versatility
Milling machines are among the most versatile machine tools used in manufacturing. They are commonly used to machine flat surfaces but are also capable of producing irregular contours, slots, grooves, keyways, and complex three-dimensional shapes. In addition, milling machines can perform drilling, boring, gear cutting, and tapping operations.
Common Types of Milling Machines
- Vertical Milling Machines: The most common type, featuring a vertically oriented spindle. Widely used in workshops and educational environments.
- Horizontal Milling Machines: Equipped with a horizontally oriented spindle, suitable for heavy cutting and slab milling.
- Universal Milling Machines: Allow the table to swivel, enabling angular milling operations.
- CNC Milling Machines: Computer-controlled machines offering high precision, repeatability, and automation.
- Bed-Type Milling Machines: Designed for heavier workpieces with increased rigidity.
Milling Operations
Milling operations can be classified into several general categories based on the orientation of the cutter and the type of surface produced.
- Face Milling: Machining flat surfaces perpendicular to the axis of the cutter.
- Plain (Slab) Milling: Machining flat surfaces parallel to the axis of the cutter.
- Angular Milling: Machining flat surfaces inclined at an angle to the cutter axis.
- End Milling: Producing slots, pockets, and complex profiles using end mills.
- Slot Milling: Cutting keyways, grooves, and slots.
- Gear Milling: Producing gear teeth and spline profiles.
Materials That Can Be Machined
- Carbon and alloy steels
- Stainless steel
- Aluminum and aluminum alloys
- Cast iron
- Copper and brass
- Plastics and composite materials
Applications
- General metal fabrication
- Automotive and aerospace component manufacturing
- Mold and die making
- Tool and fixture production
- Maintenance and repair workshops
Advantages
- High versatility for multiple machining operations
- Excellent dimensional accuracy and surface finish
- Capability to machine complex geometries
- Wide range of cutter options for different applications
- Compatibility with manual, semi-automatic, and CNC control systems
Industrial Importance
Milling machines are a cornerstone of modern manufacturing and machining processes. Their flexibility, precision, and ability to handle a wide range of materials and operations make them indispensable in both small workshops and large-scale industrial production facilities.
