Dowel Bar Installation: Methods, Tolerances & Best Practices

A perfectly specified, properly coated, correctly sized dowel bar still fails its job if it ends up at a 10-degree angle to the joint or 30mm above the slab mid-depth. Installation accuracy is what determines whether the dowel actually performs its load-transfer function for the next 30-50 years — or becomes a stress concentrator that locks the joint and accelerates pavement failure.

This guide covers the three installation methods used worldwide, the alignment tolerances mandated by ACPA Guide Specifications and FHWA performance standards, the testing protocols (MIT-DOWEL-SCAN per ASTM E3013) used to verify post-placement positioning, and the quality control checkpoints that separate a successful installation from a problematic one.

For contractors, site engineers, paving foremen, and QA inspectors — this is the comprehensive reference for dowel bar installation on highway, airport, and industrial concrete pavement projects.

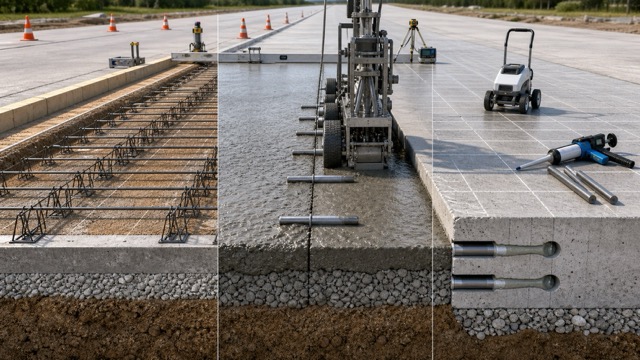

The Three Installation Methods

Dowel bars are installed in concrete pavement by one of three methods, depending on the project type and the construction joint context:

Method 1: Pre-Placed Dowel Basket Assemblies

The dowel bars are pre-assembled into welded or tied steel baskets that hold them at correct spacing, depth, and alignment. The baskets are placed on the prepared subbase before paving and anchored with steel pins. The slipform paver pours concrete over the baskets, which remain permanently embedded in the slab.

This is the most common method for new pavement construction worldwide — used on the majority of highway, urban arterial, airport, and industrial paving projects.

For complete coverage of basket types, sizes, anchoring, and pre-pour inspection, see the Dowel Baskets: Types & Installation Guide.

Method 2: Dowel Bar Inserter (DBI) on Slipform Paver

A DBI is a hopper-and-vibrator attachment mounted on a slipform paver that automatically inserts dowel bars into wet concrete behind the paver's screed. As the paver moves forward placing concrete, the DBI:

1. Holds dowel bars in a magazine or hopper

2. Drops a row of dowels (one per bar position) into the wet concrete

3. Activates a vibrator system that pushes the dowels down to mid-depth

4. Vibrates them into proper horizontal alignment

DBIs are common on major motorway construction, multi-kilometer highway projects, and high-production paving where the speed and consistency of mechanical insertion outweigh the capital cost of the equipment.

Method 3: Drilled-In Dowel Bars (Construction Joints and Retrofit)

For construction joints (planned end-of-day stops in continuous paving operations) and dowel bar retrofit (DBR — adding load transfer to existing pavements), holes are drilled into hardened concrete and dowel bars are placed with epoxy or grout.

For DBR-specific installation procedures, see the Dowel Bar Retrofit (DBR) guide.

Basket Installation Method (Step-by-Step)

The most common dowel bar installation procedure, used on most highway and pavement projects:

Pre-Placement Preparation

1. Subbase preparation The subbase must be properly compacted, leveled, and free of debris. Loose material, soft spots, or unevenness in the subbase will cause the basket to settle unevenly during concrete placement.

2. Joint location marking Each transverse joint location is surveyed and marked on the subbase. The basket must be positioned within ±10mm of the planned joint location — too far off and the joint forms in the wrong place, leaving the dowels not crossing the joint properly.

3. Basket preparation Dowel baskets arrive at the site with shipping bands. The bands are removed (or designed to break during placement) before the basket is set on the subbase. Bond breaker is verified (pre-applied) or applied (one half of each bar) at this stage.

Basket Placement

4. Position the basket The basket is placed on the subbase, centered on the planned joint location, with the dowel bars perpendicular to the centerline of the road. The basket frame should sit flat on the subbase without rocking.

5. Verify orientation The bond breaker direction must alternate per project specification — typically all bond breakers point the same direction at any given joint, but adjacent joints alternate left-right. This ensures the joints can move in opposite directions if needed.

6. Drive anchor pins Anchor pins are driven through holes in the basket frame into the subbase. Pin diameter, length, and quantity match the subbase type:

Pins must be driven full depth — not just tacked. The basket must not move when pushed by hand.

Pre-Pour Inspection (CRITICAL)

7. Verify dowel alignment Check each dowel for:

• Horizontal alignment: ±5mm over 450mm length

• Lateral alignment: ±5mm over 450mm length

• Angular alignment: within ±5° of perpendicular to joint

• Depth: at slab mid-depth (T/2 from finished surface)

8. Verify spacing

• Dowel-to-dowel spacing matches specification (300mm or 230mm c/c)

• Edge distance from lane edge to outermost dowel: 150-450mm range, 230-250mm typical

9. Verify coating condition

• Epoxy intact, no visible damage

• Weld points repaired with epoxy patching compound

• No oil, grease, or contamination

• Bond breaker visible on one half of every bar

10. Verify basket anchoring

• All pins fully driven

• Basket does not move under hand pressure

Inspection record: A formal pre-pour inspection record must be completed and signed by the inspector before concrete placement is authorized.

Concrete Placement

11. Slipform paver passes over baskets The paver is positioned so its tracks pass alongside (not directly on top of) the dowel baskets. The screed places concrete over the baskets, the auger distributes it, and the vibrators consolidate it.

12. Verify post-placement (immediately after pour) While the concrete is still workable, the inspector checks that:

• Concrete has filled around all dowel bars

• No basket has been displaced (visible at the slab surface as a deformation)

• The transverse joint location is correct

13. Joint formation The transverse joint is formed by saw-cutting after the concrete has reached sufficient strength (typically 4-12 hours after placement, depending on conditions). The cut depth is approximately T/3 (one-third of the slab thickness). The cut creates the planned crack location, which forms beneath the cut as the slab shrinks.

DBI Installation Method (Step-by-Step)

For projects using a Dowel Bar Inserter:

Pre-Production Preparation

1. DBI calibration The DBI is calibrated for:

• Bar drop position (centered on joint location)

• Drop spacing (300mm c/c typical, or 230mm for airport runways)

• Insertion depth (slab mid-depth)

• Vibration intensity

2. Bar loading Dowel bars are loaded into the DBI hopper or magazine, sized for the diameter and length of the project specification.

3. Joint location pre-marking Joint locations are pre-marked on the subbase or on a leading sensor system. The DBI uses joint location signals to time bar insertion correctly.

During Paving

4. Synchronized insertion As the paver moves forward, the DBI receives the joint location signal and inserts a row of dowel bars at that point. The bars drop into the wet concrete behind the screed.

5. Vibratory positioning A vibrator system activates immediately after bar insertion, pushing the bars down to mid-depth and aligning them horizontally. The vibration ensures concrete fully encapsulates each bar.

6. Post-insertion verification (visual) Inspectors monitor the slab surface immediately behind the DBI for visible signs of misaligned bars (bar protrusions, irregular concrete consolidation around bar locations, surface bumps).

Post-Pour Quality Control

7. MIT-DOWEL-SCAN testing After concrete has cured (typically 24-72 hours), MIT-DOWEL-SCAN equipment scans the pavement to verify dowel bar position. This is the critical QC step for DBI-installed dowels — see detailed coverage below.

Drilled-In Dowel Installation

For construction joints and DBR retrofits:

Construction Joint Installation

1. Saw cut at joint location A full-depth saw cut is made at the planned construction joint location.

2. Drill dowel holes Holes slightly larger than the dowel diameter (typically 3-5mm oversize) are drilled into the existing slab face. Hole spacing: 300mm c/c standard. Hole depth: 225mm (half the bar length).

3. Clean holes Holes are cleaned with compressed air to remove drilling debris. Clean holes are essential for proper epoxy bond.

4. Epoxy injection A two-part structural epoxy is injected into the hole using a cartridge gun and mixing nozzle. The hole is filled approximately 1/3 to 1/2 with epoxy.

5. Insert dowel bar The dowel bar is pushed into the hole with a slight twisting motion to ensure full epoxy distribution around the bar. Excess epoxy squeezes out of the hole — this is normal.

6. Cure time The epoxy cures per manufacturer specification — typically 4-24 hours depending on temperature and product.

7. Place adjacent slab After epoxy cure, concrete is placed against the existing slab face, encapsulating the protruding half of each dowel bar.

For DBR retrofit installation procedures (which differ in slot cutting and concrete patching), see the Dowel Bar Retrofit (DBR) guide.

Alignment Tolerances per ACPA Guide Specifications

The American Concrete Pavement Association (ACPA) has established quantitative alignment tolerances that have become the global benchmark for dowel bar installation quality:

ACPA Alignment Tolerances

These tolerances are measured per individual dowel bar, not as averages. A single bar exceeding tolerance is a defect that may require remediation.

Joint Score System

ACPA uses a Joint Score system to assess overall joint quality based on individual dowel bar alignment:

• Joint Score 0: All dowels within tolerance — pass

• Joint Score 1-2: 1-2 dowels marginally out of tolerance — accept with monitoring

• Joint Score 3+: 3 or more dowels significantly out of tolerance — repair or replace

For a typical 11-dowel joint, a Joint Score of 3 means approximately 27% of dowels are misaligned, indicating systematic installation problems rather than isolated incidents. Joints with high Joint Scores may require dowel bar retrofit (DBR) to restore proper load transfer.

MIT-DOWEL-SCAN Testing per ASTM E3013

MIT-DOWEL-SCAN (Magnetic Imaging Tomography Dowel Scan) is the standard non-destructive testing method for verifying dowel bar position in cured concrete pavement, governed by ASTM E3013.

How MIT-DOWEL-SCAN Works

The MIT-DOWEL-SCAN equipment uses magnetic imaging to detect ferrous reinforcement (dowel bars) in concrete. The scanner is moved across the pavement surface above each joint, and software calculates the position of each dowel bar based on the magnetic signature.

Output:

• 3D position of each dowel bar (X, Y, Z coordinates)

• Horizontal alignment per bar

• Vertical alignment per bar

• Angular skew per bar

• Translation from planned position

• Joint Score for the joint

When MIT-DOWEL-SCAN Is Required

Most modern major highway and motorway specifications require MIT-DOWEL-SCAN testing for:

• Random sample joints (typically 1 in 10 or 1 in 20)

• Any joints where surface signs suggest misalignment

• Construction joints with drilled-in dowels

• DBR retrofit installations

MIT-DOWEL-SCAN Limitations

The equipment cannot detect:

• Stainless steel dowel bars (low magnetic signature)

• FRP / GFRP dowel bars (non-metallic)

For projects using stainless or FRP dowels, alternative testing methods (such as ground-penetrating radar) may be specified.

For most highway pavement projects using carbon steel dowels with epoxy or galvanized coating, MIT-DOWEL-SCAN is the standard QC tool.

Common Installation Errors (And How to Prevent Them)

After 15+ years supplying dowel bars to highway and pavement projects, these are the installation errors that cause the most field problems:

Error 1: Insufficient Anchor Pin Engagement

Symptom: Basket moves during concrete placement; dowel bars end up misaligned.

Cause: Anchor pins not driven full depth into subbase, OR insufficient pins for soft subbase, OR pins too short for granular subbase.

Prevention: Match pin specification to subbase type. Use a properly weighted hammer or driving tool. Verify basket cannot be moved by hand pressure before pour.

Error 2: Skewed Bars at Joint

Symptom: Random cracking near the joint; load transfer reduced; faulting develops.

Cause: Bars not perpendicular to joint — angular skew >5°. Often results from basket frame distortion or improper anchoring.

Prevention: Inspect each basket before placement. Replace any deformed baskets. Verify perpendicularity before driving anchor pins.

Error 3: Bars Too Shallow or Too Deep

Symptom: Reduced load transfer at the joint; potentially exposed bars at the surface.

Cause: Basket not at the correct depth; subbase not flat; basket settled during pour.

Prevention: Verify subbase elevation. Specify proper basket frame height for the slab thickness. Check depth before pour using a measuring rod against the basket frame.

Error 4: Missing or Damaged Bond Breaker

Symptom: Joint cannot open; random cracking develops in the slab; restraint stress causes premature cracking.

Cause: Bond breaker not applied to one half of each bar, OR damaged during placement, OR applied to wrong side of bars.

Prevention: Use pre-applied bond breaker where possible. If applying on site, verify coverage on one half of every bar. Verify orientation matches project specification.

Error 5: Coating Damage from Handling

Symptom: Premature corrosion at coating defect locations; localized concrete spalling within 5-10 years.

Cause: Bars dropped, scraped, or impacted during basket loading or installation. Damage may be small holidays not visible to the naked eye.

Prevention: Handle baskets carefully. Use slings or mechanical handling rather than direct lifting where possible. Inspect bars before placement. Repair any visible coating damage with epoxy patching compound. Use ASTM G62 holiday testing for verification.

Error 6: Concrete Placement Damaging Basket

Symptom: Basket displaced; bars at wrong angle; surface defects.

Cause: Slipform paver tracks running directly on top of baskets, OR concrete dump truck tires running on baskets, OR equipment vibration shifting basket.

Prevention: Plan paver and dump truck routes to avoid running on baskets. Use track guides or marking. Increase anchor pin spec for high-vibration conditions.

Error 7: DBI Calibration Errors

Symptom: Bars misplaced consistently across multiple joints (systematic error).

Cause: DBI not properly calibrated for joint location signal, OR insertion depth, OR vibrator timing.

Prevention: Calibrate DBI before each work session. Verify with first-joint MIT-DOWEL-SCAN testing. Check calibration regularly throughout the day.

Pre-Pour Quality Control Checklist

A comprehensive pre-pour QC checklist for basket-method installations:

Subbase

• Subbase compacted and level

• No soft spots or unevenness

• Subbase clear of debris

• Joint locations surveyed and marked

Basket

• Basket size matches lane width and dowel spec

• Welded baskets: weld points repaired with epoxy patch

• Bars at specified diameter (e.g., 32mm)

• Bars at specified length (e.g., 450mm)

• Coating intact, no visible damage

• No oil/grease/contamination on bars

• Bond breaker visible on one half of every bar

• Bond breaker direction matches project spec

Position

• Basket positioned within ±10mm of planned joint location

• Basket square to centerline (not skewed)

• Basket sits flat on subbase (no rocking)

• Edge distance from lane edge to outermost dowel meets minimum

Anchoring

• All anchor pins present

• Anchor pins driven to full depth

• Pins fit subbase type (8/10/12mm diameter as appropriate)

• Pin length appropriate for subbase

• Basket cannot be moved by hand pressure

Alignment

• Dowels parallel to centerline of pavement

• Dowels perpendicular to joint (within ±5°)

• Dowels horizontal (±5mm over 450mm length)

• Dowels at correct depth (slab mid-depth)

• Spacing 300mm c/c (or 230mm for airport runways)

• Edge distance 230-250mm typical

Documentation

• Pre-pour inspection record signed

• Photos taken (recommended)

• Joint location and basket info logged

Post-Pour Quality Control

After concrete placement and saw cutting, post-pour QC includes:

Visual inspection

• Surface free of bumps or deformations indicating displaced bars

• Joint formed at the planned location

• No concrete bleeding or honeycombing around dowel locations

MIT-DOWEL-SCAN testing

• Random sample joints tested per project specification

• Joint Scores documented

• Any failed joints flagged for remediation

Joint sealing inspection

• Saw cut depth correct (T/3 typical)

• Joint cleaned and sealed before opening to traffic

Special Considerations for Hot/Cold Weather

Hot Weather Installation (>30°C)

In hot weather, concrete sets faster, and DBI insertion timing is more critical. Adjustments include:

• Increased water curing during cure period

• Earlier saw cutting (concrete reaches saw-cutting strength faster)

• Bond breaker may need to be applied later (earlier application can dry before pour)

• Anchor pin holes more important — hot, dry subbase may require deeper pin embedment

Cold Weather Installation (<5°C)

In cold weather:

• Epoxy curing is slower for drilled-in installations

• Bond breaker grease may be too viscous to apply easily

• Subbase frost heave can affect basket settlement

• Concrete cure time is extended, delaying saw cutting

Documentation Requirements for Inspection

Modern highway and motorway specifications increasingly require comprehensive installation documentation:

Pre-pour records

• Inspection checklist (filled and signed)

• Photos of basket placement

• Anchor pin verification

• Bond breaker verification

Post-pour records

• MIT-DOWEL-SCAN reports per joint sampled

• Joint Score for each tested joint

• Surface condition observations

• Any remediation actions taken

Material records

• Mill test certificates for dowel base steel

• Coating certifications (ASTM A1078 / A775 / A1094 / A955 / D7957 as applicable)

• Holiday test reports

• Manufacturer's name and batch numbers

This documentation creates a permanent record that enables long-term performance tracking. If joints develop faulting after 20 years, the records can identify whether the issue traces to material specifications, installation practices, or both.

Supply from Kasko Makine

Kasko Makine supplies dowel bars and complete installation materials for highway, airport, container terminal, and industrial concrete pavement projects:

Dowel bars: All standard diameters and lengths in epoxy, galvanized, stainless, and FRP coatings. See Epoxy vs Galvanized vs Stainless vs FRP for selection guidance.

Pre-assembled dowel basket assemblies: Welded or tied baskets with dowels pre-loaded, anchor pin holes, and shipping protection. Standard 11-dowel and 12-dowel baskets for highway lanes; custom configurations available. See the Dowel Baskets: Types & Installation Guide for complete specifications.

Anchor pins: Hardened steel pins matched to subbase type (8/10/12mm diameter, 150-300mm length). Quantity calculated per basket and subbase specification.

Pre-applied bond breaker: Optional service applying bond breaker to one half of each dowel bar at the factory — eliminates on-site application and ensures consistency.

Drilled-in dowel materials: For DBR retrofit and construction joint installations, including dowels, structural epoxy cartridges, and chairs.

Documentation per shipment:

• EN 10204 Type 3.1 mill test certificates

• Coating certifications per relevant ASTM standard

• Holiday testing reports (epoxy coated)

• Coating thickness measurements

• Basket manufacturing certificates (for pre-assembled baskets)

• Welding procedure qualifications

• Dimensional verification reports

Technical support: Our technical team can review project specifications, recommend appropriate dowel bar size and coating, and provide installation guidance for first-time contractors. For projects with specialized requirements (DBI installation, MIT-DOWEL-SCAN protocols, DBR retrofit), we can connect you with experienced installers in your region.

Request dowel bar pricing with installation guidance — send us your project details (slab thickness, pavement length, lane width, transverse joint spacing, and installation method) to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We respond within 24 hours with a complete quotation including dowel bars, baskets, anchor pins, bond breaker (if specified), and installation reference materials. We deliver to projects across Africa, the Middle East, Central Asia, and beyond.

Continue Reading: Complete Dowel Bar Series

This installation guide is part of our comprehensive dowel bar guide series:

• Dowel Bars: The Complete Guide — The master pillar covering specifications, sizes, materials, and selection

• Dowel Bar vs Tie Bar: 8 Differences — Critical comparison preventing pavement specification mistakes

• Dowel Bar Sizes & Diameter Chart — Comprehensive sizing reference for every slab thickness

• Epoxy Coated Dowel Bars: ASTM A1078 — The global standard coating in detail

• Epoxy vs Galvanized vs Stainless vs FRP — Coating comparison with cost analysis

• Dowel Baskets: Types & Installation — Basket assemblies and pre-pour quality control

• Dowel Bar Retrofit (DBR) — Adding load transfer to existing pavements

• Dowel Bar Load Transfer Engineering — Friberg's analysis and LTE calculations

• Dowel Bar Supplier & Procurement Guide — How to source dowel bars correctly

FAQ SCHEMA

Q: What is the standard method for installing dowel bars in concrete pavement?
A: The most common method is pre-assembled dowel basket assemblies — steel cages that hold dowel bars at correct spacing and alignment. The baskets are placed on the prepared subbase before paving and anchored with steel pins. The slipform paver pours concrete over the baskets, which remain permanently embedded in the slab. Other methods include Dowel Bar Inserter (DBI) attachments on slipform pavers (used for high-production motorway construction) and drilled-in dowels with epoxy (used for construction joints and retrofit installations).

Q: What are the alignment tolerances for dowel bars?
A: Per ACPA Guide Specifications: horizontal misalignment ±5mm over 450mm bar length, vertical misalignment ±5mm, angular skew ±5° from perpendicular to joint, longitudinal translation ±25mm, and vertical depth at slab mid-depth ±5mm. These tolerances are measured per individual dowel bar, not as averages. A single bar exceeding tolerance is a defect that may require remediation.

Q: How are dowel bars tested after placement?
A: MIT-DOWEL-SCAN (Magnetic Imaging Tomography Dowel Scan) per ASTM E3013 is the standard non-destructive testing method. The equipment uses magnetic imaging to detect dowel bar position in cured concrete and provides 3D coordinates, alignment data, and Joint Scores for each tested joint. MIT-DOWEL-SCAN cannot detect stainless steel or FRP dowels (low magnetic signature), so alternative methods like ground-penetrating radar are used for those materials.

Q: What is a Joint Score?
A: Joint Score is an ACPA quality metric assessing overall joint quality based on individual dowel bar alignment. Score 0 means all dowels within tolerance (pass). Score 1-2 means 1-2 dowels marginally out of tolerance (accept with monitoring). Score 3+ means 3 or more dowels significantly out of tolerance (repair required). For a typical 11-dowel joint, Joint Score 3 means approximately 27% of dowels are misaligned, indicating systematic installation problems.

Q: What's the difference between using dowel baskets and a Dowel Bar Inserter?
A: Dowel baskets are pre-placed before concrete pouring — the basket holds the bars in correct position before the slipform paver pours concrete over it. A Dowel Bar Inserter (DBI) is a slipform paver attachment that automatically inserts dowel bars into wet concrete behind the paver's screed. Baskets are easier to inspect before pour and require no specialized equipment. DBIs offer higher production speed but require capital investment in equipment. Most highway projects use baskets; major motorway construction often uses DBIs.

Q: How are construction joint dowels installed differently?
A: For construction joints (planned end-of-day stops in continuous paving), holes are drilled into the existing slab face after the slab has hardened. The holes are cleaned, structural epoxy is injected, and the dowel bar is pushed into the hole with a slight twisting motion. After epoxy cures (4-24 hours), concrete is placed against the existing slab face, encapsulating the protruding half of each dowel bar. This is similar to dowel bar retrofit (DBR) installation but performed at the construction joint location during the original paving rather than as a rehabilitation.

Q: What is the most common dowel bar installation error?
A: Inadequate anchor pin engagement is the most common error. If anchor pins are not driven full depth into the subbase, or if too few pins are used, or if pins are too short for the subbase type, the basket can move during concrete placement. The dowel bars end up misaligned (skewed, at the wrong depth, or shifted from the planned position), which compromises load transfer for the design life of the pavement. The fix is straightforward: match pin specification to subbase type and verify the basket cannot be moved by hand pressure before concrete placement.
