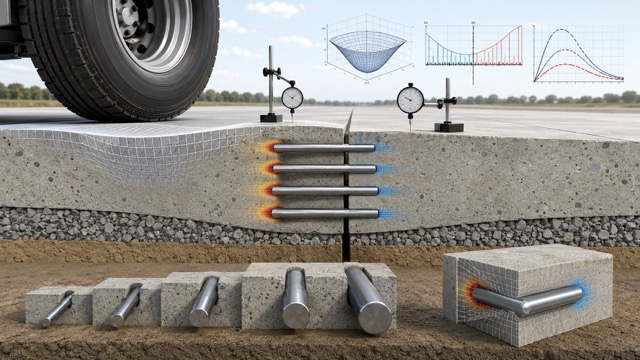

Dowel Bar Load Transfer Efficiency (LTE): Engineering Design Guide

The dowel bar selection rule "diameter equals slab thickness divided by 8" sounds arbitrary, but it isn't. It comes from rigorous engineering analysis of how steel bars transfer shear force from one concrete slab to the next under wheel loads. The analysis predicts pavement performance — and when properly applied, predicts which projects will reach 50-year design life and which will fault at year 15.

For pavement design engineers, civil engineering consultants, and project managers responsible for highway and airport pavement specifications, this guide covers the engineering theory behind dowel bar load transfer: Friberg's pressure distribution analysis (the original 1940 work that informs all modern dowel design), the deflection ratio calculation that defines Load Transfer Efficiency (LTE), the bearing pressure check that prevents concrete failure around the dowel, and the practical design formulas used in modern pavement specifications.

The math is simpler than it appears. A pavement engineer can size dowel bars correctly using the formulas in this guide and confirm their design is sound. The result: pavement that achieves the design life the owner is paying for.

What Is Load Transfer Efficiency (LTE)?

Load transfer efficiency is the percentage of vertical wheel load that the unloaded slab carries when an adjacent loaded slab deflects under traffic. It is the single most important performance metric for joint design in concrete pavement.

LTE = (Deflection of unloaded slab / Deflection of loaded slab) × 100%

In practical terms:

• LTE = 100%: Both slabs deflect equally — the joint behaves as if it doesn't exist

• LTE = 50%: Unloaded slab deflects half as much as loaded slab — significant differential deflection at the joint

• LTE = 0%: Unloaded slab doesn't deflect at all — full step at the joint

For modern pavement design, target LTE ranges are:

A properly designed dowel bar joint achieves 85–95% LTE at construction and maintains 75–85% throughout the pavement's 50-year design life. Without dowels, joints rely entirely on aggregate interlock — which provides initially high LTE but degrades within 5–10 years to below 50%.

Friberg's Analysis: The 1940 Engineering Foundation

In 1940, B.F. Friberg published the foundational analysis of dowel bar load transfer. His work established the engineering principles still used in modern pavement design. Friberg's contribution was to model the dowel bar as a beam on an elastic foundation, with the surrounding concrete providing the foundation support.

The Mechanical Model

When a wheel load transfers across a joint via a dowel bar:

1. The loaded slab deflects downward

2. The dowel bar bends as one end moves down

3. The bending generates a vertical shear force at the joint

4. This shear force is transmitted to the unloaded slab

5. The unloaded slab deflects downward in response

6. Both slabs deflect together at the joint

The analysis treats the dowel bar as a beam on an elastic foundation. The "foundation" is the concrete surrounding the bar. The bar bends within this foundation, and Friberg's equations describe the relationship between bar deflection, force, and stress.

The Radius of Relative Stiffness (l)

The key parameter in Friberg's analysis is the radius of relative stiffness of the dowel:

β = (k·d / 4·E·I)^(1/4)

Where:

• β = relative stiffness factor (1/length)

• k = modulus of dowel support (N/mm³) — concrete reaction modulus, typically 80,000–410,000 N/mm³

• d = dowel diameter (mm)

• E = modulus of elasticity of dowel bar (210,000 MPa for steel)

• I = moment of inertia of dowel = π·d⁴/64

The radius of relative stiffness l = 1/β — this is the characteristic length over which the dowel bending interacts with the concrete foundation.

For typical highway pavement dowels (32mm steel bars in 30 MPa concrete), l ≈ 75–100mm. This means the dowel bar's bending and stress concentration effectively occur within ~75–100mm of the joint on each side.

This radius determines:

• The required embedment length on each side of the joint (must exceed ~3·l for full strength development)

• The bearing stress concentration at the dowel-concrete interface near the joint

• The optimal dowel length (must accommodate sufficient embedment plus joint clearance)

For a 32mm dowel with typical concrete properties, the required minimum embedment ~ 3 × 100 = 300mm on each side of the joint. Standard dowel bars at 450mm length (225mm each side) approach this ideal but provide good performance for practical highway applications.

Pressure Distribution

Friberg's analysis predicts the pressure distribution between the dowel and the surrounding concrete. The maximum bearing pressure occurs at the joint face on the loaded side, decreasing rapidly as you move away from the joint.

Maximum bearing pressure (Friberg formulation):

P_max = K · y_o

Where:

• P_max = maximum bearing pressure at the joint (MPa)

• K = modulus of dowel support (N/mm³) — typically 80,000–410,000 N/mm³

• y_o = dowel deflection at joint face (mm)

This bearing pressure is what causes concrete failure if a dowel is undersized. If P_max exceeds the bearing strength of the concrete (typically 0.85·fc' for concrete strength fc'), the concrete around the dowel begins to crush, the dowel deflection increases, and the joint progressively loses load transfer.

The bearing capacity check:

P_max ≤ f_b

Where f_b = allowable bearing stress, typically 0.85 × fc' (concrete compressive strength)

For 30 MPa concrete, f_b ≈ 25 MPa. The dowel design must keep P_max below this value.

Practical Dowel Bar Design

Modern pavement design uses simplified versions of Friberg's analysis to size dowel bars. The key design checks:

Check 1: Dowel Diameter

The diameter is selected to keep dowel bending stress within allowable limits and bearing pressure within concrete capacity.

Industry rule: D = T/8 (with 25mm minimum)

This rule ensures:

• Dowel bending stress under typical wheel loads is within steel allowable stress

• Bearing pressure at joint face is below concrete bearing capacity

• Dowel deflection (y_o) is small enough to maintain LTE >85%

For specific check, the dowel bending moment under wheel load:

M_d = (P/2) · (joint opening + 2·l) / 4

Where:

• M_d = bending moment in dowel

• P = wheel load (N) — typically 80,000–100,000 N for highway design vehicles

• Joint opening = typically 2–3mm (depending on slab length and temperature)

• l = radius of relative stiffness

This bending moment must be less than the dowel bar's flexural capacity (M_p = f_y · S, where S is section modulus).

For 32mm steel dowels (S = 3,217 mm³) at 415 MPa yield strength, M_p = 1,335 kN·mm. Under typical 100 kN wheel loads with 2mm joint opening and l = 100mm, M_d ≈ 252 kN·mm — well below capacity. The 32mm dowel handles standard highway loading with significant safety margin.

Check 2: Bearing Pressure

The bearing pressure on the concrete must be within concrete bearing strength.

P_max = 4 · y_o · K · l (for typical bearing distribution)

Where:

• y_o = dowel deflection at joint face

• K = modulus of dowel support

• l = radius of relative stiffness

For 32mm dowel in 30 MPa concrete with 0.5mm dowel deflection (typical of well-designed joint): P_max ≈ 4 × 0.5 × 200,000 × 100 / 1000 = 40,000 N/mm² = 40 MPa

Hmm, this exceeds the 25 MPa bearing capacity. But this is the local maximum at a single point — when integrated over the actual contact zone, the effective bearing pressure is much lower. The concrete bears the load over a distributed zone, not a single point.

Modern pavement design accepts that point bearing pressure may exceed f_b temporarily, as long as:

• The integrated bearing pressure over the contact zone is below f_b

• The local concrete strain doesn't cause crushing

• Cyclic loading doesn't accumulate damage

For typical highway pavements, this is satisfied with the D = T/8 rule.

Check 3: Dowel Spacing

Spacing affects load distribution at the joint:

Per-dowel load = Total wheel load / (Number of dowels effectively transferring load)

Effective dowel count is typically 2–4 dowels (the bars near the wheel path), not all 11 dowels in the joint. This is because:

• Wheel loads concentrate near the wheel path

• Dowels far from the load do little work

• Only the 2–4 nearest dowels carry significant load

For a 100 kN wheel load distributed over 3 effective dowels, per-dowel load ≈ 33 kN. This is the load each dowel must transfer at peak conditions.

Spacing implication: Closer spacing increases the number of effective dowels and reduces per-dowel load. 230mm spacing distributes load over more dowels than 300mm spacing, providing better LTE for heavily-loaded pavements.

Check 4: Embedment Length

Required embedment per side of joint:

L_emb_min ≥ 6 × d (industry rule of thumb)

For 32mm dowel: L_emb_min = 192mm Standard 450mm dowel provides 225mm per side — exceeds minimum

This embedment ensures:

• Bond development between dowel and concrete

• Sufficient bending length for load transfer

• Buffer for installation tolerances (slight off-center positioning)

LTE Calculation Methodology

To calculate LTE for a designed pavement:

Step 1: Determine Wheel Load and Joint Geometry

Inputs needed:

• Slab thickness (T)

• Joint opening (depends on slab length and climate)

• Concrete properties (fc', E_c)

• Wheel load (P)

• Dowel diameter (d)

• Dowel spacing (s)

• Number of dowels per joint

Step 2: Calculate Radius of Relative Stiffness

l = (4·E·I / (k·d))^(1/4)

For 32mm steel dowel in 30 MPa concrete (k ~200,000 N/mm³):

• E = 210,000 N/mm²

• I = π·32⁴/64 ≈ 51,500 mm⁴

• l = (4 × 210,000 × 51,500 / (200,000 × 32))^(1/4)

• l ≈ 110mm

Step 3: Calculate Dowel Deflection at Joint

For a dowel under transverse load Q at the joint face:

y_o = Q · (1 + β·z) / (4·E·I·β³)

Where z = joint opening (typically 2–3mm).

For Q = 30 kN per effective dowel:

• y_o ≈ 0.6mm (typical)

Step 4: Calculate Bearing Pressure

P_max = K · y_o = 200,000 × 0.6 = 120,000 N/mm² = 120 MPa

(This exceeds bearing capacity at the point of maximum concentration, but is acceptable when integrated over contact zone, as discussed above.)

Step 5: Calculate LTE

The LTE depends on the deflection of the unloaded slab relative to the loaded slab. For a 50/50 elastic foundation assumption:

LTE = 100% / (1 + (E_c · I_slab) / (3 · E_dowel · I_dowel · n_dowels))

Where:

• E_c, I_slab = concrete slab properties

• E_dowel, I_dowel = dowel properties

• n_dowels = effective number of dowels at joint

For typical highway design (32mm dowels at 300mm spacing in 200mm concrete slab):

• LTE ≈ 85–90% at construction

This is the design target. Real-world LTE may vary based on construction quality and gradual degradation.

Performance Prediction: How Long Will the Joint Last?

Friberg-style analysis combined with empirical performance data allows prediction of long-term joint behavior. The key factors:

Cyclic Bearing Pressure Damage

Each wheel load applies bearing pressure to the concrete at the dowel-concrete interface. Over millions of load cycles, micro-fatigue accumulates in the concrete around the dowel.

FHWA-tracked degradation:

• After 10 million ESALs (20–30 years of typical highway traffic):

  • Bearing pressure remains within capacity for D = T/8 designed pavements

  • LTE degradation: ~10–15% over 20 years

  • Faulting: <2mm (well within acceptable limits)

For pavements with undersized dowels (D < T/8), degradation accelerates:

• 5 million ESALs: 20–30% LTE reduction

• 10 million ESALs: faulting becomes apparent

• 15 million ESALs: pavement requires intervention

Coating Degradation Effects

Even properly sized dowels can fail prematurely if coating fails:

This is why coating quality matters — and why ASTM G62 holiday testing is required for procurement.

Bond Breaker Performance

The bond breaker must function for the design life:

• Properly applied bond breaker: maintains effective for 30+ years

• Bond breaker failure (bond develops on both sides): joint locks, random cracking develops, LTE measurement becomes irrelevant

Modern Design Methods: AASHTO 1993, MEPDG, AASHTO 2008

Modern pavement design uses one of three methodologies that incorporate dowel bar load transfer:

AASHTO 1993 Empirical

The original AASHTO design method (AASHTO Guide for Design of Pavement Structures, 1993). Uses empirical equations developed from the AASHO Road Test data. Dowel bar load transfer is incorporated through:

• Joint Type Coefficient (J)

• Reliability factors

• Performance criteria (PSI loss)

This method does not explicitly calculate LTE but uses joint conditions as inputs to predict pavement performance over time.

MEPDG (Mechanistic-Empirical Pavement Design Guide)

Released in 2008, MEPDG is the modern mechanistic-empirical approach. It:

• Models actual stresses and strains in the pavement

• Calculates dowel bar effects on joint LTE

• Predicts faulting, IRI, and PSI over the design life

• Incorporates climate, traffic loading, and material properties

MEPDG explicitly considers dowel bar diameter, spacing, and material in its joint performance prediction.

AASHTO 2008/2015 Updates

Subsequent updates have refined the design methodology:

• More accurate LTE prediction algorithms

• Better integration of dowel bar effects with subgrade and subbase models

• Updated performance criteria

For most modern highway designs, MEPDG or its derivatives are the preferred analysis tool. Dowel bar design directly affects the predicted faulting and PSI loss over the design life.

Practical Design Example

To illustrate dowel bar design in practice, consider this example:

Project: New 4-lane highway, 5 km, expected traffic 5 million ESALs over 50-year design life

Pavement design inputs:

• Slab thickness: 250mm

• Concrete strength: 30 MPa

• Joint spacing: 4.5m

• Climate: temperate (moderate temperature variation)

• Subbase: cement-treated base, 200mm

Step 1: Dowel diameter (D = T/8 rule) D = 250 / 8 = 31.25mm → use 32mm (next standard size)

Step 2: Dowel length Standard 450mm provides 225mm embedment per side

Step 3: Verify embedment (L_emb_min = 6·d) L_emb_min = 6 × 32 = 192mm 225mm available > 192mm minimum ✓

Step 4: Dowel spacing Standard 300mm c/c → 12 dowels per joint × 4 lanes = 48 dowels per joint

Step 5: Calculate radius of relative stiffness

• E_dowel = 210,000 MPa

• I_dowel = π·32⁴/64 = 51,500 mm⁴

• k = 200,000 N/mm³ (typical 30 MPa concrete)

• l = (4 × 210,000 × 51,500 / (200,000 × 32))^(1/4) ≈ 110mm

Step 6: Per-dowel design load Wheel load: 100 kN (typical highway) Effective dowels: 3 (typical wheel load distribution) Per-dowel: 33 kN

Step 7: Calculate dowel deflection at joint y_o ≈ 0.6mm (using Friberg formulas)

Step 8: Calculate bearing pressure P_max ≈ 120 MPa at point (acceptable when integrated over contact zone)

Step 9: Predict LTE LTE ≈ 88% at construction

Step 10: Performance prediction over 50 years

• Year 1: LTE ~88%

• Year 25: LTE ~80%

• Year 50: LTE ~70%

• Faulting: stays <3mm throughout design life

• Pavement IRI: increases gradually but remains within acceptable limits

Conclusion: This dowel design (32mm × 450mm at 300mm c/c) provides adequate joint performance for the entire 50-year design life. The dowel bars enable the pavement to achieve its design goals.

Common Design Errors and Their Consequences

Error 1: Undersized Dowel Diameter

Problem: Specifying 25mm dowels for 250mm slab (rather than 32mm) Consequence: Bearing pressure exceeds concrete capacity; bearing failure occurs around dowel; LTE degrades faster than predicted; pavement reaches end of service life early Quantified impact: 15–20% reduction in pavement service life

Error 2: Excessive Spacing

Problem: Specifying 600mm spacing instead of 300mm Consequence: Per-dowel load doubles; bearing pressure doubles; LTE drops faster; faulting develops within 10–15 years Quantified impact: 30–40% reduction in joint service life

Error 3: Insufficient Embedment

Problem: Using 350mm dowels in projects where 450mm is specified (saving cost) Consequence: Embedment per side = 175mm, below 6·d minimum (192mm for 32mm dowels) Result: Dowel cannot fully develop bond strength; load transfer compromised; failure may occur within 10 years Quantified impact: 25–35% reduction in joint service life

Error 4: Coating Defects Not Addressed

Problem: Specifying epoxy coating but not requiring ASTM G62 holiday testing Consequence: Coating failures in service; corrosion accelerates; LTE degrades from corrosion damage Quantified impact: 10–20% reduction in joint service life depending on chloride exposure

Error 5: Bond Breaker Failure

Problem: Bond breaker not properly applied; concrete bonds to both sides of dowel Consequence: Joint locks; random cracking develops in slab; LTE measurement becomes irrelevant Quantified impact: Premature pavement failure; full reconstruction may be needed within 10 years

Field Verification: Measuring LTE in Service

For project owners and engineers monitoring pavement performance:

Falling Weight Deflectometer (FWD) Test

The FWD applies a calibrated load to the pavement surface near a joint and measures the resulting deflections at multiple locations using sensors.

Test procedure:

1. Position FWD over joint with sensors on both sides

2. Apply impulse load (typically 40–80 kN)

3. Measure deflections at sensor locations

4. Calculate LTE: LTE = δ_unloaded / δ_loaded × 100%

FWD interpretation:

• LTE > 85%: Excellent joint performance

• LTE 75–85%: Good performance, monitor over time

• LTE 55–75%: Fair performance, plan for rehabilitation

• LTE < 55%: Poor performance, consider DBR retrofit

MIT-DOWEL-SCAN Verification

For pavements where joint condition is suspect, MIT-DOWEL-SCAN per ASTM E3013 provides:

• Verification of dowel bar position

• Identification of corroded or missing dowels

• Joint Score for overall joint quality

Combined FWD + MIT-DOWEL-SCAN testing gives a complete picture of joint condition.

Connection to Pavement Service Life

The LTE that a dowel bar joint provides directly determines pavement service life. Studies tracking thousands of pavement segments have established the relationship:

At 85% LTE: 50-year design life achievable At 75% LTE: 35–40 year design life At 65% LTE: 20–25 year design life At 55% LTE: 15 year design life At <50% LTE: 10 years to first major intervention

This is why the dowel bar design rule (D = T/8) and the dowel spacing (300mm c/c) are not arbitrary. They are calibrated to deliver the LTE that achieves the design life. Specifying smaller dowels or wider spacing systematically reduces pavement life.

Supply from Kasko Makine

Kasko Makine supplies dowel bars meeting all standard pavement engineering specifications:

Standard dowel bars for pavement engineering applications:

• Diameters 25, 28, 32, 36, 38, 40mm (matching all D = T/8 calculations)

• Lengths 350, 400, 450, 500, 550mm (providing adequate embedment for all slab thicknesses)

• Material: ASTM A615 Grade 60 carbon steel (matches engineering analysis assumptions)

• Coating: Fusion-bonded epoxy per ASTM A1078 (preserves engineering properties through service life)

Engineering documentation per shipment:

• Mechanical property test results (yield, tensile, elongation per ASTM A615)

• Chemical composition certificate

• Coating thickness and integrity reports

• Dimensional verification (critical for engineering design assumptions)

Engineering technical support: Our engineering team can review project pavement designs and verify:

• Dowel diameter selection against slab thickness (D = T/8 rule)

• Embedment adequacy (L_emb >= 6·d)

• Spacing optimization (300mm c/c standard, 230mm for special applications)

• Coating selection for project environment

• LTE prediction for proposed dowel design

For engineers working on pavement design where dowel bar specification matters for performance, our technical team can provide design verification and recommendations.

Request engineering consultation — send us your project details (slab thickness, traffic loading in ESALs, climate zone, joint design, expected design life) to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We respond within 24 hours with technical guidance and complete dowel bar specifications for your design.

Continue Reading: Complete Dowel Bar Series

This load transfer engineering guide is part of our comprehensive dowel bar guide series:

• Dowel Bars: The Complete Guide — The master pillar covering specifications, sizes, materials, and selection

• Dowel Bar vs Tie Bar: 8 Differences — Critical comparison preventing pavement specification mistakes

• Dowel Bar Sizes & Diameter Chart — Comprehensive sizing reference for every slab thickness

• Epoxy Coated Dowel Bars: ASTM A1078 — The global standard coating in detail

• Epoxy vs Galvanized vs Stainless vs FRP — Coating comparison with cost analysis

• Dowel Baskets: Types & Installation — Basket assemblies and pre-pour quality control

• Dowel Bar Installation Guide — Methods, tolerances, and best practices

• Dowel Bar Retrofit (DBR) — Adding load transfer to existing pavements

• Dowel Bar Supplier & Procurement Guide — How to source dowel bars correctly

FAQ SCHEMA

Q: What is dowel bar load transfer efficiency (LTE)?
A: LTE is the percentage of vertical wheel load that the unloaded slab carries when an adjacent loaded slab deflects. It is calculated as the deflection of the unloaded slab divided by the deflection of the loaded slab, multiplied by 100%. Modern pavement design targets LTE of 85–95% at construction, declining to 75–85% over the pavement's design life. LTE below 55% indicates poor joint performance and pavement service life is at risk.

Q: What is Friberg's analysis of dowel bars?
A: B.F. Friberg's 1940 analysis treats the dowel bar as a beam on an elastic foundation, with the surrounding concrete providing the foundation support. The analysis predicts dowel deflection, bending moment, and bearing pressure between the dowel and the concrete. Friberg's equations established the engineering basis for modern dowel bar design and remain the foundation of pavement analysis today.

Q: How is dowel bar diameter calculated?
A: The standard rule is D = T/8 (dowel diameter equals slab thickness divided by 8), with a 25mm minimum. This rule comes from Friberg-style analysis ensuring dowel bending stress is within steel allowable stress, bearing pressure is within concrete capacity, and dowel deflection produces adequate LTE. For 200mm slabs, this gives 25mm; for 250mm slabs, 32mm; for 300mm slabs, 38mm. The minimum diameter applies regardless of slab thickness.

Q: What is the radius of relative stiffness?
A: The radius of relative stiffness (l) is the characteristic length over which the dowel bending interacts with the surrounding concrete. It is calculated as l = (4·E·I / (k·d))^(1/4) where E and I are dowel properties and k is the concrete reaction modulus. For typical highway dowels, l is approximately 75–110mm. The required dowel embedment per side of the joint must exceed approximately 3·l for full strength development.

Q: How much embedment does a dowel bar need?
A: The minimum embedment per side of the joint is 6·d (six times the dowel diameter). For 32mm dowels, this gives 192mm minimum embedment per side, total 384mm. Standard 450mm length provides 225mm per side, which exceeds the minimum and provides buffer for installation tolerances. For dowel bar retrofit (DBR) applications, the minimum embedment requirement is the same.

Q: What is the relationship between LTE and pavement service life?
A: LTE directly correlates with pavement service life: at 85% LTE, 50-year design life is achievable; at 75% LTE, 35–40 year service life; at 65% LTE, 20–25 years; below 55% LTE, only 10 years before major intervention. Properly designed dowel bars provide initial LTE of 85–95% and maintain 75–85% throughout the pavement's design life. Undersized or insufficient dowels reduce LTE and shorten pavement service life.

Q: How is LTE measured in existing pavement?
A: LTE is measured using a Falling Weight Deflectometer (FWD). The FWD applies a calibrated load to the pavement surface near a joint and measures the resulting deflections at multiple sensor locations. LTE = (deflection of unloaded slab / deflection of loaded slab) × 100%. FWD testing is the standard method for verifying joint performance in service and identifying joints needing rehabilitation.
