Epoxy vs Galvanized vs Stainless vs FRP Dowel Bars: Which Coating to Choose

A bare carbon steel dowel bar in a chloride environment lasts 5 to 10 years before corrosion compromises the joint. That is the problem every coating system is designed to solve — and the four options on the market today (epoxy, galvanized, stainless steel, FRP) solve it in fundamentally different ways, at very different price points, with very different service lives.

Choose the wrong coating and you either overspend by 4–5× (specifying stainless where epoxy would have lasted the design life) or underspend and watch your pavement fail decades early (specifying galvanized in a marine environment that needed stainless). For projects across Africa, the Middle East, and Central Asia — with vastly different climates, chloride exposures, and design life requirements — the right coating choice is project-specific.

This guide compares all four major dowel bar coating systems head-to-head: how they work, what they cost, how long they last, and which one is correct for which application.

Why Coating Matters: The Corrosion Problem

A dowel bar is partially embedded in concrete and partially in a joint that opens and closes seasonally. The concrete is alkaline (pH ~12–13), which would normally protect embedded steel from corrosion. But several real-world factors break this protection:

Chloride penetration. Deicing salts (NaCl, CaCl₂), seawater spray, and contaminated groundwater carry chloride ions through the concrete to the steel. When chloride concentration at the steel surface exceeds the threshold (typically 0.4% by weight of cement), the passive oxide layer breaks down and corrosion begins.

Carbonation. CO₂ from the atmosphere reacts with the concrete pore water, gradually dropping pH. Over 20–30 years, the carbonation front advances inward. When it reaches the steel, the alkaline protection is lost and corrosion starts.

Joint exposure. The portion of the dowel inside the joint itself is directly exposed to whatever fluids enter the joint — typically water carrying chlorides, oil, and contaminants from traffic.

Cyclic wetting and drying. Joints that fill with water during rain and dry between events accelerate corrosion through cycles of oxygen and chloride concentration.

The economic damage is severe. Once a dowel bar corrodes, the rust expands to several times the original steel volume, generating internal pressure that cracks the concrete around the bar. The crack spreads, the joint loses load transfer, faulting begins, and pavement service life is dramatically shortened. The cost of premature pavement replacement is 100–1000× the cost of the original dowel bar — which is why coating systems exist.

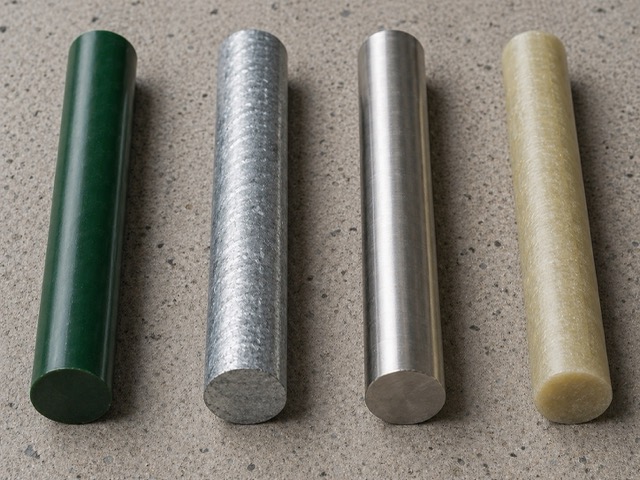

The Four Coating Systems

Coating 1: Fusion-Bonded Epoxy (FBE)

Standard: ASTM A1078 (with ASTM A775 for the coating itself)

A green powder epoxy is electrostatically applied to bars heated to 230–260°C, then cured into a hard, impermeable coating 200–300 micrometers (8–12 mil) thick. The epoxy bonds metallurgically to the steel surface and provides a chloride-impermeable barrier between the steel and the surrounding concrete.

Mechanism: Physical barrier. The coating prevents chloride ions from reaching the steel. Even if minor coating damage occurs (small holidays, scratches), corrosion is limited to the damaged area and does not propagate along the bar.

Service life in highway service (with deicing salts): 30–40 years

Service life in mild environments (no chloride): 50–60 years

Best for: Highway pavement (the global standard), urban arterials, parking areas, industrial concrete floors, airport taxiways. Any application where chloride exposure is moderate.

Limitations: Coating can be damaged during handling and concrete placement. Small holidays accelerate corrosion if undetected. Cut ends must be repaired with epoxy patching compound. UV exposure during long-term storage degrades the coating — bars must be protected from sunlight.

For complete coverage of fusion-bonded epoxy specifications, see Epoxy Coated Dowel Bars: ASTM A1078 Specifications.

Coating 2: Hot-Dip Galvanized

Standard: ASTM A1094

The bar is dipped into molten zinc at 450°C, creating a metallurgically bonded zinc coating typically 50–150 micrometers thick. The zinc layer protects the steel through two mechanisms simultaneously.

Mechanism: Sacrificial protection plus barrier. Zinc is more electrochemically active than steel — when chloride reaches the steel surface, the zinc corrodes preferentially, sacrificing itself to protect the steel. As long as zinc remains, the steel is protected even at locations where the coating is damaged.

Service life in highway service (with deicing salts): 15–25 years

Service life in mild environments: 30–50 years

Best for: Hot, dry climate pavement (Saudi Arabia inland, Egypt, UAE inland deserts) where chloride exposure is limited. Industrial concrete floors. Pavement in regions where epoxy supply is limited or galvanized is the local standard.

Limitations: Shorter service life than epoxy in heavy chloride environments because zinc corrodes faster than epoxy degrades. Once the zinc is consumed, the underlying steel begins corroding immediately. Galvanized bars are also slightly more expensive than epoxy in many markets.

Coating 3: Stainless Steel (Solid Bar)

Standard: ASTM A955

The bar itself is stainless steel — not coated. Common grades are 304 (general corrosion resistance), 316 / 316LN (chloride resistance), and 2205 duplex (highest chloride resistance plus high strength).

Mechanism: Inherent corrosion resistance from chromium content (10.5%+ Cr). Forms a self-healing passive oxide layer that re-forms automatically if scratched or damaged. No coating to fail or be damaged.

Service life in highway service: 75–100+ years (matching the design life of the pavement itself)

Service life in marine/severe chloride environments: 50–75 years (with appropriate grade)

Best for: Coastal highways with sea spray exposure, bridge decks and approach slabs in marine environments, airport runways with priority on long service life, infrastructure with 75+ year design life requirements, projects where pavement replacement is extremely expensive.

Limitations: Cost is 4–5× that of epoxy-coated. Not justified for normal highway pavement where epoxy provides adequate service life. Stainless grade selection matters — 304 is inadequate for coastal exposure where 316 or 316LN is required.

Coating 4: FRP / GFRP (Fiber-Reinforced Polymer)

Standard: ASTM D7957

The bar is glass fiber reinforced polymer — a composite of glass fibers in a vinyl ester or epoxy resin matrix. No metal at all.

Mechanism: Non-metallic, completely immune to electrochemical corrosion. The bar cannot rust under any circumstances. Also electromagnetically transparent — does not interfere with sensors, magnets, or electronic vehicle detection systems.

Service life: 100+ years (no degradation mechanism in concrete environment)

Best for: Highway tolling plazas where electronic vehicle detection requires non-magnetic dowels, automated guided vehicle (AGV) areas in industrial floors, magnetometer test pads, salt-spray-prone canal and desalination input channels, marine and chloride environments where stainless cost is prohibitive but corrosion immunity is required.

Limitations: Lower elastic modulus than steel (~25% of steel) means slightly more deflection under wheel loads — typically compensated by oversizing the bar. Not yet widely adopted in some markets. Cost is 2.5–3× that of epoxy-coated.

Head-to-Head Comparison Table

Cost Comparison: Relative Pricing

Using fusion-bonded epoxy as the baseline, the relative cost of each coating system for a typical 32mm × 450mm highway dowel bar is:

The economic implication for project budgeting: For a typical 4-lane highway requiring tens of thousands of dowel bars, switching from epoxy to stainless multiplies the dowel bar budget by 4–5×. On large projects, this is a substantial cost decision that should be justified by environment-specific service life requirements, not specified by default.

For exact project pricing, contact us with your size, quantity, coating preference, and delivery location for a current quotation.

Lifecycle Cost Analysis: When Stainless Pays Off

A simple unit price comparison favors epoxy coated dowel bars overwhelmingly — they are 4–5× cheaper than stainless. But total project lifecycle cost, including future pavement replacement, sometimes favors more expensive coatings.

Consider a coastal highway with heavy chloride exposure (sea spray plus deicing salts):

Scenario A: Epoxy coated dowels

• Lower initial cost

• Service life in coastal environment: ~25 years

• Pavement replacement required at year 25 (and again at year 50)

• Total cost over 75 years: initial + 2 replacements

Scenario B: Stainless steel dowels

• Higher initial cost (4–5× the epoxy unit price)

• Service life in coastal environment: 75+ years

• No premature pavement replacement

• Total cost over 75 years: initial only

On a per-meter basis, the lifecycle cost can be roughly equal — but Scenario B avoids the operational disruption of two pavement replacements over the design life and provides a single, uninterrupted 75-year service life. For high-traffic corridors where replacement means significant traffic disruption, lane closures, and reduced revenue for tolled facilities, Scenario B is often more economically attractive even when its purely material cost is higher.

For projects where:

• Pavement replacement is operationally expensive (heavy traffic disruption, complex sub-base work, revenue loss from closures)

• Chloride exposure is severe (coastal, marine, urban with heavy deicing)

• Design life is mandated at 75+ years (some bridge decks, critical infrastructure)

...the higher initial cost of stainless steel dowel bars is justified. For typical inland highway pavement with normal chloride exposure, epoxy coated bars deliver adequate service life at much lower upfront cost.

Decision Framework: Which Coating for Which Application?

Climate-Specific Recommendations

Sub-Saharan Africa (Tropical to Sub-Tropical)

Standard recommendation: Epoxy coated

Most countries in this region — Nigeria, Kenya, Ghana, Ivory Coast, Tanzania, Uganda, Zambia, Mozambique, Senegal — have moderate chloride exposure (no deicing salts, limited coastal exposure for inland highways). Epoxy coated provides excellent service life at standard cost.

Coastal exception: Highways within 5km of the coast in Lagos, Mombasa, Dar es Salaam, Maputo, etc. should use stainless steel for sections with regular sea spray exposure.

Middle East (Hot Desert Climate)

Standard recommendation: Epoxy coated, with galvanized as alternative

UAE, Saudi Arabia, Qatar, Oman, Kuwait, Iraq, Jordan — hot, dry climates with limited chloride exposure for inland highways. Epoxy coated is the standard. Hot-dip galvanized is sometimes preferred for local market reasons (familiar specification, supply chain).

Coastal exception: Highways in Dubai, Abu Dhabi, Jeddah, Doha along coastal routes with salt spray should use stainless steel 316.

North Africa

Standard recommendation: Epoxy coated

Egypt, Morocco, Tunisia, Algeria, Libya — similar to Middle East. Epoxy is standard. Coastal sections in Alexandria, Casablanca, Tunis, Algiers should consider stainless.

Central Asia (Continental Climate with Cold Winters)

Standard recommendation: Epoxy coated

Kazakhstan, Uzbekistan, Azerbaijan, Turkmenistan — cold winters with heavy deicing salt use create chloride-rich environments. Epoxy coated dowels are the standard specification, similar to other cold-climate markets globally.

South Asia (Tropical Monsoon)

Standard recommendation: Epoxy coated

India, Pakistan, Bangladesh, Sri Lanka — tropical with monsoon rainfall. Limited chloride exposure outside coastal zones. Epoxy is standard. Indian Standard IS 6509 typically references epoxy-coated dowel bars.

Bond Breaker Considerations Across Coating Types

Regardless of coating type, dowel bars must allow the joint to open and close — which means a bond breaker must be applied to one half of the bar. The bond breaker prevents the concrete from gripping that side of the bar.

For epoxy and galvanized dowels: Bond breaker is typically applied as a thin grease coating or a specific bond-breaker compound by the contractor on site, after basket installation but before paving. Some suppliers offer pre-applied bond breaker as an option.

For stainless steel dowels: Bond breaker still required — the stainless surface, while corrosion-resistant, would still bond to concrete through mechanical adhesion. Apply bond breaker the same as for coated dowels.

For FRP dowels: Bond breaker still required — although FRP bars have a lower bond strength to concrete than steel, they would still develop sufficient bond to lock the joint without a bond breaker.

The bond breaker requirement is independent of the corrosion protection system. All four coating types need bond breaker on one half of the bar.

Quality Assurance: What Documentation to Require

Each coating type has specific testing and certification requirements:

Epoxy Coated (ASTM A1078)

• Coating thickness measurements: 8–12 mil per ASTM G12

• Holiday testing per ASTM G62 (max 3 holidays per meter)

• Coating adhesion test

• Cut end coating repair certification

• Mill test certificate for base steel (ASTM A615 Grade 60)

Hot-Dip Galvanized (ASTM A1094)

• Coating mass per unit area (galvanizing weight)

• Coating thickness measurements

• Visual inspection for uniformity

• Mill test certificate for base steel

Stainless Steel (ASTM A955)

• Mill test certificate showing actual chemistry (verify Cr, Ni, Mo content)

• PMI (Positive Material Identification) testing — confirms the bar is actually the specified grade

• Mechanical property test results

• Heat number traceability

FRP / GFRP (ASTM D7957)

• Manufacturing certification

• Tensile strength and modulus test results

• Glass fiber content verification

• Quality control documentation per ASTM D7957 Annex A

For all four types, EN 10204 Type 3.1 quality certification is the international standard for material documentation.

Common Mistakes in Coating Selection

After 15+ years supplying dowel bars to highway and pavement projects, these are the coating-related procurement errors we see most often:

Mistake 1: Specifying galvanized in heavy chloride environments The buyer assumes "galvanized = corrosion proof" and uses galvanized dowels in coastal or heavy-deicing-salt environments. The zinc is consumed within 15 years, and the underlying steel begins to corrode. Premature pavement failure follows.

Prevention: Match coating to environment. Galvanized for hot/dry inland climates, epoxy for chloride-exposed environments, stainless for severe marine.

Mistake 2: Specifying stainless when epoxy would have lasted The buyer specifies stainless for a standard inland highway, paying 4–5× more for service life that exceeds the pavement's design life by decades. The extra investment is wasted.

Prevention: Don't over-specify. For 50-year highway pavements in moderate climates, epoxy provides adequate service life at much lower cost.

Mistake 3: Using uncoated bars for "temporary" or low-traffic applications Cost-cutting on coating "just for this one project" or "since traffic is light" — but the pavement still has the same design life requirement. Uncoated bars corrode within 5–10 years regardless of traffic volume.

Prevention: Always specify coated dowel bars (minimum epoxy) for any pavement intended for 25+ year service life.

Mistake 4: Specifying inadequate stainless grade for coastal exposure Specifying 304 stainless for coastal or marine environments where 316 or 316LN is required. 304 grade pits in chloride environments — the same kind of failure as carbon steel, just slower.

Prevention: For marine and coastal exposure, specify minimum 316L stainless. For severe chloride (direct seawater contact), specify 316LN or duplex 2205.

Mistake 5: Over-spec FRP for non-EM-sensitive applications Specifying FRP for projects that don't require electromagnetic transparency, paying 2.5–3× the epoxy cost without practical benefit. The corrosion resistance of FRP is excellent, but stainless steel provides the same corrosion immunity for similar cost in many markets.

Prevention: FRP is justified specifically for electromagnetic sensitivity (tolling, AGV areas). For pure corrosion protection in marine environments, compare FRP to stainless on a project-specific basis.

Supply from Kasko Makine

Kasko Makine supplies all four major dowel bar coating types for highway, airport, container terminal, and industrial concrete pavement projects:

Fusion-bonded epoxy coated: ASTM A1078 / ASTM A615 Grade 60 base. Standard sizes 25–40mm diameter, 350–500mm length. Coating thickness 8–12 mil with full holiday testing per ASTM G62. The most commonly ordered specification.

Hot-dip galvanized: ASTM A1094 / ASTM A615 Grade 60 base. Standard sizes 25–40mm diameter. Suited for hot/dry climate projects.

Stainless steel: ASTM A955 in 304, 316, 316LN, and 2205 duplex grades. For coastal, marine, and long-design-life applications.

FRP / GFRP: ASTM D7957 fiber-reinforced polymer. For electromagnetic-sensitive applications and special environments.

All four types ship with full documentation:

• EN 10204 Type 3.1 mill test certificates

• Coating certifications per relevant ASTM standard

• Holiday testing reports (epoxy) / coating thickness reports (galvanized)

• PMI testing (stainless)

• Mechanical property test results (FRP)

• Dimensional verification reports

• Third-party inspection (Bureau Veritas, SGS, TÜV) available on request

Need help choosing the right coating? Send us your project details — climate (cold/temperate/tropical/desert), chloride exposure (deicing salts / coastal / inland), required design life, and any special requirements (electromagnetic transparency, marine exposure, critical infrastructure) — to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. Our technical team will recommend the most cost-effective coating for your specific project requirements. We respond within 24 hours and deliver to projects across Africa, the Middle East, Central Asia, and beyond.
