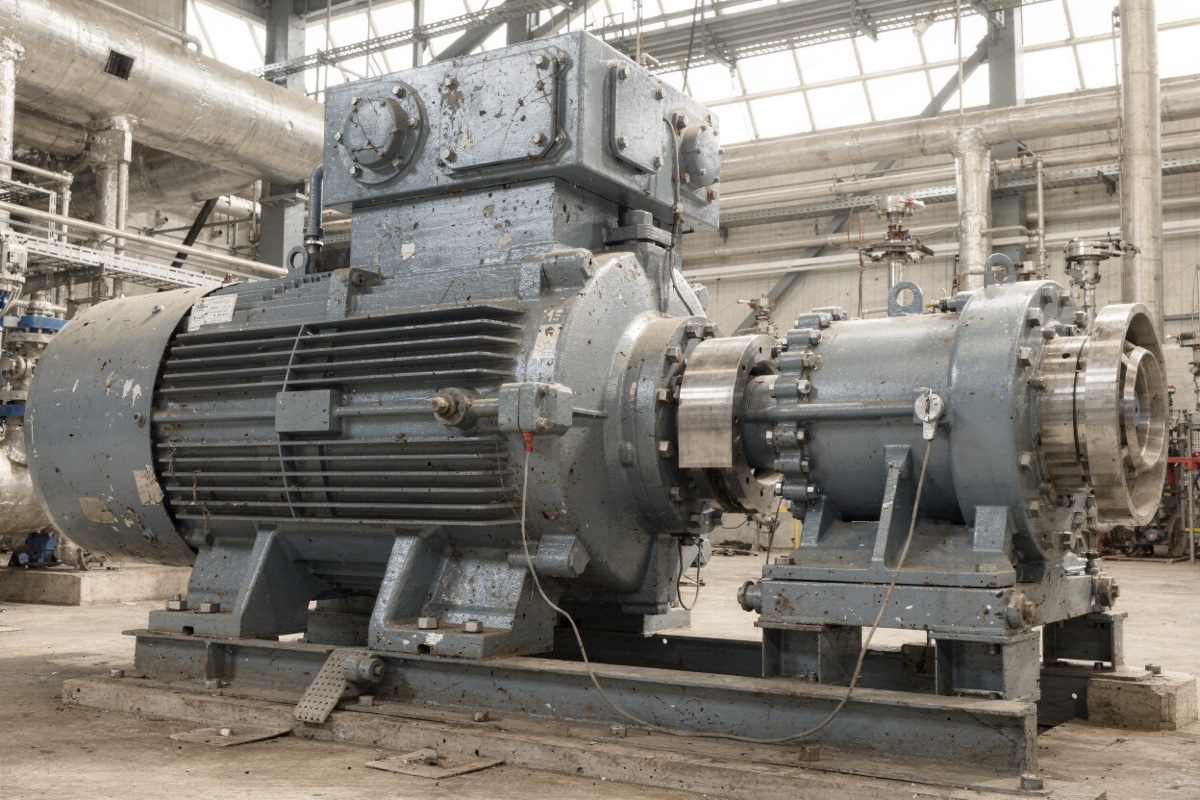

Industrial Electric Motors: IE Efficiency Classes, Enclosures and Hazardous-Area Selection

Quick Answer

An industrial electric motor is specified by five decisions, and getting any of them wrong costs more than the motor. Efficiency class under IEC 60034-30-1 runs IE1 (standard) through IE5 (ultra-premium); IE3 is the legal minimum in the EU for most motors from 0.75 kW to 1,000 kW, with IE4 mandated for 75-200 kW motors since July 2023. Enclosure is IP-rated under IEC 60529 — IP55 is the industrial default, IP56 for washdown, IP66 for severe outdoor and marine. Insulation class sets the permissible winding temperature: Class F insulation (155°C) with Class B temperature rise (80 K) is standard practice, leaving a thermal reserve that roughly doubles winding life. Hazardous area motors carry Ex ratings — Ex d (flameproof) for Zone 1, Ex e (increased safety) for Zone 1, Ex ec or Ex nA for Zone 2. Mounting and frame follow IEC 60072 frame sizes with IM B3 (foot), IM B5 (flange) and IM V1 (vertical flange) designations. A 110 kW motor running continuously at 0.90 efficiency versus 0.955 wastes roughly 46,000 kWh a year — in most markets, more than the price difference inside the first eighteen months.

A cement plant in East Africa bought thirty-two motors for a new raw mill circuit on price. They were IE2, which was legal where they bought them and cheaper by about 12% a unit. The purchase saved roughly 19,000 USD.

The plant runs 7,800 hours a year. The connected load across those thirty-two motors was 1,340 kW. The efficiency gap between what they bought and the IE3 equivalents was between 1.4 and 2.6 percentage points depending on frame size, averaging about 1.9. At their tariff, that gap cost them a little over 31,000 USD a year.

The 19,000 USD saving was repaid in seven months and has been paying interest ever since, in the wrong direction, for six years.

This is the thing about electric motors: the purchase price is almost irrelevant. Over a ten-year life, energy is typically 95-97% of the total cost of ownership and the motor itself is 2-3%. Buying a motor on purchase price is like buying a car and only considering the registration fee.

How an Induction Motor Works, Briefly

Three-phase AC in the stator windings creates a magnetic field that rotates at synchronous speed — 1,500 rpm for a 4-pole motor on 50 Hz, 1,800 rpm on 60 Hz. The rotor, a cage of conductors in a laminated iron core, sits inside that field. Because the field moves relative to the rotor, it induces currents in the rotor bars; those currents create their own field; the two fields interact and the rotor is dragged around after the stator field.

The rotor can never quite catch up — if it did, there would be no relative motion, no induced current and no torque. The difference is slip, typically 1-3% at full load. A 4-pole 50 Hz motor has a synchronous speed of 1,500 rpm and a nameplate speed around 1,460-1,480 rpm.

Synchronous speed is set by pole count and frequency:

This matters when a motor built for 50 Hz is installed on a 60 Hz supply or vice versa. Run a 50 Hz motor on 60 Hz at the same voltage and the flux drops, torque falls by about 30%, but speed rises 20% — which, on a centrifugal pump or fan, raises the absorbed power by roughly 1.2³ = 1.73. The motor overloads. This is a recurring and expensive mistake in equipment shipped between 50 Hz and 60 Hz regions.

IE Efficiency Classes

IEC 60034-30-1 defines efficiency classes for line-operated AC motors. The classes are absolute efficiency levels that vary by rating and pole count, not fixed percentages.

Indicative full-load efficiencies for a 4-pole 50 Hz motor:

The gaps look small. They are not. A 110 kW motor at 94.3% versus 96.1% draws 116.6 kW versus 114.5 kW — about 2.1 kW more. At 8,000 hours that is 16,800 kWh a year, which at 0.10 USD/kWh is 1,680 USD a year, against a price premium of perhaps 1,200-1,800 USD. Payback inside a year, every year for twenty years.

IE5 and the move away from induction motors

IE5 efficiency generally cannot be reached with a conventional cage induction motor, because rotor losses set a floor. IE5 motors are usually:

• Permanent magnet synchronous motors (PMSM) — rare-earth magnets in the rotor, no rotor current, no rotor loss. Highest efficiency and highest power density. Needs a drive; cannot start across the line. Magnet price is volatile and demagnetisation at high temperature is a real limit.
• Synchronous reluctance motors (SynRM) — a shaped rotor with no magnets and no windings. Nearly PM efficiency without magnets, cheap rotor, robust. Also requires a drive. Lower power factor than PM.

Both need a variable frequency drive. If your application already has a VFD — and most pump and fan applications should — the step to IE5 costs less than people expect and the energy case is strong.

Regional regulation differs

• EU: Regulation (EU) 2019/1781 — IE3 minimum for 0.75-1,000 kW, IE4 for 75-200 kW since July 2023, plus IE2 minimum for single-phase motors above 0.12 kW.
• United States: DOE energy conservation standards, with NEMA Premium broadly aligned to IE3.
• China: GB 18613, with grades mapped to IE classes.
• Gulf, Africa, Central Asia: varied. Many markets have no mandatory minimum, which is exactly why motors below IE3 still get sold into them — and why buyers there can quietly pay for the difference in energy for twenty years.

If you are specifying for a plant in an unregulated market, specify IE3 as your own minimum. The economics do not care what the local regulation says.

Enclosures: IP and NEMA

IP ratings (IEC 60529) are two digits: first digit for solid-object and dust ingress, second for water.

NEMA enclosures cover the same ground differently:

• ODP (Open Drip Proof) — ventilated, indoor clean only
• TEFC (Totally Enclosed Fan Cooled) — the industrial workhorse, roughly IP55
• TEBC (Totally Enclosed Blower Cooled) — separately driven cooling fan, for VFD duty at low speed where the shaft fan would not move enough air
• TENV (Totally Enclosed Non-Ventilated) — no fan, small ratings only
• TEAO (Totally Enclosed Air Over) — cooled by the airstream of the driven fan

Cooling method (IC codes, IEC 60034-6)

• IC411 — frame-surface cooled with shaft-mounted fan: standard TEFC
• IC416 — frame-surface cooled with an independently driven fan: for VFD low-speed operation
• IC611 / IC616 — air-to-air heat exchanger: large machines
• IC81W / IC86W — air-to-water heat exchanger: large machines, confined or hot spaces

The critical one for VFD applications is IC416. A standard TEFC motor running at 25 Hz turns its cooling fan at half speed, and fan airflow falls roughly with speed while losses do not. Motors overheat at low speed on VFDs more often than any other VFD-related failure.

Insulation Classes and Temperature Rise

Insulation class sets the maximum winding temperature the insulation system can tolerate continuously.

Modern industrial motors use Class F insulation. The important specification is not the class alone, but the class combined with the actual temperature rise.

Class F insulation with Class B rise is the standard good practice: the insulation is rated to 155°C but the design limits rise to 80 K, giving a 25 K thermal reserve. Insulation life follows roughly the 10-degree rule — every 10 K reduction in operating temperature approximately doubles insulation life. A 25 K reserve therefore multiplies expected winding life several times over, and gives headroom for high ambient temperature, voltage unbalance, harmonic heating from a VFD, or occasional overload.

Specify "Class F insulation, Class B temperature rise." Four words that materially change motor life expectancy, and that most datasheets omit.

For high-ambient installations — Gulf summer, inside enclosures, near furnaces — note that standard ratings assume 40°C ambient and 1,000 m altitude. Above these, the motor must be derated:

These multiply. A motor in Riyadh in summer inside a switchroom at 50°C needs roughly 11% more nameplate rating than the shaft load. A motor at 2,500 m in Central Asia at 45°C needs about 14% more. Skipping this step is a common cause of motors that run hot and fail in their second summer.

Duty Types (IEC 60034-1)

• S1 — Continuous duty. Runs long enough to reach thermal equilibrium. Most process motors.
• S2 — Short-time duty. Runs for a specified time then cools fully. Valve actuators, hoists.
• S3 — Intermittent periodic duty. Cyclic load with rest, no starting-current influence. Stated as a cyclic duration factor, e.g. S3 40%.
• S4 — Intermittent with starting. Starting current significantly affects heating. Many starts per hour.
• S5 — Intermittent with electric braking.
• S6 — Continuous operation with intermittent load.
• S7 — Continuous with starting and braking.
• S8 — Continuous with speed changes.
• S9 — Non-periodic load and speed variation.
• S10 — Discrete constant loads.

Starting frequency drives motor heating far more than people expect. Starting current is typically 6-8× full-load current, and the rotor absorbs that energy as heat. A motor rated for 6 starts per hour that is started 20 times per hour will cook its rotor, whatever its insulation class. If the duty involves frequent starting, state the number of starts per hour on the enquiry.

Hazardous Area Motors

In any area where flammable gas, vapour or combustible dust can be present, the motor must be certified for that area. Specifying this wrongly is a safety failure, not a commercial one.

Zone classification (IEC 60079-10)

Gases and vapours:

• Zone 0 — explosive atmosphere present continuously or for long periods. Motors are essentially never installed here.
• Zone 1 — likely to occur in normal operation.
• Zone 2 — not likely in normal operation, and if it occurs, only briefly.

Dusts:

• Zone 20, 21, 22 — the dust equivalents.

Protection concepts

Gas group and temperature class

Also required on the enquiry:

Gas group — IIA (propane), IIB (ethylene), IIC (hydrogen, acetylene). IIC is the most demanding. A IIB-certified motor in a hydrogen area is not acceptable.

Temperature class — the maximum surface temperature:

• T1: 450°C · T2: 300°C · T3: 200°C · T4: 135°C · T5: 100°C · T6: 85°C

T4 is the common industrial requirement. T3 motors are cheaper and entirely inadequate where the gas has a low ignition temperature.

A complete marking reads, for example: Ex db IIB T4 Gb — flameproof, gas group IIB, surface temperature below 135°C, equipment protection level Gb (suitable for Zone 1).

Ex d versus Ex e in practice

Ex d (flameproof) motors are heavier, with thick cast enclosures and precisely machined flame paths. They are repairable only by certified workshops, because machining tolerances on flame paths are part of the certification. They tolerate the full range of normal operating conditions.

Ex e (increased safety) motors are lighter and cheaper, but their certification depends on the motor never reaching a dangerous temperature — which means the t_E time (the time from locked-rotor condition to reaching limiting temperature) must be respected by the protective device. The overload relay is part of the certification. An Ex e motor with a mis-set overload relay is not a protected motor.

A practical note that gets missed: Ex e motors are generally not suitable for VFD operation unless specifically certified for it, because harmonic heating and low-speed cooling break the thermal assumptions behind the certification. VFD-fed hazardous-area motors usually need Ex d, or Ex e with a certified drive-and-motor combination and often a PTC thermistor trip.

VFD Duty — What Changes

Running a motor from a variable frequency drive changes the electrical and thermal environment significantly.

Harmonic heating. The PWM waveform is not a sine wave. Additional losses of 10-20% over sine-wave operation are typical, raising winding temperature.

Reduced cooling at low speed. A shaft-mounted fan at 50% speed moves far less air. Constant-torque applications at low speed therefore need forced ventilation — IC416 — or significant derating.

Insulation stress from dv/dt. Fast IGBT switching produces steep voltage rise times. Combined with cable-length reflections, peak voltages at the motor terminals can reach twice the DC bus voltage. On 400 V systems this is survivable with standard insulation; on 690 V systems it is not. Specify inverter-duty insulation (reinforced, with corona-resistant enamel) for 690 V VFD applications and for long cable runs. IEC 60034-25 and NEMA MG1 Part 31 cover the requirements.

Bearing currents. Common-mode voltage drives current through the bearings, producing electrical discharge machining of the races — frosting, fluting, early failure. Above roughly 100 kW, or wherever a VFD feeds a motor through long cables, specify an insulated non-drive-end bearing, a shaft grounding ring, or both. A fluted bearing at 18 months is almost always a bearing-current problem, not a lubrication problem.

Shaft voltage and grounding. Ensure a proper low-impedance ground path and symmetrical shielded motor cable with the shield bonded at both ends.

Mounting and Frame Designation

IEC 60072 defines frame sizes by shaft height in millimetres: frame 132 has a 132 mm shaft centreline height. Standard frames run 56, 63, 71, 80, 90, 100, 112, 132, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450.

Mounting designations under IEC 60034-7:

Vertical mounting needs attention to bearing arrangement — the thrust bearing must carry the rotor weight plus any axial load — and to drainage. A vertical shaft-up motor needs a drip cover, or water will run straight down the shaft into the bearing.

Protection and Monitoring

Minimum protection for an industrial motor:

• Thermal overload relay or electronic motor protection relay, set to nameplate full-load current
• Short-circuit protection — fuses or circuit breaker, coordinated with the overload device
• Phase-failure and unbalance protection — a 3% voltage unbalance produces roughly 18% current unbalance and significant extra heating; single-phasing destroys a loaded motor in minutes

Worth specifying on motors above about 55 kW, and on all critical motors:

• PTC thermistors or RTDs in the windings — three PTCs for trip, or Pt100 RTDs for continuous monitoring. The only direct measurement of what matters.
• Bearing RTDs on large machines
• Anti-condensation heaters — essential for outdoor and humid installations, and for standby motors. A standby pump motor in a humid climate with no space heater will absorb moisture into the windings and fail its insulation test when needed.
• Vibration monitoring provision — flat machined pads at the bearing housings for accelerometer mounting

Common Specification Mistakes

1. Buying on purchase price when energy is 95% of lifetime cost. The cement-plant example above: 19,000 USD saved, 31,000 USD a year lost.

   Prevention: Calculate ten-year energy cost at the actual tariff and running hours before comparing quotes. Specify IE3 minimum regardless of local regulation.

2. No ambient and altitude derating. Nameplate ratings assume 40°C and 1,000 m. Plants in the Gulf, in Central Asian highlands, or inside hot switchrooms routinely exceed both.

   Prevention: State site ambient and altitude on every enquiry and apply the derating factors multiplicatively.

3. Standard TEFC motor on a VFD at low speed. The shaft fan cannot cool the motor at 20 Hz, and the motor cooks.

   Prevention: For constant-torque duty below about 50% speed, specify IC416 forced ventilation or derate the motor. For variable-torque duty (pumps, fans) standard cooling is usually acceptable down to 30-40% speed.

4. Omitting "Class B temperature rise" when specifying Class F insulation. You get a motor that uses its full thermal capability with no reserve, and winding life is a fraction of what it could be.

   Prevention: Specify "Class F insulation with Class B temperature rise" on every enquiry.

5. Wrong Ex marking for the gas group or temperature class present. A IIB T3 motor installed in a IIC T4 area is not a near-miss, it is an ignition source.

   Prevention: Obtain the area classification drawing with zone, gas group and temperature class before enquiring, and require the certificate number on the certified documentation.

6. Ex e motor on a VFD without a certified combination. The increased-safety certification assumes sine-wave supply and nameplate cooling.

   Prevention: For VFD-fed hazardous-area duty, use Ex d, or require vendor confirmation of a certified motor-and-drive combination with winding thermistor protection.

7. No insulated bearing or shaft grounding on large VFD-fed motors. Fluting failure at 12-24 months, repeatedly, usually blamed on lubrication.

   Prevention: Specify an insulated non-drive-end bearing or shaft grounding ring for VFD-fed motors above about 100 kW and wherever cable runs are long.

8. 50 Hz motor installed on 60 Hz supply (or the reverse) without checking the driven load. Speed rises 20%, and a centrifugal load's power demand rises about 73%.

   Prevention: State supply frequency and voltage on the enquiry, and recalculate absorbed power for the actual speed.

9. No space heater on outdoor or standby motors in humid climates. Insulation resistance collapses, and the motor fails its first megger test after a monsoon.

   Prevention: Specify anti-condensation heaters with a separate supply for all outdoor and all standby motors in humid locations.

10. Ignoring starts per hour. Frequent starting heats the rotor severely, and nothing on a standard nameplate warns about it.

    Prevention: State required starts per hour and duty type (S1, S4, etc.) and let the vendor confirm thermal adequacy.

Supply from Kasko Makine

Kasko Demir Çelik Makine supplies electric motors as part of complete rotating-equipment packages:

Motors

• Three-phase squirrel cage induction motors, 0.37 kW to 1,000 kW
• Efficiency classes IE2, IE3, IE4, and IE5 permanent-magnet and synchronous reluctance machines
• Frame sizes 71 to 450, aluminium and cast iron construction
• 2, 4, 6 and 8 pole, 50 Hz and 60 Hz
• Voltages 230/400 V, 400/690 V, 3.3 kV, 6.6 kV, 11 kV
• Enclosures IP55 standard, IP56, IP65, IP66 available
• Class F insulation with Class B temperature rise as standard
• Mountings IM B3, B5, B14, B35, V1, V3, V5
• Inverter-duty motors to IEC 60034-25 with reinforced insulation and insulated bearings

Hazardous area motors

• Ex db, Ex eb, Ex db eb, Ex ec for Zones 1 and 2
• Ex tb and Ex tc for dust Zones 21 and 22
• Gas groups IIA, IIB, IIC
• Temperature classes T3, T4, T5, T6
• ATEX and IECEx certification with certificate documentation

Options and accessories

• PTC thermistors and Pt100 RTDs in windings and bearings
• Anti-condensation space heaters
• Forced ventilation (IC416) for VFD low-speed duty
• Insulated bearings and shaft grounding rings
• Encoder and tacho mounting provision
• Marine and offshore certification

Associated supply

• Variable frequency drives and soft starters
• Gearboxes, couplings and belt drives
• Pumps, fans and blowers as complete driven packages
• Baseplates, guards and motor cabling accessories

Engineering support

Send the driven-equipment data — kW absorbed, speed, duty type, starts per hour, site ambient and altitude, supply voltage and frequency, area classification — and we will return a motor selection with efficiency class comparison and a ten-year energy cost calculation, so the purchase decision is made on total cost rather than list price.

Certification

Routine test certificates to IEC 60034-1 as standard. Type test certificates, full load tests, temperature rise tests, no-load and locked-rotor curves, and witnessed testing available on request. ATEX/IECEx certificates for hazardous-area machines. Material certificates for shafts and frames where specified.

Logistics

Standard IE3 motors to frame 315 generally ship in 2-4 weeks. Larger machines, hazardous-area motors and HV motors typically 8-16 weeks depending on rating and certification. Shipping from Istanbul by road to Europe and the Caucasus, by sea to Gulf, African and Asian destinations, and by air for urgent small-frame replacements.

Send your motor list with kW, speed, voltage, duty and area classification and we will return selections and pricing within three working days. Reach us at info@kaskomakine.com or WhatsApp +90 (537) 521 1399.

Continue Reading: Rotating Equipment Series

• Mechanical Seals: API 682 Types and Piping Plans
• Industrial Pumps: Complete Guide
• Industrial Gearboxes and Couplings
• Centrifugal Pumps: Types, Curves and Selection

Frequently Asked Questions

Q: What is the difference between IE3 and IE4 motors?
A: IE3 is Premium Efficiency and IE4 is Super Premium Efficiency under IEC 60034-30-1. For a 4-pole 110 kW motor, IE3 is about 95.4% efficient and IE4 about 96.1%. IE3 is the EU minimum for most motors from 0.75 to 1,000 kW, while IE4 has been mandatory for 75-200 kW motors since July 2023. The efficiency difference typically pays back the price premium within one to two years at continuous operation.

Q: What does Ex d IIB T4 mean on a motor nameplate?
A: Ex d means flameproof protection, where the enclosure contains any internal explosion and cools escaping gases below ignition temperature. IIB is the gas group, covering gases such as ethylene but not hydrogen, which needs IIC. T4 means the maximum surface temperature stays below 135°C. Together they certify the motor for a Zone 1 area with those specific gas characteristics.

Q: Can a standard motor be used with a variable frequency drive?
A: A standard IE3 motor on a 400 V VFD driving a pump or fan is usually acceptable, since variable-torque loads reduce power sharply with speed. Problems arise with constant-torque duty at low speed, where shaft-fan cooling fails and forced ventilation is needed, and on 690 V systems or long cable runs, where inverter-duty reinforced insulation is required. Motors above about 100 kW on VFDs should also have an insulated bearing or shaft grounding ring.

Q: What does Class F insulation with Class B temperature rise mean?
A: Class F insulation withstands winding temperatures to 155°C, while Class B temperature rise limits the design rise to 80 K above a 40°C ambient. Specifying both together leaves a 25 K thermal reserve. Since insulation life roughly doubles for every 10 K reduction in operating temperature, that reserve substantially extends winding life and provides headroom for high ambient temperature, voltage unbalance and VFD harmonic heating.

Q: How much should a motor be derated for high ambient temperature?
A: Standard ratings assume 40°C ambient and 1,000 m altitude. Multiply by about 0.95 at 45°C, 0.90 at 50°C, 0.85 at 55°C and 0.80 at 60°C. Altitude factors are roughly 0.93 at 2,000 m, 0.86 at 3,000 m and 0.79 at 4,000 m, and the two factors multiply. A motor in a 50°C switchroom at 2,000 m needs roughly 20% more nameplate rating than the shaft load.

Q: What happens if a 50 Hz motor is run on a 60 Hz supply?
A: At the same voltage, magnetic flux falls, available torque drops by around 30%, and speed rises by 20%. On a centrifugal pump or fan, absorbed power rises with the cube of speed — roughly 73% higher — so the motor is severely overloaded. Either specify a dual-frequency motor, change the voltage in proportion to frequency, or recalculate the driven load at the new speed.

Q: Why do motor bearings fail early on variable frequency drives?
A: Common-mode voltage from the drive forces current through the bearings, and the resulting micro-discharges erode the races, producing frosting and fluting that leads to failure in 12 to 24 months. The fix is to interrupt the current path with an insulated non-drive-end bearing, a shaft grounding ring, or both, plus symmetrical shielded motor cable properly bonded at both ends.
