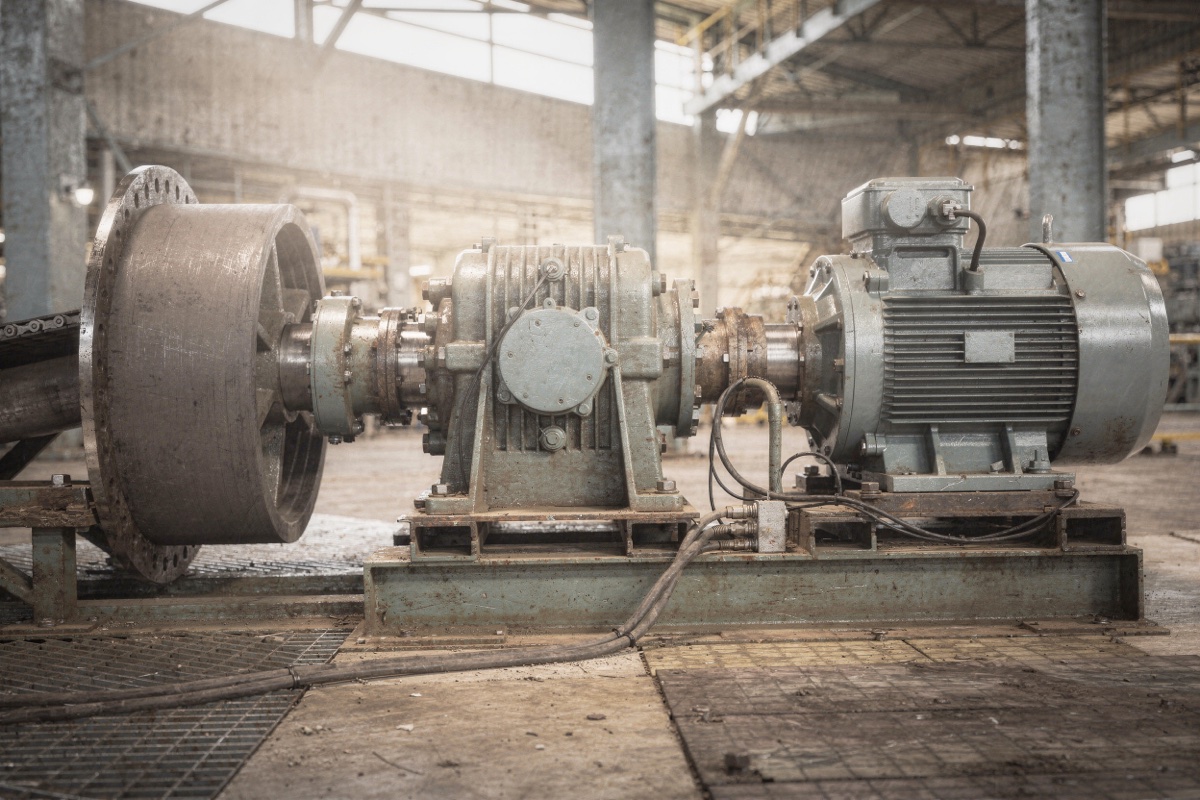

Industrial Gearboxes and Couplings: Service Factor, AGMA Ratings and Alignment

Quick Answer

A gearbox is selected on three numbers, not one. The mechanical rating is the torque the gear teeth and bearings can carry. The thermal rating is the power the gearbox can dissipate as heat without the oil overheating — and in continuous-duty applications with high ratios, the thermal rating is frequently the limiting factor, not the mechanical one. The service factor multiplies the absorbed power to account for load character and running hours: AGMA practice uses 1.0 for uniform load under 10 hours a day, 1.25-1.5 for moderate shock in continuous service, and 1.75-2.0 for heavy shock, with crushers and reciprocating compressors at the top end. Gearbox efficiency varies sharply by type: helical and bevel-helical units reach 96-98% per stage, planetary units 97-98%, while worm gearboxes fall to 50-90% depending on ratio — a 60:1 worm unit may be only 65% efficient, which is both an energy cost and a heat problem. Couplings transmit torque while accommodating misalignment: grid and elastomeric couplings damp shock, gear couplings carry the highest torque density, and disc (membrane) couplings need no lubrication and are the API 610 standard for pumps. Even the most forgiving coupling is not an alignment substitute — most couplings should be installed to within 0.05 mm offset and 0.05 mm/100 mm angular.

A sugar mill in West Africa replaced the same bevel-helical gearbox on a cane carrier three times in two years. Each failure was the same: pitting and spalling on the output gear flank, then tooth breakage.

The gearbox was rated 75 kW mechanical. The motor was 55 kW. On paper there was 36% margin, and everybody who looked at the problem concluded the gearbox was poor quality.

The gearbox was fine. The cane carrier ran 24 hours a day during crushing season, and it stalled and restarted under load several times a shift when the cane bed jammed. That is heavy shock loading, continuous duty. The correct AGMA service factor for that duty is 1.75 to 2.0. Applied to 55 kW, the required gearbox mechanical rating was 96 to 110 kW — not 75.

They installed a 132 kW unit. It has run five seasons.

Service factor is not a safety margin that cautious engineers add and confident engineers skip. It is the mechanism by which a catalogue rating — measured under smooth, uniform, laboratory load — is translated into the real world where loads reverse, jam, start and stop.

Gearbox Types

Helical and bevel-helical (parallel shaft and right-angle)

Helical gears have teeth cut at an angle to the shaft axis, so contact begins at one tooth end and progresses across the face. That gradual engagement makes them quiet and smooth compared with spur gears, and allows higher loads.

• Efficiency: 96-98% per stage
• Ratios: about 1.25:1 to 8:1 per stage; multi-stage units to 300:1 and beyond
• Shaft arrangement: parallel (helical) or right-angle (bevel-helical, using a spiral bevel first or last stage)
• Thrust: helical gears generate axial thrust proportional to the helix angle, which the bearings must carry. Double-helical (herringbone) gears cancel it.
• Use: general industrial — conveyors, mixers, extruders, pumps, mills, fans

This is the default industrial gearbox. If no special requirement pushes you elsewhere, this is the answer.

Worm

A worm (screw) drives a bronze worm wheel. The sliding contact gives very high single-stage ratios and quiet operation, and most worm sets are self-locking above about 40:1, which holds load without a brake.

• Efficiency: 50-90%, falling sharply as ratio rises. A 10:1 worm may be 90%; a 60:1 worm may be 65%; a 100:1 worm may be below 55%.
• Ratios: 5:1 to 100:1 in a single stage
• Use: low-power applications where high ratio, compactness and self-locking matter more than efficiency — small conveyors, gates, hoists, agitators, valve actuators

The efficiency penalty is severe and often overlooked. A 7.5 kW worm drive at 65% efficiency wastes 2.6 kW continuously — as heat, inside the gearbox. That heat is why worm units need large housings, cooling fins, and sometimes fan cooling, and why their thermal rating is so often the binding constraint.

Specify worm gearboxes where the self-locking or the high single-stage ratio is genuinely needed. For continuous-duty power transmission above a few kW, helical or bevel-helical is almost always cheaper to own.

Planetary (epicyclic)

A central sun gear, planet gears on a carrier, and an outer ring gear. Load is shared between several planets simultaneously, so torque density is extremely high for the volume, and the input and output shafts are coaxial.

• Efficiency: 97-98% per stage
• Ratios: 3:1 to 10:1 per stage; multi-stage to 1,000:1+
• Use: high torque in a small space — winches, slew drives, mixers, kiln drives, mobile equipment, wind turbines

Planetary units cost more per kW than helical units but occupy far less space and weigh much less for the same torque. They also have higher radial-load capacity on the output because the load is carried symmetrically.

Shaft-mounted and helical-bevel reducers for conveyors

Shaft-mounted reducers fit directly onto the driven shaft, removing the need for a separate output coupling and baseplate. Mounted with a torque arm. Standard for belt conveyors in bulk handling and quarrying.

Gearmotors

An integrated motor and gearbox as a single unit. Compact, no coupling or alignment required, lower cost than separate components. Harder to replace one half of, and the motor options are limited to what the manufacturer offers. Standard below about 30 kW for conveyors, mixers and general machinery.

The Three Ratings

Mechanical rating

The power or torque the gear teeth, shafts and bearings can transmit, limited by:

• Surface durability (pitting resistance) — contact stress on tooth flanks. Governs most industrial gearbox life.
• Bending strength — tooth root stress. Governs shock-load failures and tooth breakage.
• Bearing life — L10 life under the actual radial, axial and combined loads.

AGMA 2001 and ISO 6336 are the calculation standards. Vendor catalogues present the result as a rated power at a given input speed.

Thermal rating

The power the gearbox can dissipate continuously without the oil exceeding its temperature limit — typically 85-95°C for mineral oil, higher for synthetic.

This is where selections go wrong. Catalogue thermal ratings assume conditions: typically 25°C ambient, free air circulation, and often only partial duty. In a real installation at 45°C ambient, inside a guard, in still air, with no cooling, the thermal rating can be half the catalogue figure.

If the thermal rating is below the mechanical rating, the thermal rating is your real limit. Signs of a thermally limited gearbox are oil temperature above 95°C, oil darkening and smelling burnt within months, seal leakage from thermally hardened lip seals, and bearing failures from loss of oil film viscosity.

Remedies, in order of cost:

1. Larger gearbox — more surface area, more oil volume
2. Fan cooling — a shaft-mounted fan on the input, typically +25-40% thermal rating
3. Cooling coil in the sump with water circulation
4. External oil cooler with a pump — needed on large and high-ratio units

In hot climates, always ask for the thermal rating at site ambient, not the catalogue figure. This single question prevents a large share of gearbox problems in the Gulf, North Africa and South Asia.

Service factor

Service factor (SF) scales the absorbed power to account for load character and operating time:

Required gearbox rating = absorbed power × service factor

AGMA-based practice gives approximately:

Additional multipliers that stack:

• Frequent starts/stops: more than 10 starts per hour, add 0.1-0.25
• Reversing duty: add 0.25
• Electric motor driver: baseline. Multi-cylinder internal combustion: ×1.25. Single-cylinder IC engine: ×1.5
• Critical service with no spare: add margin deliberately

A practical check: use the installed motor power rather than calculated absorbed power as your starting figure where the motor can genuinely deliver it. Motors produce 200-250% of rated torque at breakdown. If a conveyor jams, the motor will apply whatever torque it can until protection trips — and the gearbox sees all of it. Specifying the gearbox against motor rating plus the appropriate service factor, rather than against calculated load, costs more and fails less.

Lubrication

Mineral gear oil — ISO VG 150, 220 or 320 for most industrial gearboxes, selected by speed, load and ambient temperature. Cheap, widely available, requires changing every 2,500-5,000 hours.

Synthetic PAO or PAG — 3-5× the drain interval, far better low-temperature flow, and significantly better high-temperature stability. Essential for high-ambient installations and for worm drives where sliding contact and heat are severe. PAG oils give notably better efficiency in worm gearing but are not compatible with mineral oil and attack some paints and seals — flush completely when converting.

EP (extreme pressure) additives — sulphur-phosphorus additives that form a sacrificial film on tooth flanks under high contact stress. Needed for most industrial gearing. Not for worm drives with bronze wheels: EP additives can attack yellow metals at high temperature. Use a compounded oil with a mild EP or a specifically worm-rated product.

Viscosity by ambient temperature:

Breathers. Standard vented breathers let moist air in as the gearbox cools and breathes. In humid or wash-down environments, water accumulates in the oil, and water in gear oil at only 0.1% can reduce bearing life by half. Specify desiccant breathers or expansion-chamber breathers for outdoor and humid installations. This is a 40 USD item that regularly determines whether a gearbox reaches its design life.

Oil level matters more in vertical mountings. A gearbox mounted other than as designed may not lubricate its upper bearings. Always declare mounting position on the enquiry — a gearbox supplied for horizontal mounting and installed vertically will fail at the top bearing.

Couplings

A coupling connects two shafts, transmits torque, and accommodates the misalignment that always exists.

Elastomeric couplings

A rubber or polyurethane element in compression or shear between two hubs.

• Types: tyre, jaw/spider, pin-and-bush, rubber-in-compression
• Misalignment: generous — up to 1° angular, 0.5-1.5 mm parallel depending on type and size
• Torsional stiffness: low, so excellent shock damping and vibration isolation
• Backlash: present in jaw types
• Lubrication: none
• Failure mode: element degrades gradually and visibly — a useful property
• Use: general industrial drives, pumps, fans, small conveyors

The element is a consumable. Elastomers age with heat, oil and ozone, and 3-7 years is a realistic element life. Not suitable above about 80-100°C ambient without specific high-temperature elements.

Grid couplings

A serpentine steel grid spring fitted into slots in two hubs, in a grease-filled cover.

• Misalignment: moderate — about 0.25° angular, 0.3-0.5 mm parallel
• Torsional stiffness: moderate; the grid flexes to absorb shock peaks, typically cutting peak torque by up to 30%
• Lubrication: grease, replace at 12-24 month intervals
• Use: shock-loaded drives, crushers, mills, reciprocating machines

Grid couplings combine high torque capacity with real shock absorption, which elastomeric couplings cannot match at high torque and disc couplings cannot do at all.

Gear couplings

Crowned external gear teeth on each hub mesh with internal teeth in a sleeve.

• Misalignment: up to 1.5° per gear mesh on full-flex designs, but only with proper lubrication
• Torque density: the highest of any coupling for a given diameter
• Lubrication: essential — high-speed grease or oil. Lubrication failure is the dominant failure mode.
• Backlash: present
• Use: high torque in limited space — mill drives, steel plant equipment, large pumps, marine

Gear couplings tolerate serious misalignment on paper, but misalignment plus centrifugal grease separation equals tooth wear and sudden failure. They need a lubrication schedule that is actually followed.

Disc (membrane) couplings

Flexible stainless steel discs or a diaphragm bolted between hubs and a spacer.

• Misalignment: limited — about 0.25-0.5° angular, small parallel offset accommodated by the spacer geometry
• Lubrication: none, ever
• Backlash: zero
• Torsional stiffness: high — no damping
• Balance: excellent at high speed
• Failure mode: discs crack. Failure can be sudden.
• Use: API 610 pumps, API 617 compressors, turbines, high-speed machinery

Disc couplings are the standard for refinery rotating equipment because they are maintenance-free and run true at high speed. The trade-off is that they demand good alignment and they transmit shock straight through.

Fluid couplings

Hydrodynamic power transmission through oil between an impeller and a runner.

• Starting: soft start with no mechanical connection, allowing the motor to accelerate before load is applied
• Overload: acts as a torque limiter, protecting driven equipment
• Slip: 2-4% at full load, which is a continuous energy loss
• Use: high-inertia starting — crushers, mills, long conveyors, large fans

Comparison

Alignment

Couplings accommodate misalignment. They do not make it harmless.

Misalignment produces cyclic bending in the shafts, forces on the bearings and seals, and vibration at twice running speed. Even within a coupling's rated capacity, running at the misalignment limit substantially reduces bearing and seal life.

Practical tolerances

For general industrial machinery below 1,800 rpm, coupled with flexible couplings:

API 610 pumps and critical machinery often specify tighter: 0.05 mm offset as the acceptable limit and 0.025 mm as the target.

Laser alignment, not straightedges

Dial indicators are accurate and slow. Straightedges and feeler gauges are neither. Laser alignment systems reach 0.01 mm resolution, take twenty minutes, and record the result. For any machine above about 30 kW or 1,500 rpm, laser alignment pays for itself in avoided bearing and seal failures.

Things alignment work must account for

Soft foot. If one foot does not sit flat, tightening it distorts the machine frame and the alignment you measured at the coupling is not the alignment you have when running. Check every foot for soft foot before aligning — loosen each bolt in turn and measure movement with an indicator. Over 0.05 mm needs shimming.

Thermal growth. A hot pump or a hot gearbox grows. Hot alignment is not cold alignment. Large or hot machines need cold alignment offsets calculated so the machine aligns at operating temperature. A 300 mm cast iron pedestal rising 60°C grows about 0.2 mm — four times the alignment tolerance.

Pipe strain. Piping bolted to a pump nozzle with a 3 mm mismatch will pull the pump off alignment the moment the flange bolts are tightened. Check alignment before and after connecting piping; if it changes by more than the tolerance, the piping is wrong, not the alignment.

Baseplate and grout condition. Alignment achieved on a baseplate with voids under the grout will not survive. Hollow-sounding grout and rust staining at the base edges are the signs.

Common Specification Mistakes

1. Selecting the gearbox on absorbed power with no service factor. The sugar mill example: 55 kW load, 75 kW gearbox, three failures. Heavy shock continuous duty needed 1.75-2.0.

   Prevention: Apply the AGMA service factor table against the load character and hours, and consider specifying against motor rating for jam-prone equipment.

2. Ignoring the thermal rating at site ambient. A gearbox thermally rated 90 kW at 25°C in free air may be limited to 50 kW at 45°C inside a guard.

   Prevention: Require the vendor to state thermal rating at actual site ambient and installation condition, and specify fan or oil cooling where the thermal rating falls below the service-factored mechanical requirement.

3. Worm gearbox chosen for compactness in a continuous-duty high-power application. A 15 kW worm at 60% efficiency wastes 6 kW continuously and runs hot.

   Prevention: Use worm units where self-locking or very high single-stage ratio is genuinely required. Above a few kW continuous, use helical, bevel-helical or planetary.

4. No mounting position declared. A gearbox designed for horizontal mounting installed vertically may not lubricate its upper bearings.

   Prevention: State the mounting position and output shaft orientation on every enquiry, and check the oil level marking matches the actual installation.

5. EP gear oil in a worm gearbox with a bronze wheel. Sulphur-phosphorus additives can corrode yellow metals at operating temperature.

   Prevention: Use a compounded or specifically worm-rated oil, or a PAG synthetic with confirmed yellow-metal compatibility.

6. Standard breather in a humid or wash-down environment. Water enters as the gearbox breathes; 0.1% water in the oil can halve bearing life.

   Prevention: Specify desiccant or expansion-chamber breathers for outdoor, humid and wash-down installations.

7. Disc coupling on a shock-loaded drive. Disc couplings have zero damping; shock passes straight into the gearbox teeth and the motor shaft.

   Prevention: Use grid, elastomeric or fluid couplings where the load is shocky or reversing; reserve disc couplings for smooth high-speed service.

8. Treating a high-misalignment-rated coupling as permission to skip alignment. Running a gear coupling at its 1.5° limit shortens bearing and seal life dramatically even though the coupling itself survives.

   Prevention: Align every machine to the speed-based tolerance table regardless of coupling capability; use laser alignment above 30 kW.

9. Alignment checked before piping is connected and never again. Pipe strain pulls the machine out of alignment at the moment the flange bolts are torqued.

   Prevention: Record alignment before and after piping connection; reject the piping if the change exceeds tolerance.

10. Ignoring thermal growth on hot machines. Cold-aligned hot machines run misaligned.

    Prevention: Calculate thermal growth from material, height and temperature rise, and apply cold offsets so the machine aligns when hot.

11. Gear coupling with no grease schedule. Centrifugal action separates grease; the teeth wear and then fail suddenly.

    Prevention: Use high-speed coupling grease, set a 12-18 month regrease interval, and record it in the maintenance system — or specify a disc coupling instead and remove the task.

Supply from Kasko Makine

Kasko Demir Çelik Makine supplies power transmission equipment as complete drive packages:

Gearboxes

• Helical and bevel-helical gearboxes, parallel and right-angle, 0.12 kW to 2,000 kW
• Planetary gear units for high torque density
• Worm gearboxes and worm gearmotors
• Shaft-mounted reducers with torque arms for belt conveyors
• Gearmotors, foot and flange mounted
• Industrial gear units to AGMA and ISO rating standards
• Ratios from 1.25:1 to 1,000:1 and above
• Fan cooling, sump cooling coils and external oil cooling circuits
• Hollow shaft, solid shaft and shrink-disc output arrangements

Couplings

• Elastomeric: tyre, jaw, pin-and-bush, rubber-in-compression
• Grid couplings with grease-retaining covers
• Gear couplings, full-flex and flex-rigid, with spacers
• Disc and diaphragm couplings for API 610 and API 617 service
• Fluid couplings for high-inertia starting
• Rigid, sleeve and spacer couplings
• Torque limiters and shear-pin safety couplings
• Coupling guards to machinery safety requirements

Associated supply

• Electric motors in IE3, IE4 and IE5, including Ex-rated
• Variable frequency drives and soft starters
• Bearings, bearing housings and lubrication equipment
• Chain drives, sprockets, belt drives and pulleys
• Baseplates and mounting hardware

Engineering support

Send the driven equipment data — absorbed power, input and output speeds, load character, hours per day, starts per hour, mounting orientation, shaft diameters, site ambient temperature — and we will return a gearbox and coupling selection with the applied service factor stated and the thermal rating checked at site ambient, so you can see the margin rather than assume it.

Certification

Dimensional and performance documentation, gear rating calculations to AGMA 2001 or ISO 6336 on request, material certificates for shafts and gears to EN 10204 3.1, no-load run test reports, and painting and preservation specifications for shipping and storage.

Logistics

Standard gearmotors and small reducers generally ship in 2-4 weeks. Industrial gear units and large planetary drives typically 8-16 weeks. Couplings in standard sizes often from stock. Shipping from Istanbul by road to Europe and the Caucasus and by sea to Gulf, African and Asian destinations.

Send your drive data and we will return gearbox and coupling selections with service factor and thermal rating stated within three working days. Reach us at info@kaskomakine.com or WhatsApp +90 (537) 521 1399.

Continue Reading: Rotating Equipment Series

• Industrial Electric Motors: IE Classes and Enclosures
• Mechanical Seals: API 682 Types and Piping Plans
• Industrial Pumps: Complete Guide
• Material Handling: Conveyors and Bucket Elevators

Frequently Asked Questions

Q: What service factor should I use for a gearbox?
A: AGMA practice gives roughly 1.25 for uniform loads in continuous service, 1.50 for moderate shock in continuous service, and 1.75 to 2.00 for heavy shock such as crushers and reciprocating compressors. Add 0.25 for reversing duty and 0.1 to 0.25 for more than ten starts per hour. Multiply absorbed power by the service factor to get the required gearbox mechanical rating.

Q: What is a gearbox thermal rating and why does it matter?
A: The thermal rating is the power a gearbox can dissipate continuously without the oil exceeding its temperature limit, typically 85 to 95°C. Catalogue figures usually assume 25°C ambient with free air circulation, so at 45°C inside a guard the real thermal rating can be half the published one. When thermal rating falls below the service-factored mechanical requirement, the gearbox needs fan cooling, a sump cooling coil or an external oil cooler.

Q: How efficient are worm gearboxes compared with helical?
A: Helical and bevel-helical gearboxes reach 96 to 98% per stage, and planetary units 97 to 98%. Worm gearboxes range from about 90% at 10:1 down to below 55% at 100:1 because power is transmitted through sliding contact. A 15 kW worm drive at 60% efficiency wastes 6 kW continuously as heat, so worm units suit low-power applications needing self-locking or very high single-stage ratio rather than continuous power transmission.

Q: Which coupling type should I use for a shock-loaded drive?
A: Grid couplings are the usual answer at high torque, because the serpentine steel grid flexes to absorb peaks and can cut peak torque by up to 30%. Elastomeric couplings give even better damping at lower torque. Fluid couplings suit high-inertia starting on crushers and long conveyors. Disc and diaphragm couplings have no damping at all and pass shock straight through, so they should be reserved for smooth high-speed service.

Q: What alignment tolerance should I work to?
A: For flexible couplings, work to about 0.10 mm offset below 1,000 rpm, 0.07 mm from 1,000 to 2,000 rpm, 0.05 mm from 2,000 to 3,000 rpm and 0.03 mm above that, with similar angular tolerances per 100 mm. API 610 pumps often require 0.05 mm as the limit with 0.025 mm as the target. Check for soft foot before aligning and recheck alignment after piping is connected.

Q: Why do gear couplings fail suddenly?
A: Gear couplings depend entirely on lubrication between the crowned external teeth and the internal sleeve teeth. Centrifugal action separates grease, oil and thickener over time, leaving the teeth dry. Wear accelerates, backlash grows, and failure can occur without warning. They need high-speed coupling grease and a 12 to 18 month regrease interval that is actually carried out, or a disc coupling should be used instead.

Q: Does water in gear oil matter?
A: Yes, substantially. As little as 0.1% water in gear oil can halve bearing life by disrupting the oil film and promoting corrosion and additive depletion. Water enters mainly through standard vented breathers as the gearbox heats and cools. Desiccant or expansion-chamber breathers cost very little and prevent most of the problem in humid, outdoor and wash-down installations.
