Oil & Gas Separators: 2-Phase vs 3-Phase, Sizing & Selection

Quick Answer

A separator is a pressure vessel that splits a wellstream into its constituent phases using gravity, momentum change, and coalescence. A two-phase separator divides gas from total liquid; a three-phase separator divides gas, oil, and water, and requires additional residence time plus an interface control system. Vessels come in three orientations: horizontal — the most common in oil-dominant and three-phase service, offering the largest gas-liquid interface area, longest liquid retention, and best handling of foaming and emulsion, but with a large plot footprint; vertical — favoured for gas-dominant streams, low liquid volumes, sand-laden production (a conical bottom lets solids drop out), and space-constrained installations such as offshore platforms; and spherical, now uncommon. Performance depends less on the shell than on the internals: the inlet device (deflector, half-pipe, vane, or cyclonic) which kills momentum without shattering droplets, the gravity settling section, mist extractors (mesh pad, vane pack, or axial cyclone) which remove fine droplets from the gas, and weirs and buckets which set the liquid levels. Sizing is driven by retention time — commonly around 1–3 minutes for oil–water separation depending on gravity and emulsion tendency — and by the gas-side droplet settling criterion, usually expressed through the Souders–Brown equation with a K-factor.

Everything downstream of a wellhead depends on separation working. The gas must be dry enough for compression, the oil dry enough for export specification, and the produced water clean enough for treatment or reinjection. Get separation wrong and the consequences propagate: liquid carryover damages compressors, gas carry-under causes level control instability and slugs the oil line, and water in the export oil breaches the BS&W specification and costs money at the custody transfer meter.

What makes separator design harder than it appears is that the vessel itself is the easy part. A separator is a straightforward pressure vessel to fabricate. The difficulty lies in the internals and the residence time, and in the fact that real wellstreams behave badly — they foam, they emulsify, they carry sand, they slug, and their composition changes over field life as water cut rises.

That last point is worth emphasising for anyone buying separators for a new field. A separator sized for first-oil conditions with 5% water cut may be badly undersized for the water handling required ten years later at 60% water cut. Separators are long-lived assets facing a changing duty.

For process engineers, facilities engineers, and procurement teams — this guide covers oil and gas separators: two-phase versus three-phase, vessel orientation, internals, sizing principles, the problems that defeat separators, and how to specify.

For the pressure vessel design and fabrication side, see Chemical Reactors & Pressure Vessels.

Separation Mechanisms

Separators exploit three physical mechanisms in sequence:

1. Momentum change — the inlet device abruptly changes the direction and velocity of the incoming stream, causing the denser phases to separate out by inertia
2. Gravity settling — in the main body of the vessel, gas velocity is reduced enough that liquid droplets fall out of the gas, while in the liquid section oil and water separate by density difference
3. Coalescence — fine droplets that gravity alone cannot remove are captured on a surface, merge into larger droplets, and drain away; this is what mist extractors and coalescing plates do

Effective design gives each mechanism the space and time it needs.

Two-Phase vs Three-Phase

Two-phase separator — separates gas from total liquid. One gas outlet, one liquid outlet, one level control loop. Used where water content is negligible, in gas gathering, as a scrubber ahead of compression, and as the first stage of a multi-stage train.

Three-phase separator — separates gas, oil, and water. One gas outlet and two liquid outlets, requiring:

• Longer liquid retention time for oil–water separation
• An interface level control system in addition to the total liquid level
• Internal arrangements such as a weir plate or bucket-and-weir to hold the oil layer and set the interface
• Often a water boot on vertical vessels for low water cut

Three-phase vessels are inherently larger and more complex for the same throughput. Where water cut is low, a two-phase separator with downstream water knockout can be more economical — but the reverse mistake, specifying two-phase for a stream that will develop significant water cut, is a common and expensive one.

Vessel Orientation

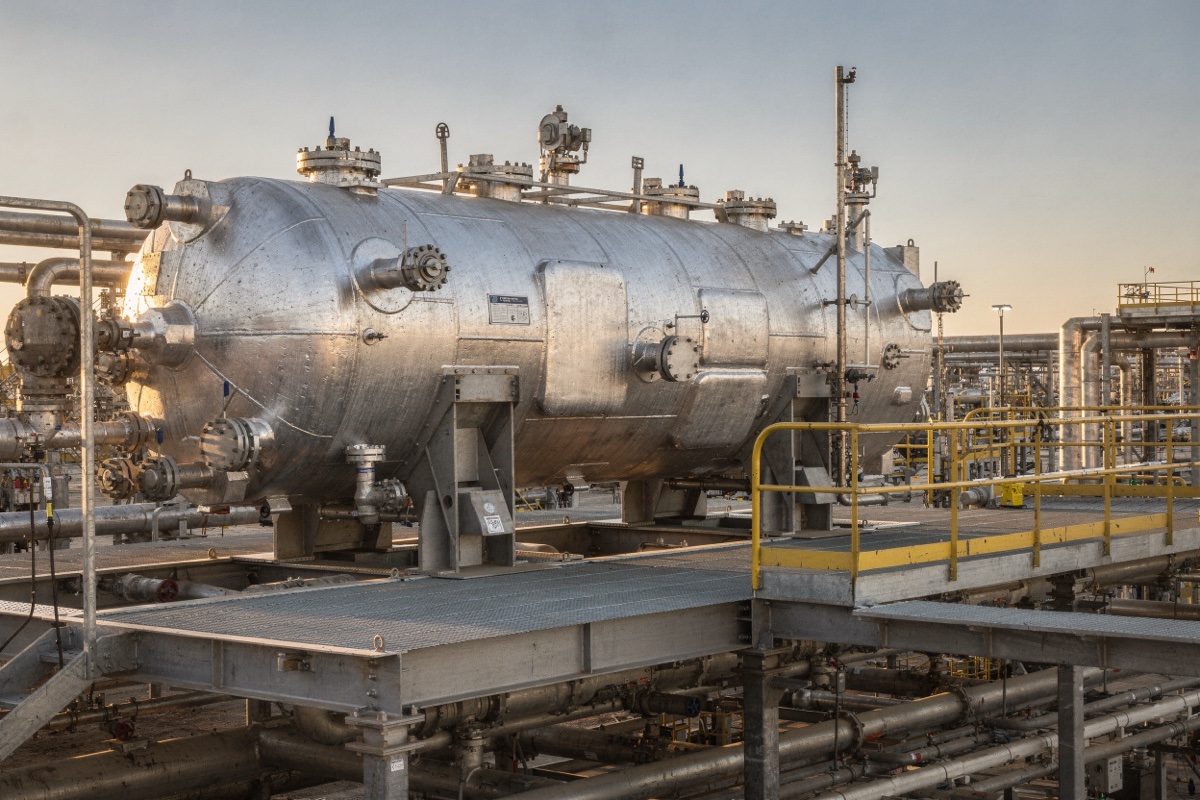

Horizontal Separators

The workhorse for oil production and three-phase service.

Advantages:

• Largest gas–liquid interface area for a given volume, giving efficient gas–liquid separation
• Longest liquid retention time — critical for oil–water separation and emulsion breaking
• Better handling of foaming crude (more surface area for foam to collapse)
• Better handling of high gas–oil ratio and slugging when adequately sized
• Easier to install internals such as plate packs and coalescers

Disadvantages:

• Large plot area — a genuine constraint offshore and in congested plants
• Solids accumulate along the bottom and require sand jetting systems
• More difficult to drain fully

Use for: most three-phase production separation, high liquid volumes, foaming and emulsifying crude, and onshore facilities where plot space allows.

Vertical Separators

Advantages:

• Small plot footprint — the decisive advantage offshore and on skids
• Handles sand and solids well — a conical bottom lets solids fall to a single collection point for jetting
• Better for surging and slugging liquid flow, since level rises without changing the interface area
• Easier to drain completely
• Suits low liquid loading and gas-dominant streams

Disadvantages:

• Smaller gas–liquid interface area for the same volume
• Liquid retention time is expensive to increase (requires height)
• Level control is more sensitive

Use for: gas-dominant streams, scrubbers, sand-laden production, low liquid volumes, offshore and space-constrained installations.

Spherical Separators

Compact and pressure-efficient, but limited liquid capacity and difficult internals arrangement. Rarely specified in new projects.

Internals — Where Performance Comes From

Inlet Device

The single most influential internal. It must remove the momentum of the incoming stream and begin bulk separation without shattering liquid droplets into a fine mist that the mist extractor then has to remove.

A poor inlet device is a frequent root cause of carryover that gets misdiagnosed as a mist extractor problem.

Gas Gravity Settling Section

The clear space where gas velocity drops and droplets settle. Its length (horizontal) or height (vertical) is set by the droplet settling calculation. Flow straightening may be included to reduce turbulence and short-circuiting.

Mist Extractor

Removes fine droplets from gas before it leaves the vessel.

Selection rule: mesh pads for clean service, vane packs where fouling, wax, or solids are expected, cyclones for high gas throughput.

Liquid Section Internals

• Weir plate — sets the oil level and separates the oil compartment from the water compartment
• Bucket and weir — an arrangement eliminating the need for an oil–water interface controller
• Plate packs / coalescing plates — increase effective settling area, shortening required retention time and reducing vessel size
• Vortex breakers — prevent gas being drawn into the liquid outlets
• Sand jets and drains — for solids removal
• Defoaming plates — where foaming is expected

Sizing Principles

Gas Capacity — Droplet Settling

The gas section is sized so that liquid droplets above a target size settle out. The standard approach uses the Souders–Brown equation, which expresses maximum allowable gas velocity through a K-factor dependent on separator type, pressure, and mist extractor.

Higher K means a smaller vessel; K values are reduced for foaming service, high pressure, and demanding separation.

Liquid Capacity — Retention Time

The liquid section is sized on retention time: the time liquid spends in the vessel.

• Two-phase (gas–liquid): shorter times are adequate for degassing
• Three-phase (oil–water): commonly around 1–3 minutes, with the higher end for heavy or emulsifying crude
• Foaming crude: substantially longer, sometimes several times the base figure
• Emulsion-prone streams: longer, plus consideration of chemical demulsifier injection and heat

Slug handling must also be checked — the vessel needs surge volume above the normal liquid level to absorb slugs without carrying liquid into the gas outlet.

Design Conditions

• Design pressure and temperature covering upsets
• Corrosion allowance for the service
• NACE MR0175 compliance where H₂S is present — see NACE MR0175
• Materials selected for CO₂, chlorides, and sand erosion
• Full pressure vessel design to ASME Section VIII Division 1 with U-stamp, or Division 2 for demanding service

The Problems That Defeat Separators

Foam — gas bubbles stabilised in the oil, dramatically reducing effective retention and causing both liquid carryover and gas carry-under. Managed with defoaming plates, longer retention, and antifoam chemical injection. Foaming tendency should be established from fluid samples, not assumed.

Emulsion — water dispersed in oil as fine droplets that will not settle. Requires longer retention, heat, demulsifier chemical, or downstream electrostatic treatment. Emulsion tendency rises with agitation, so a violent inlet device can create the problem the vessel then has to solve.

Sand and solids — accumulate in the liquid section, reducing effective volume and eventually burying the internals. Requires sand jetting systems, and favours vertical vessels with conical bottoms where solids are significant.

Slugging — intermittent large liquid volumes from the flowline. Requires surge volume, and may justify an upstream slug catcher.

Wax and asphaltene — plug mesh pads and coat internals. Favours vane packs over mesh.

Changing water cut over field life — the separator that suits first oil may be badly undersized for water handling a decade later. Where field decline profiles are known, sizing should consider the future duty.

Selection Process

1. Define the duty — gas, oil, and water flow rates, and how they change over field life
2. Fluid characterisation — densities, viscosity, GOR, foaming and emulsion tendency, sand content, H₂S and CO₂
3. Two-phase or three-phase — based on water cut now and later
4. Orientation — horizontal for oil-dominant, three-phase, foaming, and where plot allows; vertical for gas-dominant, sand-laden, low liquid, and space-constrained
5. Sizing — gas section by droplet settling (Souders–Brown with an appropriate K-factor), liquid section by retention time, plus slug surge volume
6. Internals selection — inlet device, mist extractor type, plate packs, weirs, vortex breakers, sand jets
7. Materials and corrosion allowance — including NACE compliance for sour service
8. Design code and certification — ASME VIII, PED, NACE, required NDE
9. Instrumentation and controls — level and interface measurement, level control valves, pressure control, safety instrumented functions
10. Relief protection — pressure relief sized for the credible scenarios, per Pressure Relief & Safety Valves

Common Specification Mistakes

After 15+ years supplying process equipment and pressure vessels:

Mistake 1: Sizing Only for First-Oil Conditions

Separator sized at 5% water cut. Ten years later at 60% water cut it cannot make export BS&W specification.

Prevention: Size against the field decline profile, considering water cut over the design life, or design for retrofit of additional capacity.

Mistake 2: Ignoring Foaming Tendency

Retention time based on standard values for a crude that foams heavily. Effective retention collapses and liquid carries over into the gas.

Prevention: Establish foaming tendency from fluid samples. Increase retention time, fit defoaming plates, and provide antifoam injection.

Mistake 3: Violent Inlet Device

Simple baffle plate specified on a high-momentum inlet. The stream is shattered into fine mist and an emulsion is created inside the vessel.

Prevention: Match the inlet device to inlet momentum — vane or cyclonic inlets for high rates. The inlet device is not the place to save money.

Mistake 4: Mesh Pad in Fouling Service

Wire mesh mist extractor used with waxy crude or solids-bearing gas. It plugs, pressure drop rises, and eventually it collapses or bypasses.

Prevention: Use vane packs where wax, asphaltene, or solids are credible; reserve mesh for clean service.

Mistake 5: No Sand Handling Provision

Horizontal separator installed on sand-producing wells with no jetting system. Sand accumulates, buries internals, and volume is lost.

Prevention: Provide sand jets and drains, and consider a vertical vessel with conical bottom where sand production is significant.

Mistake 6: Inadequate Slug Surge Volume

Vessel sized on steady-state rates. A liquid slug from the flowline fills the vessel and carries over.

Prevention: Check slug volume from flowline hydraulics and provide surge capacity, or install an upstream slug catcher.

Mistake 7: Wrong Materials for Sour or Erosive Service

Standard carbon steel specified for a sour, sand-bearing stream.

Prevention: Apply NACE MR0175 for H₂S service, add corrosion allowance for CO₂, and consider erosion-resistant internals or cladding where sand is present.

Supply from Kasko Makine

Kasko Makine fabricates and supplies separators and process vessels for upstream oil and gas, refining, and industrial projects:

Equipment:

• Two-phase separators (horizontal and vertical)
• Three-phase separators
• Test separators
• Production and inlet separators
• Gas scrubbers and knockout drums
• Slug catchers
• Flare knockout drums
• Filter separators
• Sand separators and desanders
• Free water knockout vessels

Internals supplied and installed:

• Inlet devices — diverter, half-pipe, vane, and cyclonic
• Mist extractors — mesh pad, vane pack, and axial cyclone
• Coalescing plate packs
• Weir plates, bucket-and-weir arrangements
• Vortex breakers
• Defoaming plates
• Sand jetting systems
• Flow straighteners

Construction:

• ASME Section VIII Division 1 with U-stamp; Division 2 for demanding service
• PED for European projects
• NACE MR0175 / ISO 15156 for sour service
• Carbon steel, low-temperature carbon steel, stainless, duplex, and clad construction
• Corrosion allowance and internal coating per service

Packages: skid-mounted separator packages with instrumentation, level and interface control, control valves, relief protection, piping, and structural steel

Engineering support:

• Two-phase vs three-phase evaluation for your water cut profile
• Orientation selection (horizontal vs vertical)
• Gas capacity sizing and liquid retention time calculation
• Slug surge volume assessment
• Internals selection for foaming, emulsion, wax, and sand
• Materials and corrosion allowance selection
• Future duty review against field decline profiles

Certification: ASME U-1 data reports, EN 10204 Type 3.1/3.2 material certificates, WPS/PQR and welder qualifications, NDE reports, PWHT records, hardness surveys for sour service, hydrostatic test certificates, PMI, third-party inspection

Logistics: Separators and process vessels shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard vessels 16-24 weeks; large, clad, and skid-mounted packages 24-40 weeks.

Need production separators or vessel fabrication? Send us your process conditions (gas, oil, and water flow rates now and over field life), operating and design pressure and temperature, fluid properties including density, viscosity, GOR, foaming and emulsion tendency, sand content, H₂S and CO₂ levels, and any plot space constraints to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll recommend the configuration, size the vessel and internals, and provide a design and quotation within 72 hours.

Continue Reading: Process Equipment Guides

• Chemical Reactors & Pressure Vessels — ASME Section VIII vessel design
• NACE MR0175 Sour Service — Sour service material requirements
• Heat Exchangers — Process heat transfer
• Pressure Relief & Safety Valves — Overpressure protection
• Control Valves & Actuators — Level and pressure control
• Industrial Strainers — Upstream protection

Frequently Asked Questions

Q: What is the difference between a two-phase and three-phase separator?
A: A two-phase separator divides the incoming wellstream into gas and total liquid, with one gas outlet, one liquid outlet, and a single level control loop. It suits gas gathering, compressor suction scrubbing, and streams where water content is negligible. A three-phase separator divides the stream into gas, oil, and water, requiring one gas outlet and two liquid outlets. It needs substantially longer liquid retention time for oil–water separation, an interface level control system in addition to total liquid level, and internal arrangements such as a weir plate or bucket-and-weir to hold the oil layer and set the interface. Three-phase vessels are larger and more complex for the same throughput, so where water cut is low, a two-phase separator with downstream water knockout can be more economical.

Q: When should a horizontal separator be used instead of a vertical one?
A: Horizontal separators offer the largest gas–liquid interface area for a given volume, the longest liquid retention time, and better handling of foaming crude and emulsions — making them the standard choice for three-phase production separation, high liquid volumes, and onshore facilities where plot space allows. Vertical separators occupy a much smaller footprint, which is decisive offshore and on skids; they handle sand and solids well because a conical bottom lets solids fall to a single collection point for jetting; and they cope better with surging liquid flow since level rises without changing the interface area. Vertical vessels therefore suit gas-dominant streams, scrubbers, sand-laden production, low liquid loading, and space-constrained installations.

Q: What retention time is used to size an oil and gas separator?
A: The liquid section of a separator is sized on retention time — how long liquid remains in the vessel. For three-phase oil–water separation, retention times of roughly one to three minutes are common, with the higher end used for heavier crude and streams with a tendency to emulsify. Two-phase gas–liquid service generally needs less time, since only degassing is required. Foaming crude requires substantially longer retention, sometimes several times the base figure, because foam dramatically reduces effective separation volume. The gas section is sized separately on droplet settling, typically using the Souders–Brown equation with a K-factor appropriate to the separator type, pressure, and mist extractor. Slug surge volume must also be checked.

Q: What is a mist extractor in a separator?
A: A mist extractor is the internal that removes fine liquid droplets from gas before it leaves the separator, capturing droplets too small for gravity settling and coalescing them into larger drops that drain back. Three types are common. Wire mesh pads remove droplets down to around 10 µm, are inexpensive and highly efficient, but plug readily with wax, asphaltene, or solids. Vane packs remove droplets to roughly 20–40 µm, tolerate fouling far better, and handle higher gas velocities at greater cost. Axial cyclones offer removal to around 10 µm at the highest capacity per unit area, suiting high gas rates, at the highest cost. Mesh suits clean service; vane packs suit fouling service; cyclones suit high throughput.

Q: Why does the separator inlet device matter?
A: The inlet device is the single most influential internal because it must remove the momentum of the incoming stream and begin bulk separation without shattering liquid into a fine mist that the mist extractor then has to remove — or worse, creating an emulsion inside the vessel. A simple diverter or baffle plate is cheapest and breaks momentum effectively but generates fine droplets. Half-pipe and elbow devices give a gentler direction change with less droplet shatter. Vane-type inlets perform well at moderate cost and are widely used. Cyclonic inlets give the best performance for high gas rates and slugging at the highest cost. Carryover problems are frequently misdiagnosed as mist extractor failures when the real cause is an inadequate inlet device.

Q: How does water cut affect separator selection over field life?
A: Water cut typically rises substantially over a field's producing life, which means a separator sized for first-oil conditions can be badly undersized for water handling years later. A vessel designed around 5% water cut may be unable to achieve export BS&W specification once water cut reaches 60%, because oil–water separation requires far more residence time than the original design provided. Separators are long-lived assets facing a changing duty, so sizing should consider the field decline and water cut profile rather than initial conditions alone, or the design should allow for retrofitting additional capacity, plate packs, or downstream treatment. The related decision — two-phase versus three-phase — should also be made against future water cut, not just current.
