Deluge Valve

Overview

A Deluge Valve is a critical component of a deluge fire sprinkler system, which is designed to deliver a large volume of water quickly over a wide area. Unlike conventional sprinkler systems, deluge systems use open sprinklers or nozzles and normally dry piping.

Deluge System Concept (As Provided)

In a deluge system, the piping network is not pressurized with air or water during normal conditions. The system is connected to a water supply through a deluge valve, which opens when activated by a fire detection system such as smoke or heat detectors.

Purpose & Function (As Provided)

Deluge valves are used in applications that require the rapid application of large volumes of water. When activated, water is released simultaneously through all open sprinklers or nozzles, providing immediate area-wide fire suppression or exposure protection.

Deluge Valve Operation (As Provided)

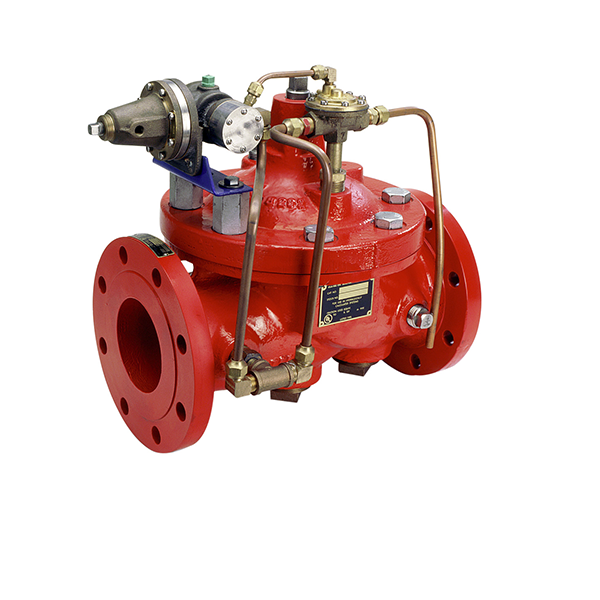

The deluge valve is a quick-release, hydraulically operated diaphragm valve consisting of three chambers separated by a diaphragm-operated clapper and seat seal. In the normal ‘SET’ position, water pressure is maintained in the top chamber via an external bypass check valve and a restricted orifice.

When a fire is detected, the actuation device vents the top chamber to atmosphere. Because the restricted inlet cannot replenish pressure fast enough, the pressure in the top chamber drops rapidly. The higher supply pressure beneath the clapper then lifts it, allowing water to flow into the system piping network and alarm devices.

System Characteristics (As Provided)

• Open sprinklers or spray nozzles
• Dry piping until system activation
• Immediate full-area water discharge
• Optional foam proportioning for flammable liquid fires

Applications (As Provided)

• Power transformer installations
• Storage tanks and tank farms
• Conveyor and material handling systems
• Aircraft hangars (with foam systems)
• Facilities handling flammable or combustible liquids
• Equipment pits and hazardous process areas

Fire Protection Role (As Provided)

Deluge systems create a protective buffer zone in areas where fires may spread rapidly. They are also used for surface cooling to prevent structural deformation, explosion, or collapse by maintaining temperatures below critical limits.

Advantages of Deluge Valves (As Provided)

• Extremely fast fire response
• Simultaneous flooding of protected areas
• Effective cooling of surrounding structures
• Reduced risk of fire spread
• Lower fire losses in high-risk installations
• Generally less expensive than gas or powder suppression systems

Disadvantages of Deluge Valves (As Provided)

• Potential damage to sensitive or electronic equipment
• Longer clean-up time compared to gas or powder systems
• Requires a large and reliable water supply

Operational Benefits (As Provided)

• High reliability in hazardous fire scenarios
• Simple mechanical and hydraulic operation
• Compatible with detection and foam systems
• Proven solution for industrial fire protection
