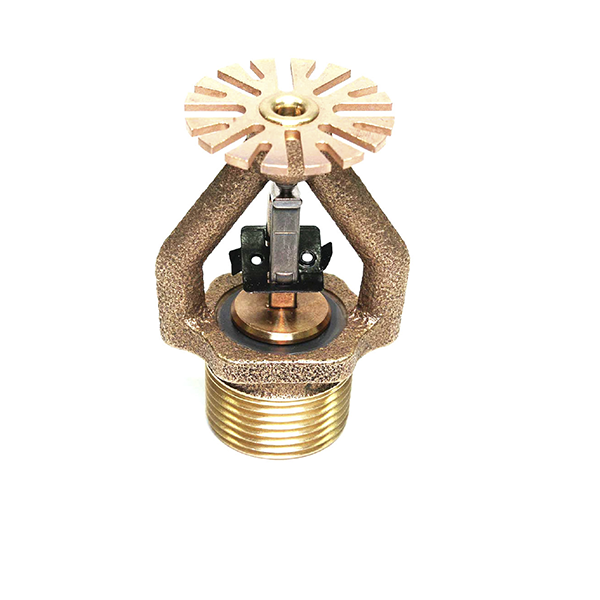

Esfr (early Suppression Fast Response)

Overview

Early Suppression Fast Response (ESFR) systems are advanced fire sprinkler systems specifically developed to provide exceptional protection for high-piled storage occupancies. These systems are designed to detect and suppress fires rapidly by delivering large volumes of water directly to the fire source.

System Concept (As Provided)

ESFR systems are quick-response, high-volume sprinkler systems installed at the ceiling level. They discharge large droplets of water at high velocity, enabling effective penetration of the fire plume and direct suppression of the fire, rather than merely controlling its spread.

Fire Suppression Principle (As Provided)

The primary objective of ESFR systems is early fire suppression. By reducing the heat release rate quickly, ESFR sprinklers prevent fire growth and limit damage to stored commodities, building structures, and surrounding areas.

Key Differences from Conventional Sprinkler Systems (As Provided)

• Speed: ESFR sprinkler heads activate faster than standard response sprinkler heads, allowing earlier water discharge.
• Volume: Conventional sprinklers typically discharge 25–30 gallons per minute, high-output conventional sprinklers around 60 gallons per minute, while ESFR sprinklers discharge approximately 100 gallons per minute.
• Droplet Size: ESFR sprinklers produce larger water droplets with greater momentum, enabling penetration through the fire plume to reach the seat of the fire.

Performance Characteristics (As Provided)

• High-volume water discharge
• Large droplet size with high kinetic energy
• Rapid thermal response
• Effective fire plume penetration

Design Capabilities (As Provided)

ESFR systems can be used in warehouses with ceiling heights up to 45 feet and storage heights up to 40 feet, depending on the commodity type, storage arrangement, and system listing approvals.

Economic Considerations (As Provided)

Compared to traditional in-rack fire suppression systems, ESFR systems are often more economical to install and maintain. Installation and material costs can be approximately 30% to 50% lower due to the elimination of in-rack piping and sprinklers.

Application Considerations (As Provided)

Before selecting an ESFR system, several factors must be evaluated, including the type of stored products, storage configuration, building height, building construction type, and overall cost comparison with alternative fire protection systems.

Typical Applications (As Provided)

• High-piled storage warehouses
• Distribution and logistics centers
• Industrial storage facilities
• Facilities storing high-challenge commodities

Operational Benefits (As Provided)

• Early and effective fire suppression
• Reduced fire spread and damage
• Elimination of in-rack sprinkler systems
• Lower installation and maintenance costs
• Improved safety for high storage environments
