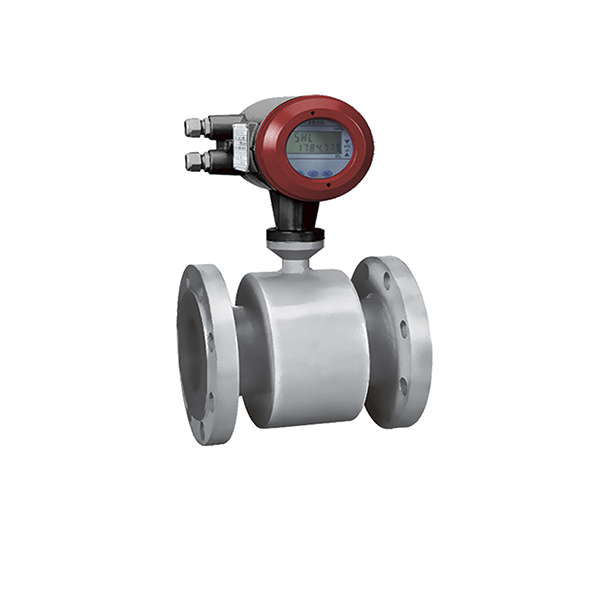

Flow Meter
Flow Meters designed for monitoring and verifying flow rates in fire pump systems, ensuring accurate performance control in fire protection applications.
Overview
Flow meters are essential components used to measure and verify the flow rate of fire pumps in fire protection systems. They allow operators and inspectors to monitor pump performance and ensure that the system delivers the required water flow during operation.
Function & Purpose (As Provided)
Flow meters are primarily used for checking the flow rate on fire pumps. By reading the measured values and comparing them with the pump nameplate data, users can confirm that the fire pump operates within its designed performance range.
Connection Types (As Provided)
- Butt welded connection
- Grooved connection
Technical Specifications (As Provided)
- Working Pressure: 500 psi
- Available Dimensions: 2½” – 12”
Application Area (As Provided)
This flow meter is suitable for use with all types of fire pumps, providing reliable flow measurement for testing, commissioning, and routine inspection of fire protection systems.
Approvals & Compliance (As Provided)
- FM Approved
Operational Benefits
- Accurate monitoring of fire pump performance
- Easy verification of pump operating values
- High pressure resistance suitable for fire systems
- Compatible with standard fire pump installations
- Compliance with recognized fire protection standards
