Lathe Chucks, Centers, Rests & Accessories
Precision lathe chucks, centers, rests, and accessories designed to securely hold, support, and stabilize workpieces during turning operations. Essential components for accurate, safe, and efficient machining on manual and CNC lathes.
Overview
Lathe chucks, centers, rests, and accessories are fundamental workholding and support elements used in turning operations. These components secure the workpiece to the headstock or tailstock spindle and provide additional support to ensure accuracy, surface quality, and machining stability.

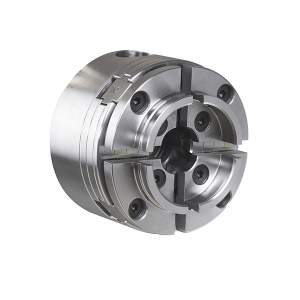

Lathe Chucks
A lathe chuck is a mechanical device that applies clamping force to hold a workpiece securely on the headstock or tailstock spindle. Different chuck types are selected based on workpiece geometry, accuracy requirements, and machining operations.
- Independent chuck
- Universal scroll chuck
- Combination chuck
- Hollow headstock spindle chuck
- Lathe tailstock chuck
- Collet chuck
- Step chuck
Lathe Centers
Lathe centers are used to support workpieces between the headstock and tailstock. They ensure concentricity and are commonly used for turning long shafts and precision cylindrical components.
Rests & Supports
Long or slender workpieces often require additional support to prevent deflection, vibration, or sagging during machining. The two most common support devices are steady rests and follower rests.
Steady Rest (Center Rest)
The steady rest is clamped to the lathe bed and supports long workpieces or shafts during turning, boring, or internal threading operations. It prevents the workpiece from springing under cutting forces or sagging due to its own weight.
- Supports workpieces projecting from the chuck or faceplate
- Typically uses three adjustable jaws for concentric support
- Top section swings open for easy workpiece removal
The workpiece must have a concentric bearing surface at the contact point. Proper jaw alignment and frequent lubrication of contact areas are required to ensure accuracy and prevent wear.
Follower Rest
The follower rest travels along the lathe bed with the cutting tool, supporting the workpiece directly behind the cutting area. This minimizes deflection during turning of long, thin components.
Accessories
- Faceplates
- Lathe dogs
- Drive plates
- Chuck keys and mounting adapters
- Special jaws and soft jaws
Applications
- Manual and CNC turning operations
- Machining long shafts and thin-walled parts
- Precision cylindrical and concentric components
- Boring and internal threading operations
Key Benefits
- Secure and accurate workpiece holding
- Improved surface finish and dimensional accuracy
- Reduced vibration and tool chatter
- Enhanced safety during lathe operations
