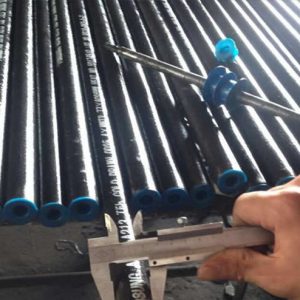

ASTM A213 T5 Seamless Alloy Pipe
ASTM A213 T5 seamless ferritic alloy steel pipe designed for boiler, superheater, and heat-exchanger applications. Suitable for elevated-temperature service with reliable creep strength and dimensional stability in industrial heat-transfer systems.
Standard & Grade
- Standard: ASTM A213
- Grade: T5
- Product type: Seamless ferritic alloy steel pipe / tube
Applications
- Boilers
- Superheaters
- Heat exchangers
- Industrial heat-transfer systems
Manufacturing
- Manufactured by the seamless process
- Supplied either hot finished or cold finished, as specified
Heat Treatment
- Heat treatment performed separately and in addition to heating for hot forming
- Ferritic alloy steels reheated as required by ASTM A213
Testing & Inspection
- Tension test
- Hardness test
- Flattening test
- Flaring test
- Each tube subjected to non-destructive electric testing or hydrostatic testing
Typical Supply Range
- Outside Diameter: 5/8" – 1-1/2"
- Wall Thickness: 0.049" – 0.135"
- Length: 6 ft – 60 ft
- Bending and finning available on request
ASTM A213 Dimensional Scope
- Inside Diameter: from 1/8 in. (3.2 mm)
- Outside Diameter: up to 5 in. (127 mm)
- Wall Thickness: 0.015 – 0.500 in. (0.4 – 12.7 mm)
- Other sizes available on request
Ordering & Units
- SI and inch-pound units supplied separately
- Inch-pound units apply unless "M" designation is specified
