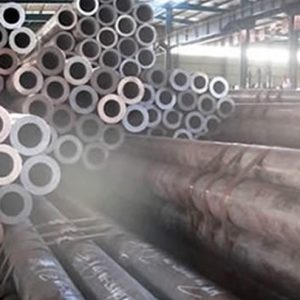

Astm A335 P92 High Pressure Boiler Pipes

Standard & Grade

• Standard: ASTM A335 / ASTM A335M
• ASME Equivalent: SA335
• Grade: P92
• Product type: Seamless alloy steel pipe

Service & Applications

• High-pressure boiler systems
• High-temperature piping applications
• Advanced power generation plants
• Petrochemical and energy facilities

Dimensions

• Outer Diameter (OD): 19.05 mm – 114.3 mm
• Wall Thickness: 2.0 mm – 14 mm
• Length: up to 16000 mm

Material & Manufacture

• Pipe may be supplied hot finished or cold drawn
• Manufactured by the seamless process
• Finishing heat treatment applied as specified

Heat Treatment Options

• A (Annealed) / N + T (Normalized & Tempered)
• N + T / Q + T (Quenched & Tempered)
• N + T (Normalized & Tempered)

Inspection & Testing

• Hydrostatic test applied to each length of pipe
• Non-destructive examination (NDE) in accordance with required practices
• Chemical composition inspection
• Mechanical properties tests: tensile strength, yield strength, elongation
• Flattening test
• Hardness test or bend test
• Flaring, bending, and impact tests where specified
• Surface and dimensional inspection

Mechanical Test Sampling

• Batch-type furnace: tests on 5% of pipes from each treated lot (minimum one pipe)
• Continuous heat treatment: tests on 5% of the lot (minimum two pipes)

Surface Treatment

• Oil-dip
• Varnish
• Passivation
• Phosphating
• Shot blasting

Packing & Marking

• Bare packing, bundle packing, or crate packing
• Wooden protection at both ends of pipes
• Sea-worthy export packing as required
• Each crate marked with order number, heat number, dimensions, weight, and bundle details

NDE Size-Range Note

• The range of pipe sizes examinable by each non-destructive examination method is subject to the limitations defined in the applicable practice scope
