Cathodic Protection: Sacrificial vs Impressed Current Systems Guide

Quick Answer

Cathodic protection (CP) prevents corrosion of buried and submerged steel by making the entire structure a cathode in an electrochemical cell, so that metal loss occurs at a sacrificial anode instead. Two system types exist. Sacrificial (galvanic) anode CP connects the structure to a more electrochemically active metal — magnesium, zinc, or aluminium — which corrodes preferentially; it needs no external power, is simple and self-regulating, but delivers limited current output and suits well-coated structures and low-resistivity soils. Impressed current CP (ICCP) uses a transformer-rectifier to drive current from inert or semi-inert anodes (mixed metal oxide, high-silicon cast iron, graphite) into the electrolyte; it delivers far greater and adjustable current, suits long pipelines, poorly-coated structures, and high-resistivity soils, but requires a power supply, ongoing monitoring, and careful control to avoid overprotection. The universal acceptance criterion is the −850 mV potential relative to a copper/copper sulphate reference electrode (CSE), measured with the IR drop removed — commonly verified as a −850 mV instant-off reading, or alternatively 100 mV of cathodic polarisation. CP is always paired with coating: the coating is the primary barrier and CP protects only the defects, which is why a poorly coated structure may need a CP system an order of magnitude larger than a well-coated one.

Steel buried in soil or immersed in water corrodes because different areas of the same surface develop slightly different electrochemical potentials, creating anodic regions that lose metal and cathodic regions that do not. Cathodic protection works by overwhelming that natural variation: apply enough current from an external source and the entire structure becomes cathodic, so corrosion moves to the anode you chose and can replace.

It is one of the few genuinely elegant solutions in corrosion engineering, and it has been protecting pipelines, tank bottoms, jetties, and offshore structures for a century. It is also frequently misunderstood in one specific way that matters commercially: CP is not an alternative to coating. A well-coated pipeline exposes perhaps a fraction of a percent of its steel to the soil, and the CP system only has to protect those defects. Strip the coating away and the current demand rises by orders of magnitude — more anodes, bigger rectifiers, higher power cost, and in many cases a system that simply cannot deliver enough current.

The second frequent misunderstanding is that more protection is better. Overprotection generates hydrogen at the steel surface, which drives coating disbondment and, in high-strength steels, hydrogen embrittlement. CP has an upper limit as well as a lower one.

For pipeline and integrity engineers, tank operators, and procurement teams — this guide covers cathodic protection: how it works, the two system types and when each applies, protection criteria, anode selection, monitoring, and the mistakes that cause CP systems to underperform.

For the primary barrier, see Pipeline Coatings.

How Cathodic Protection Works

Corrosion of steel in an electrolyte is an electrochemical process with two half-reactions occurring at different places on the same surface:

• Anodic (metal loss): iron dissolves, releasing electrons
• Cathodic (no metal loss): those electrons are consumed, typically reducing oxygen or water

Cathodic protection supplies electrons from an external source, forcing the whole structure to act as a cathode. With sufficient current, the anodic reaction on the structure effectively stops, and metal loss transfers to the anode.

The two ways to supply that current define the two system types.

Sacrificial (Galvanic) Anode Systems

A more electrochemically active metal is connected directly to the structure. The natural potential difference between the two metals drives current without any external power source, and the anode corrodes in place of the steel.

Anode Materials

Anodes are supplied bare for water service or pre-packaged in a backfill of gypsum, bentonite, and sodium sulphate for soil service, which lowers and stabilises the anode-to-soil resistance and keeps the anode surface moist.

Characteristics

Advantages:

• No external power — works anywhere, including remote locations
• Simple, low maintenance, nothing to fail electrically
• Self-regulating — output rises as demand rises
• Low interference risk with neighbouring structures
• Low capital cost for small systems

Limitations:

• Limited current output — a fundamental constraint
• Requires low soil resistivity to deliver useful current
• Finite life; anodes are consumed and must be replaced
• Impractical for long pipelines or large bare structures

Use for: well-coated short pipelines, distribution networks, tank bottoms in favourable soils, small vessels and internal protection, jetty piles, and hot-spot protection at known coating defects.

Impressed Current Systems (ICCP)

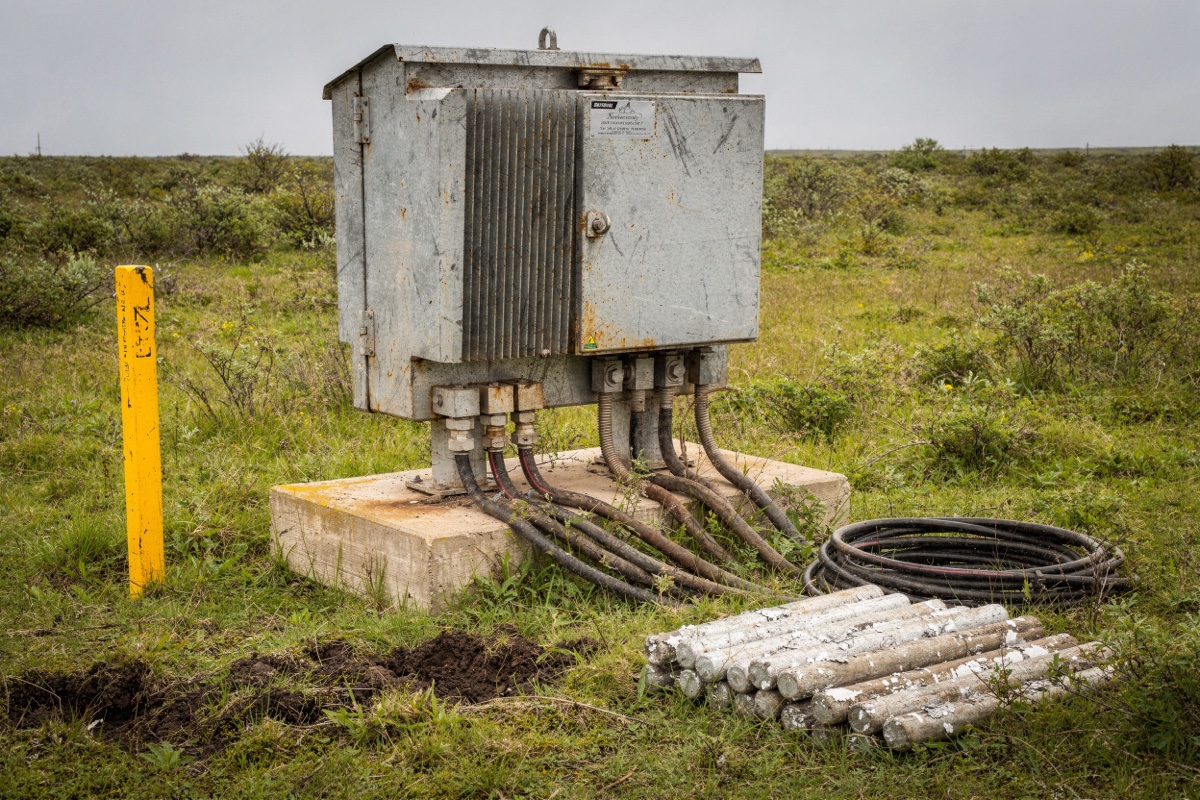

A transformer-rectifier converts AC mains to DC and drives current from an anode groundbed into the electrolyte and back to the structure through the soil.

Anode Materials

Groundbed Configurations

• Shallow horizontal or vertical groundbed — anodes buried at modest depth, coke breeze backfill; economical, but larger footprint and higher interference potential
• Deep well groundbed — anodes installed in a borehole tens or hundreds of metres deep; excellent current distribution over long distances, small surface footprint, less interference, higher cost
• Distributed anodes — anodes placed close to the structure, used for tank bottoms and congested areas

Characteristics

Advantages:

• High and adjustable current output — the rectifier can be tuned as coating degrades
• Works in high-resistivity soils where galvanic anodes cannot deliver current
• Protects long pipelines and large or poorly-coated structures
• Long anode life with MMO

Limitations:

• Requires a reliable AC power supply
• Requires ongoing monitoring and adjustment — an ICCP system left unattended is a common finding
• Interference (stray current) risk to neighbouring buried structures, which must be assessed and mitigated
• Overprotection risk if not controlled
• Higher capital cost and operating cost

Use for: cross-country transmission pipelines, large tank farms, poorly-coated legacy structures, high-resistivity soils, and marine structures.

System Comparison

Protection Criteria

The question "is the structure protected?" is answered by potential measurement against a reference electrode.

The −850 mV criterion. For buried steel, a structure-to-soil potential of −850 mV or more negative relative to a saturated copper/copper sulphate electrode (CSE) is the standard criterion.

The IR drop problem. A potential measured while current flows includes a voltage drop through the soil (IR drop) that is not real polarisation, so it overstates protection. The correction is to measure with the current momentarily interrupted:

• Instant-off potential — all CP current sources synchronously interrupted, reading taken in the first moments after interruption, before depolarisation begins. −850 mV instant-off is the criterion in general use.
• 100 mV polarisation shift — an alternative criterion where achieving −850 mV is impractical; demonstrates 100 mV of cathodic polarisation decay.

Upper limit — avoid overprotection. Potentials more negative than roughly −1,100 to −1,200 mV CSE generate hydrogen at the steel surface, causing:

• Coating disbondment — hydrogen and hydroxide accumulate under the coating
• Hydrogen embrittlement in high-strength steels

Protection is a band, not a target to exceed.

Note on stainless and other alloys: criteria differ for stainless steels, duplex, and non-ferrous materials. Applying carbon steel criteria to a duplex structure is incorrect and can cause hydrogen-related damage.

Design and Sizing

1. Structure data — surface area, material, coating type and expected quality, age
2. Soil resistivity survey — measured along the route (Wenner four-pin method); resistivity determines whether galvanic anodes are viable and drives groundbed design
3. Current density requirement — depends almost entirely on coating quality. A well-coated new 3LPE pipeline may need a tiny fraction of a mA/m²; a bare or badly coated structure needs orders of magnitude more
4. Total current demand = surface area × current density × safety factor, with allowance for coating degradation over design life
5. Anode selection and quantity — from current output per anode, consumption rate, and design life (commonly 20–30 years)
6. Groundbed design — configuration, depth, spacing, backfill
7. Rectifier sizing (ICCP) — voltage and current with margin
8. Attenuation check — for long pipelines, verifying protection reaches the mid-point between drain points
9. Interference assessment — effect on foreign structures, and mitigation (bonds, drainage, isolation)
10. Monitoring provisions — test posts, coupons, reference electrodes

The coating point again: current demand is dominated by coating quality. Design must account for coating deterioration over the life, but a system sized for a bare structure to compensate for poor coating is both expensive and prone to interference.

Components

• Anodes — galvanic (Mg, Zn, Al) or impressed current (MMO, HSCI, graphite)
• Transformer-rectifier — with output metering, adjustable taps, and increasingly remote monitoring
• Test posts / test stations — for potential measurement along the route
• Permanent reference electrodes — buried CSE or zinc references for accurate instant-off readings
• Coupons — small steel samples of known area, used to measure true polarisation without IR drop
• Insulating joints / monolithic isolation joints — electrically isolate the protected section from unprotected piping, station piping, or foreign structures
• Bonds and drainage — to manage interference
• Surge protection and polarisation cells — for AC mitigation and lightning
• Cables and connections — thermite (CADWELD) or pin brazing to the structure, with sealed connections
• Remote monitoring units — increasingly standard on ICCP

Monitoring and Survey

CP is not a fit-and-forget system.

Routine monitoring:

• Rectifier output readings (voltage, current) at regular intervals
• Test post potentials
• Anode bed condition

Indirect survey techniques:

CIPS / CIS (Close Interval Potential Survey) — potential measurements at close spacing (typically 1 m) along the entire pipeline with current synchronously interrupted. Produces a continuous protection profile and identifies under-protected sections.

DCVG (Direct Current Voltage Gradient) — detects and sizes coating defects by measuring voltage gradients in the soil above the line. Complements CIPS: CIPS shows where protection is inadequate, DCVG shows where the coating is damaged.

Soil resistivity and interference testing — periodic re-survey, particularly where new structures or HVAC/HVDC infrastructure has been installed nearby.

ILI (inline inspection) correlation — matching CP and coating survey findings against intelligent pig data to prioritise excavations.

Applications

Buried pipelines — the classic application, usually ICCP for transmission lines and galvanic for distribution.

Above-ground storage tank bottoms — the tank underside cannot be inspected in service, which is why cathodic protection of the bottom underside is mandatory under API 650 practice, typically using distributed anodes or a grid beneath the tank. See API 650 Storage Tanks.

Marine structures — jetties, piles, sheet piling, offshore platforms; aluminium alloy anodes or ICCP.

Ship hulls, ballast tanks, and internal surfaces of vessels and exchangers.

Reinforced concrete — protecting rebar in chloride-contaminated structures.

Well casings and plant buried piping networks.

Common Mistakes

After 15+ years supplying pipeline and industrial materials:

Mistake 1: Treating CP as a Substitute for Coating

CP system specified to compensate for cheap or damaged coating. Current demand is enormous, the system struggles, and interference problems multiply.

Prevention: Coating is the primary barrier and CP protects only the defects. Invest in coating quality first.

Mistake 2: Measuring Potentials With IR Drop Included

On-potential readings taken with current flowing, showing apparent protection that does not exist.

Prevention: Use synchronised current interruption and instant-off readings, or coupons and permanent reference electrodes.

Mistake 3: Overprotection

Rectifier turned up "to be safe". Potentials beyond roughly −1,100 mV CSE generate hydrogen, disbonding coating and risking embrittlement in high-strength steel.

Prevention: Control within the protection band. More negative is not better.

Mistake 4: Ignoring Interference

ICCP system installed without assessing effects on neighbouring buried structures. Stray current corrodes a third party's pipeline — a liability as well as a technical failure.

Prevention: Conduct interference testing, install bonds and drainage as needed, and coordinate with other operators.

Mistake 5: No Insulating Joints

Protected pipeline electrically continuous with station piping, casings, or foreign structures. Current drains away and protection is never achieved on the intended section.

Prevention: Install and verify insulating joints at defined boundaries, and test them periodically — failed isolation joints are a common finding.

Mistake 6: Installing and Then Not Monitoring

CP system commissioned and left unattended for years. Rectifier failure, cable damage, or anode depletion goes unnoticed until corrosion is found.

Prevention: Establish a monitoring regime with defined intervals, and use remote monitoring on critical or remote installations.

Mistake 7: CP Shielding by Disbonded Coating

Tape or disbonded PE coating that lets water in but blocks CP current. Corrosion proceeds while the survey shows protection.

Prevention: Specify coatings with proven cathodic disbondment resistance that do not shield current. See Pipeline Coatings.

Mistake 8: Applying Carbon Steel Criteria to Alloys

−850 mV criterion applied to a duplex or stainless structure, risking hydrogen damage.

Prevention: Use the correct criteria for the material. See Duplex & Super Duplex Pipe.

Supply from Kasko Makine

Kasko Makine supplies cathodic protection materials and coated pipeline products for oil and gas, water, marine, and industrial projects:

Galvanic anodes:

• Magnesium anodes (packaged and bare)
• Zinc anodes (soil, seawater, brackish water)
• Aluminium alloy anodes for marine and offshore
• Pre-packaged anodes with gypsum/bentonite backfill
• Bracelet anodes for submerged pipelines

Impressed current components:

• MMO (mixed metal oxide) titanium anodes — rod, tubular, wire, ribbon, and mesh
• High-silicon cast iron anodes
• Graphite anodes
• Transformer-rectifiers with metering and remote monitoring options
• Deep well and shallow groundbed materials
• Coke breeze backfill and canisters

System components:

• Test posts and test stations
• Permanent reference electrodes (Cu/CuSO₄, zinc)
• CP coupons
• Insulating joints and monolithic isolation joints
• Isolation kits for flanges (gaskets, sleeves, washers)
• Bonds, shunts, and junction boxes
• Surge protection and polarisation cells
• CP cable, thermite welding kits, and pin brazing consumables
• Cable connection sealing kits

Coated pipe and materials:

• 3LPE, 3LPP, FBE, and DLFBE coated line pipe — see Pipeline Coatings
• Field joint materials
• Casing spacers and end seals

Engineering support:

• CP system type recommendation (galvanic vs ICCP) from soil resistivity and structure data
• Current demand estimation from coating type and quality
• Anode sizing and life calculation
• Groundbed configuration guidance
• Insulating joint specification
• Monitoring provision specification
• Coating and CP compatibility review

Certification: material certificates, anode composition and electrochemical capacity test reports, rectifier test certificates, insulating joint test certificates, EN 10204 Type 3.1 documentation

Logistics: CP materials shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard anodes and components 4-10 weeks; rectifiers and insulating joints 8-16 weeks; MMO anodes 10-18 weeks.

Need cathodic protection materials? Send us the structure details (type, size, material, coating), soil resistivity data if available, environment (buried, submerged, marine), design life, and whether AC power is available at the site to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll recommend the system type, size the anodes, specify the components, and provide a quotation within 48 hours.

Continue Reading: Corrosion & Pipeline Guides

• Pipeline Coatings: 3LPE, FBE & Field Joints — The primary corrosion barrier
• API 650 Storage Tanks — Tank bottom CP requirements
• API 5L Line Pipe — Pipeline pipe specifications
• Corrosion Under Insulation — Above-ground corrosion
• Duplex & Super Duplex Pipe — Alloy CP considerations

Frequently Asked Questions

Q: How does cathodic protection work?
A: Corrosion of steel in soil or water is an electrochemical process: at anodic areas of the surface, iron dissolves and releases electrons, while at cathodic areas those electrons are consumed by reactions such as oxygen reduction. Cathodic protection supplies electrons from an external source so that the entire structure becomes cathodic, effectively stopping the anodic metal-loss reaction on the structure and transferring it to a deliberately installed anode. Current can be supplied in two ways: by connecting a more electrochemically active metal such as magnesium, zinc, or aluminium, which corrodes preferentially (sacrificial or galvanic CP), or by using a transformer-rectifier to drive current from inert anodes into the electrolyte (impressed current CP).

Q: What is the difference between sacrificial anode and impressed current cathodic protection?
A: Sacrificial (galvanic) anode systems connect the structure to a more active metal — magnesium, zinc, or aluminium — whose natural potential difference drives protective current without external power. They are simple, self-regulating, low maintenance, and carry little interference risk, but deliver limited current and require low soil resistivity, suiting well-coated and smaller structures. Impressed current systems use a transformer-rectifier to drive current from inert or semi-inert anodes such as mixed metal oxide titanium or high-silicon cast iron. They deliver high, adjustable current, work in high-resistivity soils, and can protect long pipelines and poorly coated structures — but require a reliable AC power supply, ongoing monitoring and adjustment, and careful management of stray-current interference with neighbouring structures.

Q: What is the −850 mV criterion in cathodic protection?
A: The −850 mV criterion is the standard acceptance measure for buried steel: the structure-to-soil potential should be −850 mV or more negative relative to a saturated copper/copper sulphate reference electrode. Critically, the measurement must exclude the IR drop — the voltage drop through the soil caused by current flow — which otherwise makes protection appear better than it is. This is normally achieved by synchronously interrupting all CP current sources and taking an "instant-off" reading before depolarisation begins. An alternative criterion, used where achieving −850 mV is impractical, is demonstrating 100 mV of cathodic polarisation. Note that different criteria apply to stainless steels, duplex, and non-ferrous materials.

Q: Can cathodic protection be overdone?
A: Yes. Cathodic protection has an upper limit as well as a lower one. Potentials more negative than roughly −1,100 to −1,200 mV relative to a copper/copper sulphate electrode generate hydrogen at the steel surface. This causes two problems: hydrogen and hydroxide accumulating beneath the coating drive cathodic disbondment, progressively separating the coating from the steel; and in high-strength steels, absorbed hydrogen can cause hydrogen embrittlement and cracking. Turning a rectifier up "to be safe" is therefore a genuine error rather than harmless caution. Protection should be maintained within the correct band, verified by instant-off potential measurement, and rectifier output adjusted as coating condition changes over the structure's life.

Q: Does cathodic protection replace pipeline coating?
A: No — the two work together, and coating does most of the work. A well-coated pipeline exposes only a small fraction of a percent of its steel surface to the electrolyte, so the cathodic protection system only needs to protect those coating defects. Current demand is therefore dominated by coating quality: a bare or poorly coated structure may require orders of magnitude more current than a well-coated one, meaning more anodes, larger rectifiers, higher operating cost, and much greater risk of stray-current interference with neighbouring structures. Specifying a large CP system to compensate for cheap coating is poor economics and poor engineering. The correct approach is a high-quality coating as the primary barrier with CP sized to protect its defects.

Q: What are CIPS and DCVG surveys?
A: CIPS (Close Interval Potential Survey, also CIS) and DCVG (Direct Current Voltage Gradient) are complementary indirect survey techniques for buried pipelines. CIPS takes structure-to-soil potential measurements at close spacing, typically every metre along the entire line, with CP current synchronously interrupted, producing a continuous protection profile that identifies under-protected sections. DCVG measures voltage gradients in the soil above the pipeline to detect and size coating defects. Together they answer two different questions: CIPS shows where protection is inadequate, while DCVG shows where the coating is damaged. Their findings are often correlated with inline inspection data to prioritise which locations warrant excavation and repair.
