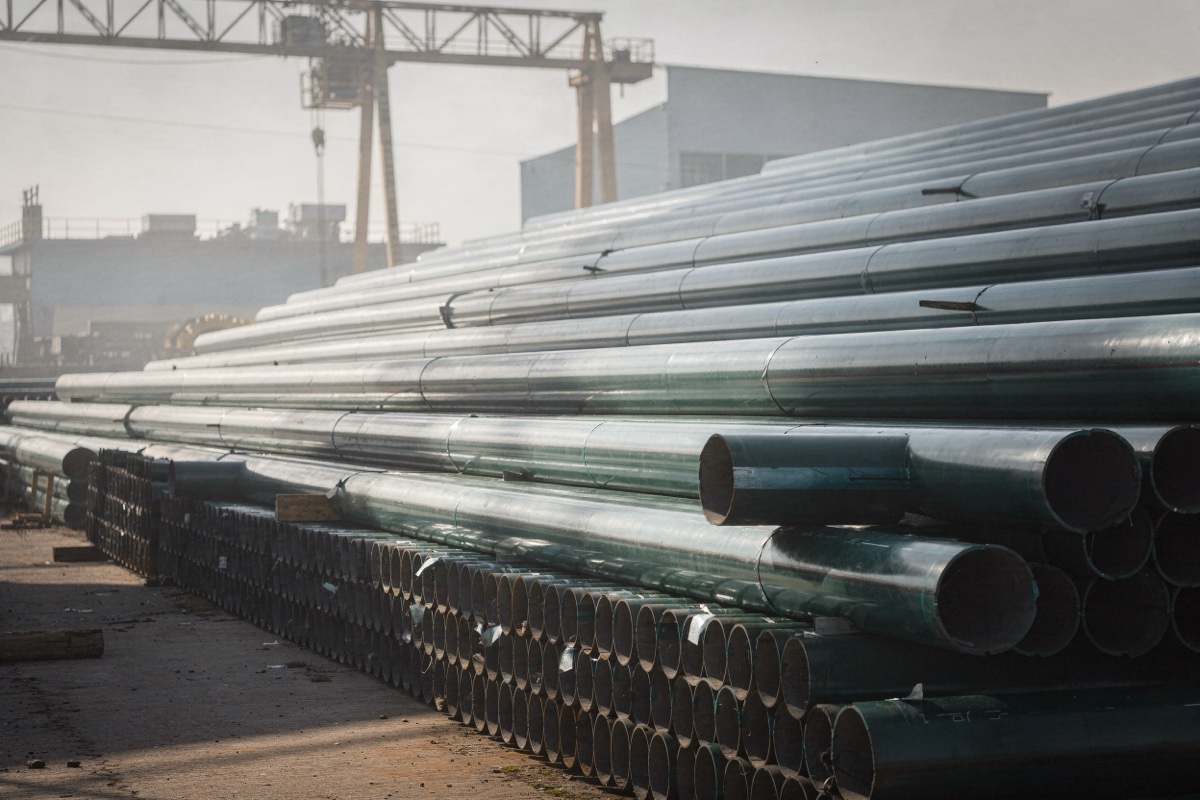

Pipeline Coatings: 3LPE, FBE & Field Joint Selection Guide

Quick Answer

External pipeline coating is the primary barrier against soil-side and subsea corrosion, with cathodic protection acting as the secondary defence for the small areas the coating inevitably fails to cover. The dominant systems are: FBE (fusion bonded epoxy) — a single-layer thermoset powder applied electrostatically to preheated pipe, giving excellent adhesion and cathodic disbondment resistance, typically 350–500 µm thick, generally rated to around 80–110°C depending on grade; 3LPE (three-layer polyethylene) — an FBE primer, a copolymer adhesive, and a polyethylene topcoat, combining FBE's adhesion with PE's mechanical and moisture protection, typically 1.8–3.0 mm total and rated to roughly 80°C; and 3LPP (three-layer polypropylene), the same architecture with a polypropylene topcoat for higher temperatures, typically to around 110–140°C. Selection is driven by design temperature, soil stress and mechanical handling, moisture, and whether the pipeline is buried, subsea, or directionally drilled. The most common cause of pipeline coating failure is not the coating system but the surface preparation — near-white blast to Sa 2½ with a controlled anchor profile and salt-contamination limits — and the field joints, which are applied on site in uncontrolled conditions and are consistently the weakest 2% of any pipeline's corrosion protection.

A buried pipeline is a steel structure placed permanently in a wet, oxygenated, often chloride-bearing electrolyte, with no possibility of routine inspection. Everything about its corrosion protection has to work for decades without intervention, and the coating is the component that does most of that work. Cathodic protection exists to handle what the coating misses — not to substitute for it.

Which is why coating failures are expensive in a way that few other material failures are. A coating defect on a buried line is invisible, progresses slowly, and is typically discovered either by an intelligent pig run years later or by a leak. Excavating to repair it costs orders of magnitude more than the coating cost per metre.

Two things cause the great majority of those failures, and neither is the coating chemistry. The first is surface preparation — coating applied over inadequate blast profile, residual mill scale, or soluble salt contamination will disbond regardless of how good the product is. The second is field joints: the coating applied at the weld after the pipe leaves the coating plant, in a trench, in weather, by a crew under schedule pressure. Field joints are typically 2% of the pipeline surface and a far higher proportion of its coating failures.

For pipeline engineers, project teams, and procurement managers — this guide covers external pipeline coatings: the main systems and their limits, surface preparation, field joint options, testing, and how to select.

For the pipe itself, see API 5L Line Pipe and Carbon Steel Pipe.

What a Pipeline Coating Has to Do

A coating system must simultaneously:

1. Isolate steel from the electrolyte — a continuous dielectric barrier
2. Adhere permanently — including under cathodic protection current, which generates hydroxide at the steel surface and drives disbondment at any weakness
3. Resist mechanical damage — backfill impact, soil stress, rock, handling, and the drag loads of directional drilling or reeling
4. Resist moisture and cathodic disbondment over the design life
5. Withstand operating temperature including upsets
6. Be repairable in the field

The critical property that separates good systems from poor ones is cathodic disbondment resistance — the tendency of a coating to lose adhesion around a defect when CP current is applied. A coating with poor CD resistance shields the steel from CP current while allowing water underneath, producing corrosion the CP system cannot address. This is the failure mode that makes some older tape systems problematic.

The Main Coating Systems

FBE — Fusion Bonded Epoxy

A thermosetting epoxy powder applied electrostatically to pipe preheated to around 230–250°C, where it melts, flows, and cures into a continuous film.

• Typical thickness: 350–500 µm (single layer)
• Temperature rating: approximately 80–110°C depending on grade
• Strengths: outstanding adhesion to steel, excellent cathodic disbondment resistance, thin profile, easy to repair, does not shield CP current
• Weaknesses: limited mechanical protection — vulnerable to handling damage, rock impingement, and soil stress; UV sensitive during storage
• Dual-layer FBE (DLFBE) adds an abrasion-resistant outer layer for directional drilling and rocky terrain

Use for: buried onshore pipelines in non-aggressive soils, plant piping, and as the primer layer in multi-layer systems. Widely favoured in North American practice.

3LPE — Three-Layer Polyethylene

The dominant system for major transmission pipelines internationally.

Layer structure:

1. FBE primer (~150–300 µm) — adhesion and corrosion protection
2. Copolymer adhesive (~200–300 µm) — bonds FBE to PE
3. Polyethylene topcoat (~1.5–2.5 mm) — mechanical and moisture barrier

• Total thickness: typically 1.8–3.0 mm
• Temperature rating: approximately 80°C continuous (some grades to 85°C)
• Strengths: combines FBE's adhesion with PE's toughness and very low water permeability; excellent mechanical protection; long track record
• Weaknesses: temperature-limited; thicker profile; if the PE is damaged and water tracks beneath it, PE can shield CP current

Use for: buried transmission pipelines, most oil and gas trunk lines, and the default specification across the Middle East, North Africa, Central Asia, and Europe.

3LPP — Three-Layer Polypropylene

The same three-layer architecture with polypropylene replacing polyethylene.

• Temperature rating: approximately 110–140°C
• Strengths: higher temperature capability, greater hardness and abrasion resistance, better for deep burial and subsea
• Weaknesses: higher cost; less flexible at low temperature

Use for: hot service lines, subsea pipelines, and where operating temperature exceeds 3LPE limits.

Liquid Epoxy and Polyurethane

Two-component liquid systems applied by spray, either in-plant or in the field.

• Used for field joints, repairs, fittings, bends, valves, and irregular geometry
• Suitable where powder application is impractical
• Quality is highly dependent on application conditions and applicator skill

Coal Tar Enamel and Tape Systems

Older technologies still found on legacy lines.

• Coal tar enamel — long service history, but health and environmental concerns have largely displaced it
• Cold-applied tapes — cheap and simple, but prone to disbondment and CP shielding, which is why most modern specifications restrict them to minor repairs rather than mainline use

Concrete Weight Coating

Not a corrosion coating — applied over the anticorrosion system on subsea lines to provide negative buoyancy and mechanical protection.

System Comparison

Surface Preparation — Where Coatings Actually Fail

No coating performs better than the surface beneath it.

The requirements:

• Abrasive blast cleaning to Sa 2½ (near-white metal) per ISO 8501-1, removing mill scale, rust, and contaminants
• Anchor profile typically 50–100 µm, controlled and verified — too shallow gives poor mechanical adhesion, too deep leaves peaks that protrude through thin coatings
• Soluble salt testing — chloride contamination beneath a coating draws moisture osmotically and causes blistering. Limits are typically very low (often 2–20 mg/m² depending on specification)
• Dust and residue removal after blasting
• Surface temperature at least 3°C above dew point during application, verified continuously
• Application within the specified window after blasting, before flash rust forms

Practical reality: in a coating plant these conditions are controlled. In the field they are not, which is precisely why field joints underperform mainline coating.

Field Joints — The Weak Link

After welding, the coating cutback at each joint must be coated on site. Typically 2% of the pipeline surface, and a disproportionate share of coating failures.

Common field joint systems:

Heat shrink sleeves — a crosslinked polyolefin sleeve with adhesive, shrunk over the joint with a torch. Most common for 3LPE pipelines.

• Fast, no cure time
• Quality depends heavily on preheat, surface prep, and installer technique
• Modern high-performance sleeves include an epoxy primer applied before the sleeve, greatly improving CD resistance

Liquid epoxy / polyurethane — spray or hand-applied two-component coatings.

• Good adhesion and CD resistance
• Cure time and temperature sensitivity
• Suits complex geometry

Field-applied FBE — induction heating and powder application on site.

• Highest quality field joint, matching mainline properties
• Requires specialised equipment and skilled crews
• Used on high-value and critical lines

Cold-applied tape — cheap and quick, but the poorest performer on CD resistance and disbondment; increasingly restricted.

The rule: the field joint should be at least as good as the mainline coating, not merely something applied to cover the weld. Specify the joint system with the same rigour as the mainline system, and require qualified applicators with documented procedures.

Testing and Quality Control

In-plant:

• Surface profile and salt testing before coating
• Holiday (spark) detection — a high-voltage probe traverses the full coated surface to find pinholes and discontinuities; every defect is repaired and retested
• Thickness measurement
• Adhesion testing (peel or pull-off)
• Cathodic disbondment testing — the key performance test
• Impact and indentation testing
• Hot water soak / hydrothermal testing

Field:

• Holiday detection over field joints and any handling damage
• Jeepering the full line before backfill — the last opportunity to find damage
• Post-backfill indirect surveys (DCVG, CIPS) to locate coating defects in service

Governing standards include ISO 21809 (external coatings for buried and submerged pipelines), NACE/AMPP standards, CSA Z245.20/21, and DIN 30670 for PE coatings.

Selection Process

1. Design and maximum operating temperature — including upsets. This is usually the first discriminator: above ~80°C, 3LPE is out
2. Environment — buried, subsea, above ground, directionally drilled, rocky or aggressive soil
3. Mechanical exposure — backfill type, rock, soil stress, reeling or pull-through loads
4. Cathodic protection compatibility — CD resistance and CP shielding behaviour
5. Pipe diameter and geometry — plant capability for the required diameter range
6. Field joint system — matched to the mainline coating
7. Repairability — for the operating life
8. Standards — project specification and applicable ISO/NACE/CSA requirements

Common Specification Mistakes

After 15+ years supplying line pipe and pipeline materials:

Mistake 1: Specifying 3LPE Above Its Temperature Limit

3LPE selected for a line running at 90°C. Adhesion degrades, the PE softens, and disbondment follows.

Prevention: Confirm maximum operating temperature including upsets. Above roughly 80°C, specify 3LPP or a high-temperature FBE grade.

Mistake 2: Treating Field Joints as an Afterthought

Premium 3LPE mainline coating paired with cheap cold-applied tape at the joints. Failures concentrate at the joints.

Prevention: Specify the field joint system to match mainline performance, with qualified applicators and documented procedures.

Mistake 3: Ignoring Soluble Salt Contamination

Blast profile achieved but salt contamination not tested. Osmotic blistering develops within a few years.

Prevention: Require soluble salt testing with defined limits before coating, and record results.

Mistake 4: Coating Below Dew Point Margin

Application proceeds with steel temperature too close to dew point. Condensation under the coating causes adhesion failure.

Prevention: Enforce the 3°C above dew point rule with continuous monitoring, in plant and field.

Mistake 5: Using CP-Shielding Coatings

Tape or thick PE systems that disbond and then shield the steel from cathodic protection current. Corrosion proceeds beneath a coating the CP survey shows as protected.

Prevention: Specify systems with proven CD resistance that do not shield CP. Restrict tapes to minor repairs.

Mistake 6: No Holiday Test Before Backfill

Line lowered in and backfilled without a final jeeper survey. Handling damage is buried undetected.

Prevention: Mandate full holiday detection immediately before lowering-in, as a hold point.

Mistake 7: Inadequate Coating for HDD

Standard FBE or 3LPE used for a horizontal directional drill pull. Abrasion strips the coating during pull-through.

Prevention: Specify dual-layer FBE or an abrasion-resistant overlay for HDD, bored, and rocky sections.

Supply from Kasko Makine

Kasko Makine supplies coated line pipe, coating materials, and pipeline components for oil, gas, water, and infrastructure projects:

Coated line pipe:

• API 5L PSL1/PSL2 line pipe, grades B through X70 — see API 5L Line Pipe
• 3LPE coated pipe
• 3LPP coated pipe for higher temperature service
• FBE and dual-layer FBE coated pipe
• Internal flow coating and internal epoxy lining
• Concrete weight coating for subsea (through partners)
• Seamless, ERW, LSAW, and SSAW pipe — see Seamless vs Welded Pipe

Field joint materials:

• Heat shrink sleeves with epoxy primer
• Liquid epoxy and polyurethane field joint systems
• Repair patches and filler mastics
• Holiday detectors and inspection equipment

Related pipeline materials:

• Bends, fittings, and induction bends (coated to match)
• Flanges, valves, and insulating joints
• Cathodic protection components — see Cathodic Protection
• Casing spacers and end seals
• Pipeline markers and warning tape

Certification supplied:

• Coating application records with surface preparation, profile, salt test, dew point, and thickness data
• Holiday test records for every joint
• Adhesion and cathodic disbondment test reports
• EN 10204 Type 3.1/3.2 material test certificates for the pipe
• Coating qualification test reports per ISO 21809 or project standard
• Third-party inspection (Bureau Veritas, SGS, TÜV, Lloyd's) available

Engineering support:

• Coating system selection against temperature, soil, and mechanical exposure
• Field joint system matching
• CP compatibility review
• HDD and special-section coating specification
• Coating specification review

Logistics: Coated line pipe shipped from Istanbul to projects across Africa, the Middle East, Central Asia, and beyond. Standard coated pipe 8-16 weeks; large diameter and specialty coatings 14-24 weeks. Coated pipe requires end protection and careful handling — we supply with appropriate protection and handling guidance.

Need coated line pipe or field joint materials? Send us the pipe specification (grade, diameter, wall thickness), quantity, maximum operating temperature, installation method (buried, subsea, HDD), soil or environment description, and required coating standard to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We'll recommend the coating system and matching field joint solution, and provide a quotation with full certification within 48 hours.

Continue Reading: Pipeline Guides

• API 5L Line Pipe — Pipeline pipe specifications
• Carbon Steel Pipe — Grades and standards
• Cathodic Protection — The secondary corrosion defence
• Corrosion Under Insulation — Above-ground coating protection
• NACE MR0175 Sour Service — Sour service materials
• Oil & Gas Piping Supply — Complete piping supply

Frequently Asked Questions

Q: What is 3LPE pipeline coating?
A: 3LPE (three-layer polyethylene) is the dominant external coating system for major transmission pipelines. It consists of three layers applied in sequence: a fusion bonded epoxy primer of roughly 150–300 µm providing adhesion and corrosion protection directly to the steel; a copolymer adhesive layer of around 200–300 µm bonding the epoxy to the topcoat; and a polyethylene topcoat of about 1.5–2.5 mm providing mechanical protection and a moisture barrier. Total thickness is typically 1.8–3.0 mm. The system combines FBE's excellent adhesion and cathodic disbondment resistance with polyethylene's toughness and very low water permeability. Its main limitation is temperature, with continuous service generally rated to around 80°C.

Q: What is the difference between FBE and 3LPE coating?
A: FBE (fusion bonded epoxy) is a single-layer thermosetting epoxy powder applied electrostatically to preheated pipe, typically 350–500 µm thick. It offers outstanding adhesion, excellent cathodic disbondment resistance, a thin profile, and easy field repair, but provides only moderate mechanical protection and is vulnerable to handling damage and rock impingement. 3LPE builds on FBE by adding a copolymer adhesive and a polyethylene topcoat, reaching 1.8–3.0 mm total. This gives far better mechanical and moisture protection, making 3LPE the standard for buried transmission pipelines, while FBE remains common for plant piping, non-aggressive soils, and as the primer within multi-layer systems. Dual-layer FBE bridges the gap for rocky terrain and directional drilling.

Q: What is cathodic disbondment resistance?
A: Cathodic disbondment resistance measures a coating's tendency to lose adhesion around a defect when cathodic protection current is applied. Because CP generates hydroxide ions at the steel surface, a coating with weak adhesion will progressively disbond outward from any holiday. The consequence is serious: a disbonded coating that allows water underneath while also shielding the steel from CP current creates conditions where corrosion proceeds unchecked and the CP survey still reads as protected. FBE and FBE-primed systems such as 3LPE perform well on cathodic disbondment testing, which is why they dominate modern specifications, while older cold-applied tape systems perform poorly and are increasingly restricted to minor repairs.

Q: Why do pipeline field joints fail more often than mainline coating?
A: Field joints are the coating applied on site at each weld after the pipe leaves the controlled environment of the coating plant. They typically represent about 2% of the pipeline surface but a far higher proportion of coating failures, because surface preparation, temperature, dew point control, and application quality are all harder to control in a trench, in weather, under schedule pressure. Prevention starts with specifying a field joint system matched to the mainline coating rather than a cheaper alternative — high-performance heat shrink sleeves with an epoxy primer, liquid epoxy systems, or field-applied FBE for critical lines — and requiring qualified applicators, documented procedures, and holiday testing of every joint.

Q: What surface preparation is required for pipeline coating?
A: Surface preparation determines coating performance more than the coating product itself. Requirements typically include abrasive blast cleaning to Sa 2½ near-white metal per ISO 8501-1, removing all mill scale, rust, and contaminants; a controlled and verified anchor profile of roughly 50–100 µm, since too shallow gives poor mechanical adhesion while too deep leaves peaks protruding through thin coatings; soluble salt testing to very low limits, because chloride contamination beneath a coating draws moisture osmotically and causes blistering; removal of dust and blast residue; and maintaining steel surface temperature at least 3°C above dew point throughout application, verified continuously. Coating must also be applied within the specified time window after blasting, before flash rust forms.

Q: What is a holiday test on pipeline coating?
A: A holiday test, also called spark testing or jeepering, uses a high-voltage probe traversed across the entire coated surface to detect pinholes, discontinuities, and thin spots invisible to the eye. When the probe passes over a defect, current arcs to the steel and an alarm sounds, allowing the defect to be marked, repaired, and retested. Holiday testing is performed in the coating plant on every length of pipe, on every field joint after application, and — critically — on the complete line immediately before lowering-in and backfill, which is the last opportunity to find handling and transport damage. Skipping the pre-backfill survey buries defects that will only be found years later by inline inspection or by a leak.
