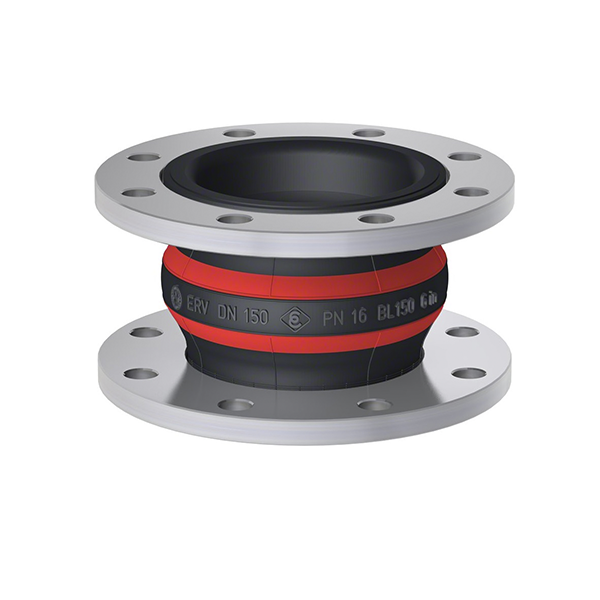

EPDM Rubber Expansion Joint
EPDM rubber expansion joints used to absorb multi-directional movement, vibration, and thermal expansion in piping and ducting systems. Reinforced with nylon cords for strength, suitable for outdoor applications and resistance to diluted acids, bases, UV rays, and weathering.
Overview
EPDM rubber expansion joints are flexible connectors used in piping and ducting systems to absorb movement caused by temperature changes and flowing media. Their elastic structure helps protect pipelines and surrounding structures from stress, vibration, and damage.
Design & Construction
- Flexible EPDM rubber bellows
- Reinforced with nylon cords to increase strength and pressure resistance
- Highly flexible structure allowing movement in all directions
Movement & Vibration Absorption
- Absorbs axial, lateral, and angular movements
- Excellent vibration and noise absorption
- Relieves thermal expansion and contraction stresses
Material Characteristics (EPDM)
- Operating temperature range up to approximately 110–130 °C
- Resistant to diluted acids and bases
- Excellent resistance to UV rays and weathering
- Suitable for outdoor installations
Operating Principle
Continuous temperature variations and the composition of fluids or gases inside the system cause constant movement. EPDM rubber expansion joints absorb this movement, preventing pipes or ducts from pulling apart, buckling, or leaking.
Applications
- Piping systems subject to thermal expansion and contraction
- HVAC and ducting systems
- Water and wastewater pipelines
- Industrial process piping
- Outdoor piping and duct installations
Key Advantages
- Multi-directional movement absorption
- Effective vibration reduction
- Protection against pipe damage and leakage
- Reduced maintenance and replacement costs
- Long service life under varying environmental conditions
