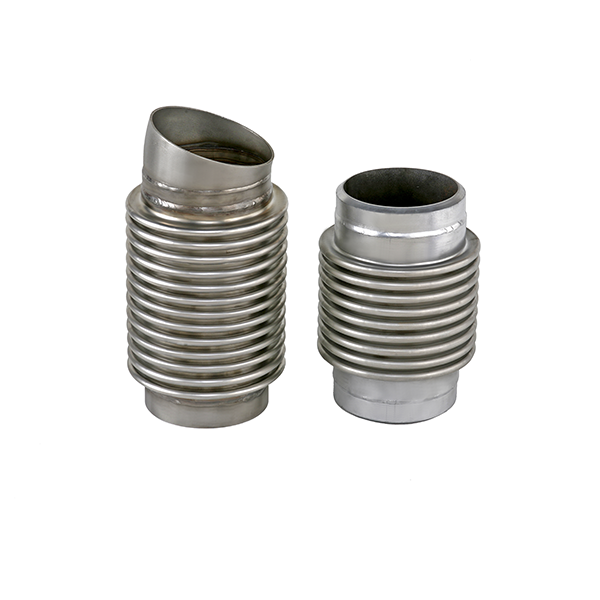

Well End Type
Well End Type expansion joints are designed with plain (weld-end) connections to provide reliable absorption of thermal expansion, vibration, and axial movement in piping systems. This type ensures a strong, leak-tight welded connection, making it suitable for high-pressure and high-temperature industrial applications.
Overview
Well End Type expansion joints feature plain pipe ends designed for direct welding into piping systems. This connection method provides maximum strength and leak-tightness, making it ideal for permanent installations where flanged or grooved connections are not preferred.
Design & Construction
- Plain (weld-end) pipe connections
- Metal bellows designed to absorb axial movement
- Compact and robust construction
- Suitable for high-pressure and high-temperature service
Movement Capability
- Absorbs axial thermal expansion and contraction
- Reduces vibration and mechanical stress
- Protects piping systems and connected equipment
Installation Method
- Installed by butt-welding directly into the pipeline
- Provides permanent, leak-free joints
- Recommended for systems where dismantling is not required
Applications
- Steam and hot water pipelines
- Oil and gas systems
- Power plants and energy facilities
- Chemical and petrochemical plants
- Industrial process piping
Key Advantages
- High structural strength due to welded connections
- Excellent leak-tight performance
- Suitable for high-pressure and high-temperature environments
- Long service life with minimal maintenance
- Compact design suitable for limited installation spaces
Functional Benefit
Well End Type expansion joints provide a dependable solution for managing thermal movement and vibration in demanding piping systems, ensuring operational safety and extended system life.
