Dowel Bars: The Complete Guide to Specifications, Sizes, Materials & Selection

A dowel bar is the smallest, simplest component in a concrete pavement — and one of the most consequential. Get the specification right and your highway, runway, or industrial floor lasts 30 to 50 years. Get it wrong, and joint faulting, corner cracking, and pavement failure show up within 5 to 10 years. The bars cost a few dollars each. The pavement costs millions. The leverage is enormous.

For projects across Africa, the Middle East, and Central Asia — where new highways, airports, container terminals, and industrial facilities are being built at unprecedented scale — dowel bars are now mandatory specification in every jointed plain concrete pavement (JPCP) design. But "dowel bar" covers a wide range of materials, coatings, sizes, standards, and installation methods. Specifying the wrong one wastes budget. Specifying nothing at all is far worse.

This guide is the comprehensive resource for dowel bar buyers, specifiers, and project engineers. It covers what dowel bars do, the international standards that govern them, the sizes for every slab thickness, the four coating options compared, the two installation methods, and how to order them correctly. Each section links to a deeper guide on that specific topic — but everything you need to make an informed procurement decision is here.

What Is a Dowel Bar?

A dowel bar is a smooth, plain round steel bar installed horizontally across transverse contraction joints in concrete pavement. Half the bar is embedded in one slab; the other half extends into the adjacent slab. When a wheel load passes over the joint, the dowel bar transfers a portion of the vertical load from the loaded slab to the unloaded slab — preventing differential deflection, eliminating joint faulting, and dramatically extending pavement service life.

Dowel bars do not prevent the joint from opening and closing. Concrete contracts as it cures, and slabs expand and contract with seasonal temperature changes. The dowel bar's smooth surface and a bond breaker on one half of the bar allow the joint to move horizontally while preventing vertical or lateral displacement.

This is the critical distinction that separates dowel bars from tie bars (covered in detail in our dowel bar vs tie bar comparison post). Dowel bars enable joint movement while transferring load. Tie bars hold joints together and prevent them from moving.

Why Dowel Bars Matter — The FHWA Numbers

Federal Highway Administration (FHWA) and Portland Cement Association studies have established that properly designed and installed dowel bars deliver:

• Load transfer efficiency (LTE) of 85–95% at transverse joints, compared to less than 50% for undoweled joints relying only on aggregate interlock.

• Pavement service life extension of 2–3× under equivalent traffic loading compared to undoweled pavement.

• Joint faulting prevention — without dowels, faulting (vertical step between adjacent slabs) develops within 5–10 years of opening to traffic. With properly installed dowels, faulting is virtually eliminated for the design life of the pavement.

• Reduction of corner cracking — the differential deflection that propagates corner cracks is the same mechanism dowels eliminate.

For perspective: a kilometer of two-lane concrete highway in Africa might cost $400,000–$1,000,000 to construct. The dowel bars for that same kilometer cost $3,000–$5,000. The bars represent less than 1% of the construction cost but determine whether the pavement lasts 15 years or 50 years. No other component in a concrete pavement delivers this leverage.

How Dowel Bars Work: The Load Transfer Mechanism

When a heavy vehicle approaches a transverse joint in a concrete pavement, the loaded slab deflects downward as the wheel rolls onto it. Without dowel bars, the unloaded approach slab does not share this deflection — creating a step at the joint. This step generates impact loading every time a vehicle crosses, accelerating slab edge fatigue and pumping of fines from beneath the slab edge.

With dowel bars installed:

1. The wheel load deflects the loaded slab.

2. The dowel bar, embedded in both slabs, is forced to bend slightly as one slab moves down relative to the other.

3. The bending bar transmits a vertical shear force from the loaded slab to the adjacent slab.

4. The adjacent slab deflects partially in response, sharing the load.

5. Both slabs deflect together, eliminating the step at the joint.

The technical analysis is covered in detail in our dowel bar load transfer engineering guide, which walks through Friberg's pressure distribution analysis and the design formulas (Ld, Ps, Pf, Pb) that govern dowel diameter, length, and spacing decisions. For the buyer, the practical takeaway is simpler: properly sized dowel bars achieve 85%+ load transfer, and the standard sizing rules below give you the right size for your slab thickness.

International Standards Governing Dowel Bars

Different markets reference different standards. A dowel bar order specification must reference the correct standard for your project.

For most international projects in Africa, Middle East, and Central Asia: ASTM A1078 + AASHTO M254 is the most commonly referenced specification combination. UK-influenced markets (some African countries) may reference BS 4449. Indian-influenced markets may reference IS 6509. The ACPA M254-23 specification is becoming the comprehensive international reference.

A complete order specification looks like this:

Dowel bars per ASTM A1078, base steel ASTM A615 Grade 60, fusion-bonded epoxy coating per ASTM A775, holiday tested per ASTM G62.

For deeper coverage of standards and how they map to material grade, coating type, and acceptance testing, see our dowel bar specifications and standards guide.

Dowel Bar Sizing: The Slab Thickness Rule

The diameter of a dowel bar is determined by the thickness of the concrete slab. The general rule used worldwide is:

Dowel diameter (D) = Slab thickness (T) ÷ 8

This is the AASHO Road Test rule, validated by decades of field performance and incorporated into AASHTO, ACPA, and most international standards. The minimum diameter is 25mm (1 inch) regardless of slab thickness.

The complete sizing table:

The 32mm × 450mm dowel bar is the workhorse of highway construction. For 200–225mm thick slabs (which covers the majority of highway projects globally), this size handles the traffic loading with appropriate safety margin.

Spacing: The standard center-to-center spacing is 300mm (12 inches) across the transverse joint. A standard 3.5m traffic lane uses 11–12 dowels per joint. Airport runways and heavy industrial pavements may use tighter spacing (230–300mm) under critical wheel paths.

Edge distance: The outermost dowel must be a minimum of 150mm (6 inches) and a maximum of 450mm (18 inches) from the free edge of the pavement.

For complete sizing reference including imperial-metric conversions, dimensional tolerances, and sizing per IS 6509 (Indian Standard) and BS 4449 (British Standard), see our dowel bar sizes and specifications chart.

Dowel Bar Materials and Coatings: Four Options

Dowel bars are not just steel — they are steel plus a corrosion protection system. The base steel is almost always ASTM A615 Grade 60 plain round bar (smooth, hot-rolled). The coating is what determines service life, cost, and application suitability.

1. Fusion-Bonded Epoxy (FBE) Coated — ASTM A1078

The global standard for highway pavement dowel bars. A green powder epoxy is electrostatically applied to heated bars and cured to form a hard, impermeable coating 8–12 mil (200–300 micrometers) thick. Excellent corrosion protection in chloride environments (deicing salts, coastal exposure, contaminated groundwater). Cost-effective relative to alternatives.

Best for: Highway pavements, urban streets, parking areas, industrial floors. The default specification for 90%+ of pavement projects worldwide.

2. Hot-Dip Galvanized — ASTM A1094

The bar is dipped into molten zinc, creating a metallurgically bonded zinc layer. Provides good corrosion protection at moderate cost. Shorter service life than epoxy in chloride environments but adequate for many applications. Less common than epoxy globally but specified in some Middle East and Asia projects.

Best for: Hot/dry climate pavement (Saudi Arabia, UAE inland), industrial concrete floors, applications without heavy chloride exposure.

3. Stainless Steel (304 / 316 / 316LN) — ASTM A955

Highest corrosion resistance. The bar itself is stainless steel — not just coated. Service life of 75–100 years in aggressive environments. Significantly higher cost than epoxy or galvanized. Specified for marine and coastal exposure, critical infrastructure, and very long design life applications.

Best for: Coastal highways, bridge decks in marine environments, airport runways with priority on long service life, projects with 75+ year design life requirements.

4. FRP / GFRP (Fiber-Reinforced Polymer) — ASTM D7957

Glass fiber reinforced polymer dowel bars. Non-metallic — completely corrosion-proof. Electromagnetically transparent (essential for tolling areas, automated guided vehicles, magnetometer isolation pads). Lower modulus than steel but adequate stiffness for load transfer when correctly sized.

Best for: High-speed tolling areas, EM-sensitive zones, marine and chloride environments where stainless cost is prohibitive, salt-spray-prone canal and desalination input channels.

Coating Comparison Table

For the complete coating decision framework including ROI calculations, lifecycle cost analysis, and specific recommendations by climate zone, see our dowel bar materials and coatings comparison.

Two Methods to Install Dowel Bars

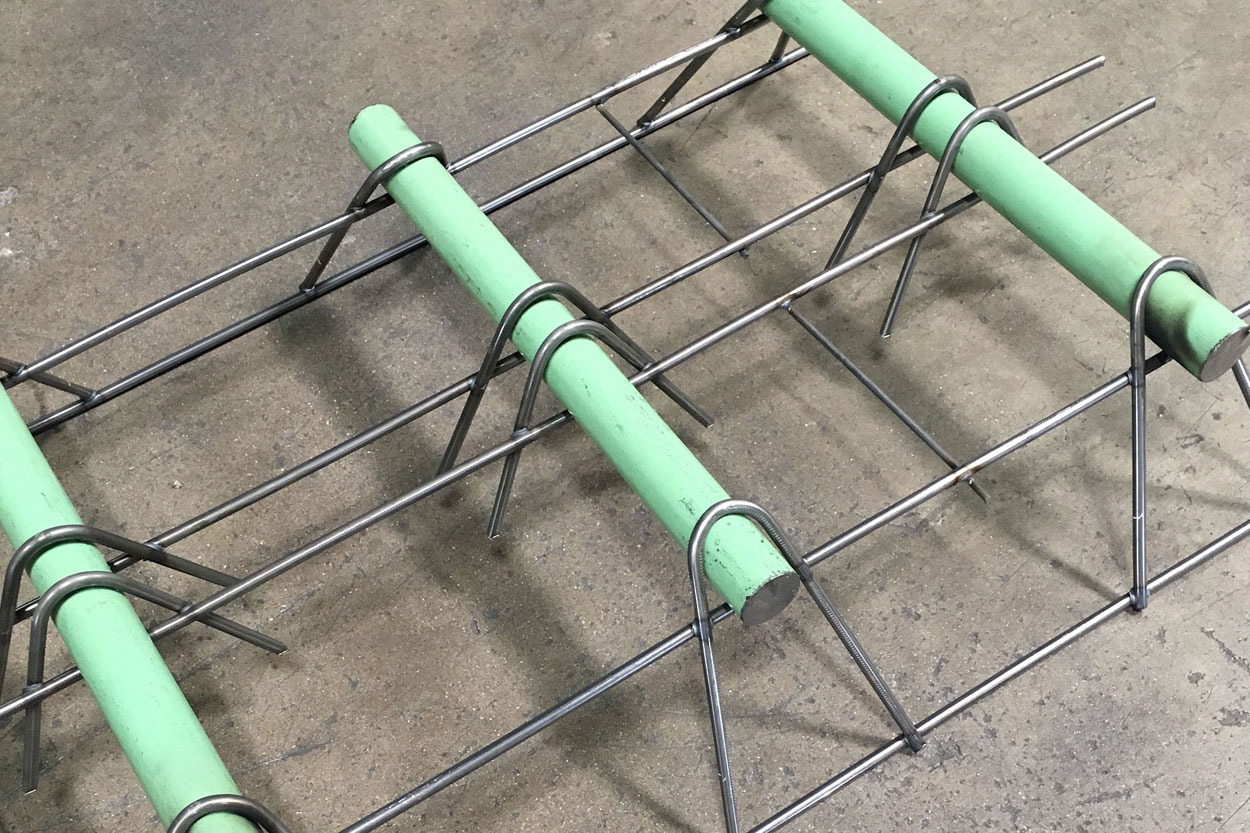

Method 1: Dowel Basket Assemblies (Pre-Placed)

Dowel bars are factory-welded into basket assemblies that hold them at the correct spacing, depth, and alignment. Baskets are placed on the prepared subbase before paving, anchored with steel pins to prevent movement, and the slipform paver pours concrete over the baskets. The basket frame remains in the pavement permanently — its only function is to hold the bars correctly during paving.

Standard basket dimensions: 12-foot or 14-foot lengths to match standard lane widths, with 11–14 dowel bars per basket.

Best for: Most highway and pavement applications. The traditional and most widely used method. Easier to inspect alignment before paving.

Method 2: Dowel Bar Inserter (DBI)

A specialized attachment on a slipform paver that automatically inserts dowel bars from a hopper into the wet concrete behind the paver's screed. The DBI vibrates the bars into position at the correct depth and spacing.

Best for: High-production highway paving where the speed and consistency of mechanical insertion outweighs the cost of the equipment. Increasingly common on major DOT and motorway projects.

Method 3: Drilled-In Dowels (Construction Joints and Retrofit)

For construction joints (planned end-of-day stops in continuous paving) and dowel bar retrofit (adding dowels to existing pavements), holes are drilled into the existing concrete, dowels are placed with epoxy or grout, and the joint is restored. This is a specialized installation discussed in detail in our dowel bar retrofit (DBR) guide.

For comprehensive coverage of installation methods, alignment tolerances per ACPA Guide Specification, MIT-DOWEL-SCAN testing per ASTM E3013, and best practices for on-site quality control, see our dowel bar installation guide.

For everything about basket design, sizes, anchoring methods, and basket-vs-DBI cost comparison, see our dowel basket guide.

Application Matrix: Which Specification for Which Project

Tie Bars: The Other Bar in Your Pavement

Tie bars are deformed (ribbed) steel bars placed across longitudinal joints between adjacent lanes. They serve a fundamentally different purpose from dowel bars:

• Dowel bars are smooth, placed in transverse joints, transfer load while allowing horizontal movement

• Tie bars are deformed, placed in longitudinal joints, hold lanes together and prevent separation

Tie bars are not load transfer devices — they're structural ties. Using a dowel bar in a longitudinal joint would let the lanes separate. Using a tie bar in a transverse joint would lock the joint and cause random cracking. The mistake is more common than you might think, and it's a costly one.

Most highway projects need both: dowel bars in every transverse contraction joint, and tie bars in every longitudinal joint between adjacent lanes. Specifying both correctly is essential.

For the complete comparison including sizes, spacing, materials, and which goes where, see our dowel bar vs tie bar guide.

Critical Quality Requirements for Dowel Bars

When ordering dowel bars, these quality requirements separate a reliable supplier from one that creates problems:

1. Material Test Certificate (MTC)

EN 10204 Type 3.1 mill test certificate showing:

• Heat number (traceability)

• Chemical composition (carbon, manganese, phosphorus, sulfur)

• Mechanical properties (yield, tensile, elongation)

• Conformance to ASTM A615 Grade 60 or specified standard

2. Coating Certificate

For epoxy-coated dowels per ASTM A1078:

• Coating thickness measurements (8–12 mil per ASTM A775)

• Holiday test results (ASTM G62 — maximum 3 holidays per meter)

• Coating adhesion test

• Coating cure verification

3. Dimensional Verification

• Diameter tolerance: ±0.4mm typical

• Length tolerance: ±5mm typical

• Straightness: ±3mm per meter maximum

• End preparation: saw-cut, square ends (not sheared or jagged)

• Cut ends repaired with epoxy patching compound (for epoxy-coated)

4. Surface and Coating Quality

• No visible coating defects, perforations, or cracks

• No oil, grease, or contamination on surface

• Bond breaker pre-applied (where specified) to one half of bar

• Bundled with protective banding to prevent coating damage during shipping

5. Packaging

• Bundled in lots of 50 or 100 bars

• Banded with non-metallic strapping (or cushioned metal bands)

• Wood or plastic separators where required

• Marked with heat number, size, and quantity

A supplier who cannot provide complete documentation should not be specified for any project. Documentation is what protects the project owner during the design life of the pavement — without an MTC, you have no proof that the bars actually meet the specification.

For the complete supplier evaluation framework, documentation checklist, and procurement workflow, see our dowel bar supplier and procurement guide.

How to Order Dowel Bars

A complete dowel bar purchase order specifies:

1. Standard: ASTM A1078 (most common international) or AASHTO M254 or ACPA M254-23

2. Base material: ASTM A615 Grade 60 (or AASHTO M227 Grade 70/80)

3. Coating: Fusion-bonded epoxy (per ASTM A775), hot-dip galvanized (per ASTM A1094), stainless steel (per ASTM A955), or FRP (per ASTM D7957)

4. Coating thickness (for epoxy): Minimum 8 mil (200 μm) — specify range if required

5. Diameter: 25mm, 28mm, 32mm, 36mm, 38mm, or 40mm (or imperial sizes)

6. Length: Standard 350mm, 400mm, 450mm, 500mm — or custom length

7. End treatment: Saw-cut square ends, with epoxy patch repair on cut ends (for epoxy-coated)

8. Bond breaker: Pre-applied or none

9. Packaging: Bundled in lots of 50 or 100 bars with banding and separators

10. Quantity: Total pieces by diameter/length combination

11. Documentation: EN 10204 Type 3.1 MTC, coating certification, holiday test results

Example order:

10,000 pcs — Epoxy coated dowel bars, 32mm diameter × 450mm long, ASTM A615 Grade 60 base material, fusion-bonded epoxy coating 8–12 mil per ASTM A1078, saw-cut square ends with epoxy patch repair on cut ends, packaged in bundles of 50 with non-metallic strapping, with EN 10204 Type 3.1 mill test certificates, ASTM A775 coating certification, and ASTM G62 holiday test results.

For typical highway project quantities, document templates, country-specific procurement notes, and how to evaluate suppliers, see our dowel bar supplier and sourcing guide.

Common Dowel Bar Specification Mistakes

After 15+ years supplying dowel bars to highway and pavement projects, these are the most common errors that create problems on site:

1. Specifying deformed rebar instead of plain round bar. Dowel bars must be smooth (plain round) to allow joint movement. Specifying a deformed bar instead would lock the joint and cause random cracking. This is the single most common procurement mistake — the buyer assumes "rebar is rebar" and orders deformed bar from their usual supplier.

2. Ignoring coating thickness specification. "Epoxy coated" without thickness specification can mean 4 mil instead of 8 mil. Always specify minimum 8 mil per ASTM A1078.

3. Specifying galvanized for highway service in wet, salty climates. Galvanized provides good corrosion protection but its service life in chloride-laden environments is significantly shorter than epoxy. Galvanized is appropriate for hot/dry climates, not for highway service in regions with deicing salts or marine influence.

4. Wrong length for the application. Dowel bars must extend at least 200mm into each slab. A bar too short reduces load transfer; a bar too long is wasted material. Standard 450mm length covers most highway applications correctly.

5. Missing bond breaker. A bond breaker must be applied to one half of the dowel bar to prevent the concrete from bonding to that half. Without a bond breaker, the joint cannot open and close — and random cracks develop in the slab. Some suppliers provide pre-applied bond breaker; others leave this to the contractor on site. Specify clearly which approach is used.

6. Confusing dowel bars with tie bars. This is the most expensive mistake — placing tie bars in transverse joints (causing random cracking) or dowel bars in longitudinal joints (causing lane separation). Both errors require slab demolition and replacement.

Why Order from Kasko Makine

Kasko Makine has supplied dowel bars to highway, airport, container terminal, and industrial concrete pavement projects across Africa, the Middle East, Central Asia, and Southeast Asia for over 15 years. We bring three things that matter to project procurement:

Complete material range. Epoxy coated, hot-dip galvanized, stainless steel (304, 316, 316LN), and FRP/GFRP — every coating type, every standard, every size. Plus tie bars, dowel basket assemblies, anchor bolts, and the steel plates and structural materials your project also needs. One supplier, complete material package.

Documentation discipline. Every shipment includes EN 10204 Type 3.1 mill test certificates, coating certification per ASTM A775/A1078, holiday test results per ASTM G62, dimensional reports, and packaging certificates. We do not ship without complete documentation. Third-party inspection (Bureau Veritas, SGS, TÜV, Lloyd's Register) is available on request.

Logistics that work. Materials are consolidated at our Istanbul warehouse, properly packaged with non-metallic strapping and separators to protect the coating, containerized, and shipped on the schedule the project needs. Standard sizes ship within 2–3 weeks. Custom sizes within 5–6 weeks. We deliver to project sites in Nigeria, Kenya, Ghana, Egypt, South Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Iraq, Jordan, Kazakhstan, Uzbekistan, and across the broader region.

Request dowel bar pricing — send us your diameter, length, coating type, quantity, and delivery location to info@kaskomakine.com or WhatsApp +90 (537) 521 1399. We respond within 24 hours with competitive pricing and a detailed delivery schedule.

Continue Reading: The Complete Dowel Bar Guide Series

This is the master guide to dowel bars. For deeper coverage of specific topics:

1. Epoxy Coated Dowel Bars: ASTM A1078 Specifications — Complete guide to FBE-coated dowel bars, the global highway standard

2. Dowel Bar Sizes & Diameter Chart — Comprehensive sizing reference for every slab thickness and standard

3. Dowel Bar vs Tie Bar: 8 Differences — Critical comparison preventing the most common pavement specification mistake

4. Dowel Baskets: Types & Installation — Complete guide to basket assemblies, anchoring, and pre-pour quality control

5. Epoxy vs Galvanized vs Stainless vs FRP Dowel Bars — Coating comparison with cost analysis and ROI for different climates

6. Dowel Bar Installation Guide — Methods, tolerances, MIT-DOWEL-SCAN testing, and quality control

7. Dowel Bar Retrofit (DBR) — Adding load transfer to existing pavements through retrofit

8. Dowel Bar Load Transfer Engineering — Friberg's analysis, design formulas, and LTE calculations

9. Dowel Bar Supplier & Procurement Guide — How to select suppliers, evaluate documentation, and order correctly

FAQ SCHEMA

Q: What is a dowel bar?
A: A dowel bar is a smooth, plain round steel bar installed horizontally across transverse joints in concrete pavement. It transfers vertical wheel loads from one slab to the adjacent slab — preventing joint faulting, eliminating differential deflection, and extending pavement service life by 2–3× compared to undoweled pavements. Dowel bars are typically 25–38mm in diameter and 350–500mm long, made from ASTM A615 Grade 60 plain round steel with fusion-bonded epoxy coating per ASTM A1078.

Q: What size dowel bar should I use?
A: The dowel bar diameter is selected based on the concrete slab thickness using the rule D = T/8. For a 200mm (8") slab, use 32mm (1-1/4") diameter dowels. For 250mm (10") slabs, use 38mm. The standard length is 450mm (18 inches) and standard spacing is 300mm (12 inches) center-to-center across the joint. Minimum diameter is 25mm regardless of slab thickness.

Q: What is the difference between a dowel bar and a tie bar?
A: Dowel bars are smooth round bars placed in transverse joints to transfer load between slabs while allowing the joint to open and close. Tie bars are deformed (ribbed) bars placed in longitudinal joints to hold adjacent lanes together and prevent separation. Dowel bars enable joint movement; tie bars prevent it. Using the wrong type in the wrong joint causes pavement failure.

Q: What is the standard for epoxy coated dowel bars?
A: ASTM A1078 (with ASTM A615 Grade 60 base material and ASTM A775 epoxy coating) is the primary international standard. AASHTO M254 is the equivalent US DOT specification. ACPA M254-23 is the comprehensive American Concrete Pavement Association specification covering all dowel bar types (epoxy, galvanized, stainless, FRP).

Q: How thick should the epoxy coating be on dowel bars?
A: The fusion-bonded epoxy coating thickness should be 8–12 mil (200–300 micrometers) per ASTM A775 / A1078. Coating must be free of holidays (pinholes), with maximum 3 holidays per meter when tested per ASTM G62. Minimum coating thickness of 8 mil should always be specified — without this minimum, suppliers may deliver bars with inadequate coating that corrode prematurely.

Q: How long do dowel bars last?
A: Service life depends on the coating and environment. Epoxy-coated dowel bars in highway service (with deicing salts) last 30–40 years. Hot-dip galvanized dowels in chloride environments last 15–25 years. Stainless steel dowel bars last 75–100+ years. FRP dowel bars are immune to corrosion and effectively last indefinitely. The right coating choice depends on climate, expected chloride exposure, and required pavement design life.

Q: How are dowel bars installed in concrete pavement?
A: Three methods. Most commonly, dowel bars are pre-assembled into basket assemblies that are placed on the prepared subbase before paving — the slipform paver pours concrete over the baskets. Alternatively, a Dowel Bar Inserter (DBI) attached to the slipform paver inserts bars automatically into the wet concrete. For construction joints and retrofit work, holes are drilled into existing concrete and dowels placed with epoxy.
